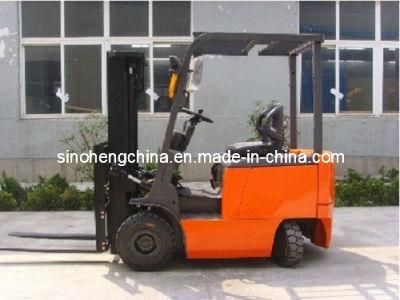

1.5 Ton Diesel Forklift Truck (CPCD15FR)

Jinan Sinoheng Import and Export Co., Ltd.
  • Cab Location：Not Adjustable
  • Type：Ordinary Combustion Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：CPCD15FR
  • Lift height：3000~5000mm
  • Condition：New
  • Load Capacity(T)：1500kg
  • Power Type：Diesel
  • Type of Power Shift：Tor-Non
  • Lifting Height：3000mm
  • Transport Package：Container, FCL,LCL
  • Specification：CE, ISO9001
  • Trademark：sinoheng
  • Origin：Shandong, China
  • Production Capacity：300PCS,Month

Description

Product NameDiesel Forklift TruckModelCPCD15FRLoad capacity (kg)1500Load center (mm)500Power typeDieselMax. lifting speeds ( with load )  mm/s500Max. driving speeds ( with/without load )  km/h14,5/15Max. towing ( with/without load )  kn14,4/8,4Gradeability (with/without load )  %15/20Lifting height (mm)3000Free lift (mm)70Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2000Min. right angle aisel width ( mm )1770Min. under-clearance (mm)110
DimensionOverall length (including fork)mm3195Overall width ( mm )1085Overall height (mast lowered )mm1995Overall height (mast extend )mm4030Overall height to overhead guard (mm)2085Fork overhang (mm)430Wheel base (mm)1450TreadFront tread (mm)890Rear tread (mm)920TyreFront tyre6,50-10-10Rear tyre5,00-8-10Total weight (kg)2650Fork width (mm)100Fork thickness (mm)35Backrest height (mm)1000Fork length (mm)920

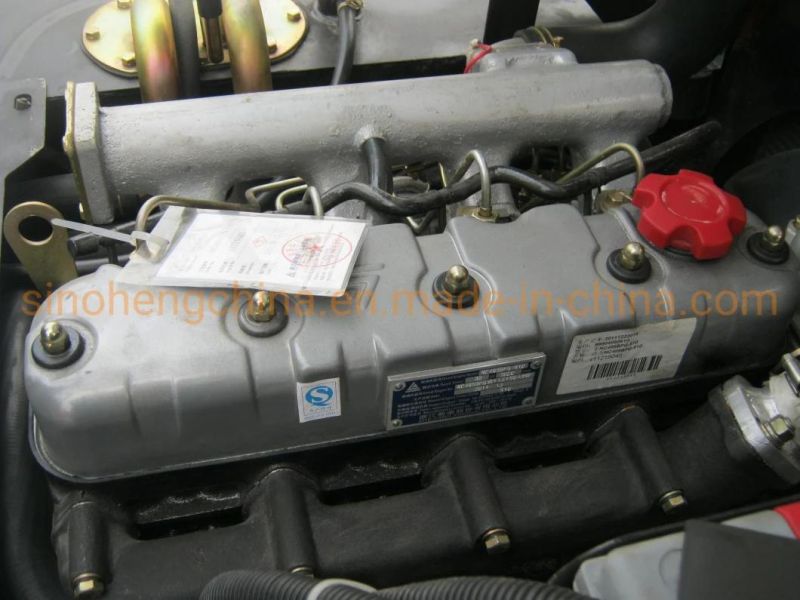

EngineEngine model485Rate power (KW)30Rotate speed at Rate power (rpm)2600Max. torque  (nm)131Rotate speed at max torque (rpm)1700Type of power shiftTor-non1.5 Ton Diesel Forklift Truck (CPCD15FR)1.5 Ton Diesel Forklift Truck (CPCD15FR)1.5 Ton Diesel Forklift Truck (CPCD15FR)
