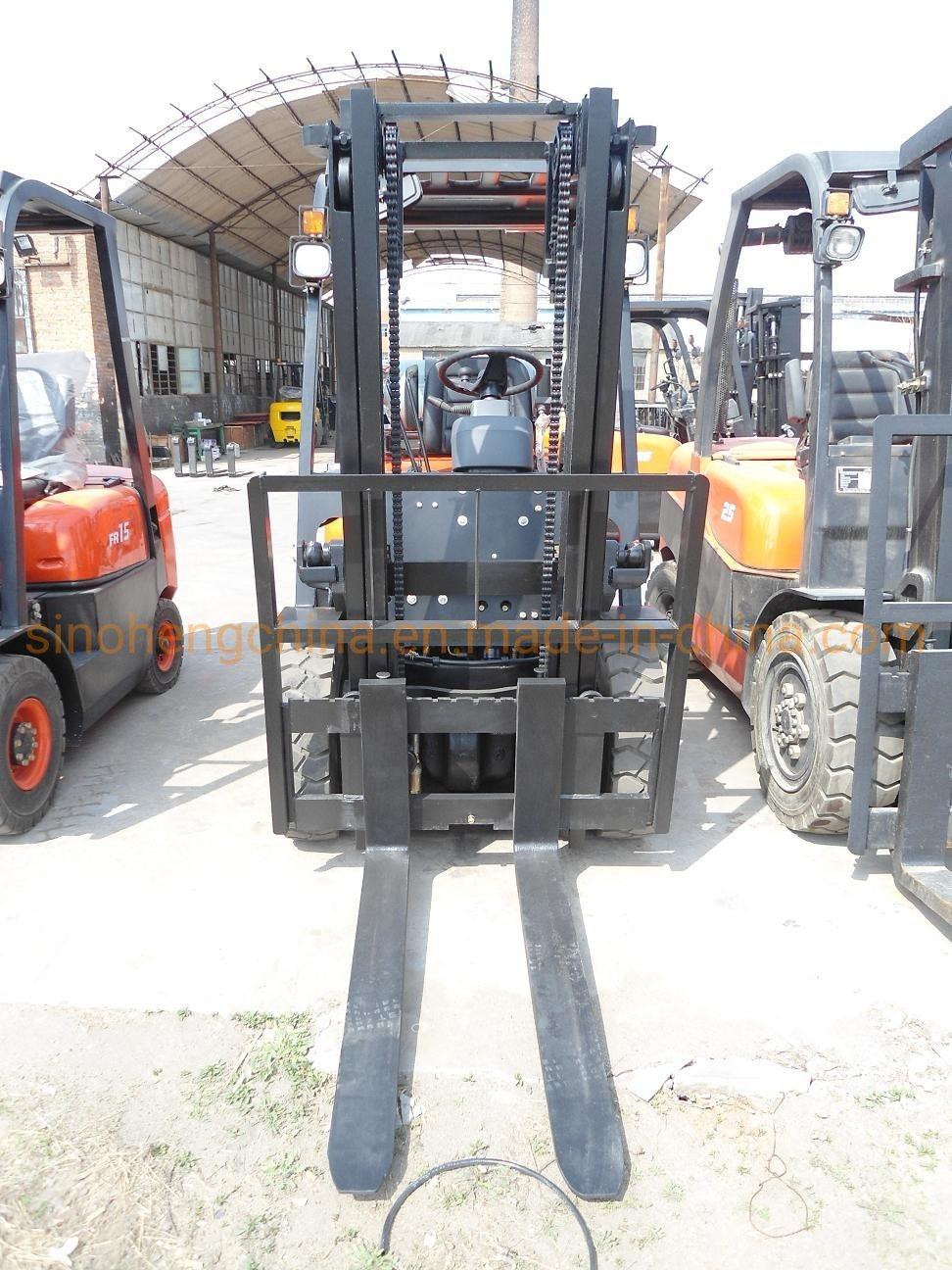

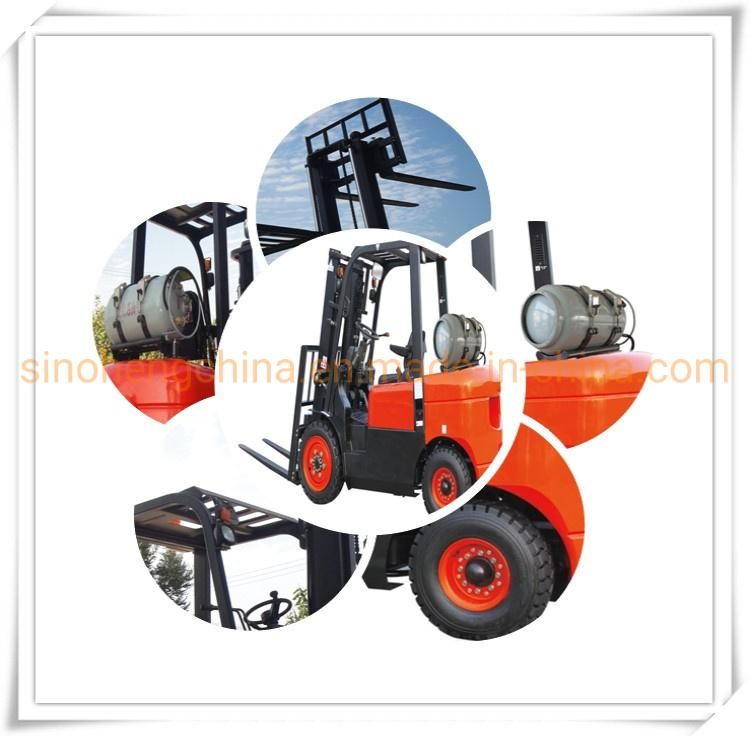

2.5 Ton Gasoline/LPG Powered Forklift
Jinan Sinoheng Import and Export Co., Ltd.- Cab Location:Not Adjustable
- Type:Powered Pallet Truck
- Power:LP Gas Engine
- Load Capacity:1T - 5T
- Fuel:Gasoline
- Load center:500mm
Base Info
- Model NO.:SH25FR
- Lift height:3000~5000mm
- Condition:New
- Load Capacity (T):2500
- Power Type:Gasoline,LPG
- Lifting Height:3000mm
- Free Lift:60mm
- Fork Length:1070
- Transport Package:Container, FCL,LCL
- Specification:CE
- Trademark:sinoheng
- Origin:Shandong, China
- Production Capacity:300PCS,Month
Description
Product NameCounterbalance Gasoline /LPG Powered Forklift Truck(FR series ) Model SH25FR Load capacity (kg) 2500 Load center (mm) 500 Power type Gasoline/LPG Max. lifting speeds ( with load ) mm/s 400 Max. driving speeds ( with/without load ) km/h 17/19 Max. towing ( with/without load ) kn 15/10 Gradeability (with/without load ) % 15/20 Lifting height (mm) 3000 Free lift (mm) 60 Tilting angles ( forward-backward ) ( .) 6/12 Min. turning radius (mm) 2450 Min. right angle aisel width ( mm ) 2050 Min. under-clearance (mm) 110
Dimension Overall length (including fork)mm 3605 Overall width ( mm ) 1160 Overall height (mast lowered )mm 2095 Overall height (mast extend )mm 4080 Overall height to overhead guard (mm) 2095 Fork overhang (mm) 451 Wheel base (mm) 1640 Tread Front tread (mm) 970 Rear tread (mm) 970 Tyre Front tyre 7,00-12 Rear tyre 6,00-9 Total weight (kg) 3600 Fork width (mm) 122 Fork thickness (mm) 40 Backrest height (mm) 1000 Fork length (mm) 1070
Engine Engine model MITSUBISHI 4G64-31ZG/CHINESE GQ4Y Rate power (KW) 37/36 Rotate speed at Rate power (rpm) 2650/2400 Max. torque (nm) ≥148 Rotate speed at max torque (rpm) 1800-1900 Type of power shift Tor-non
