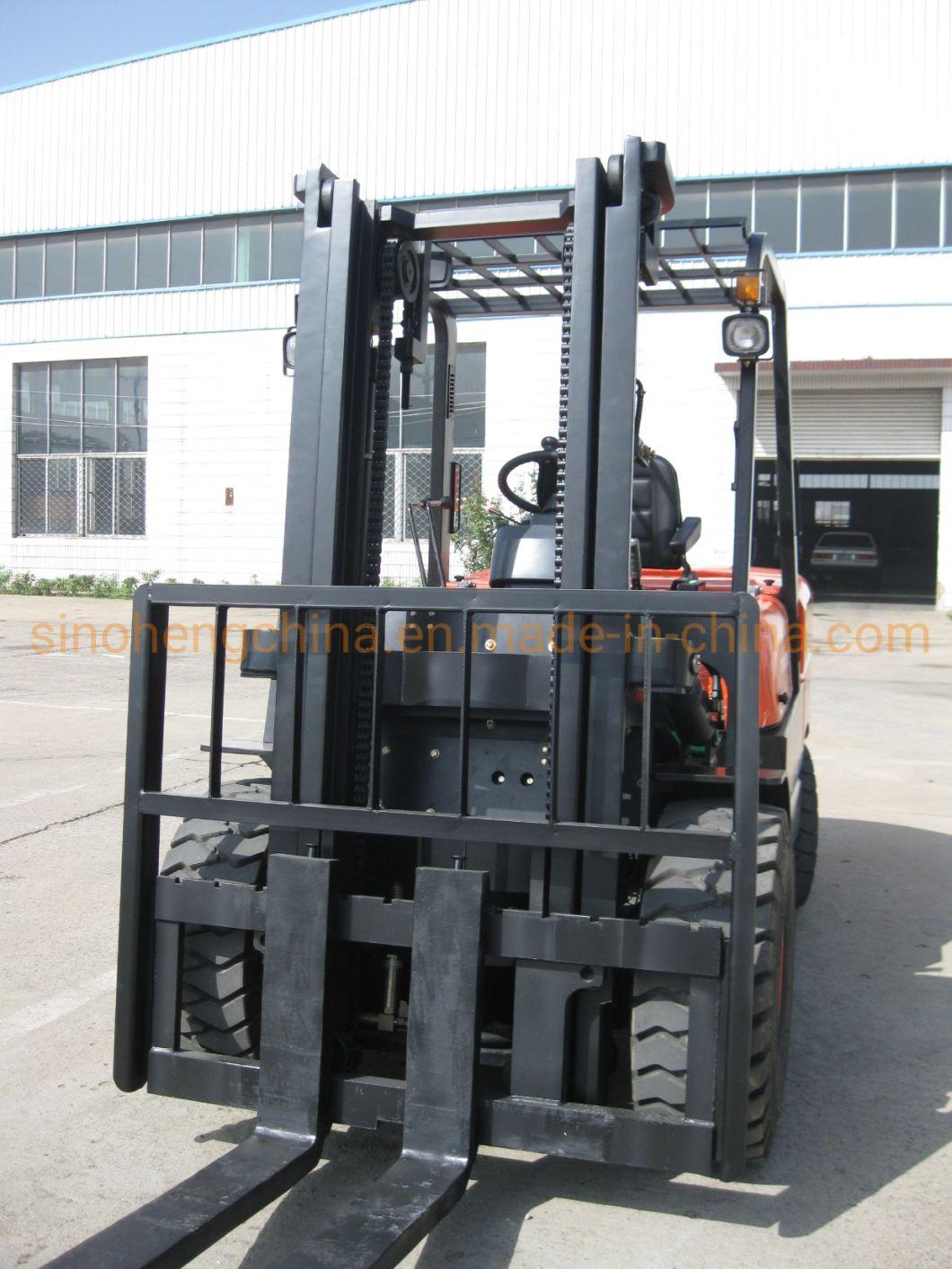

4 Ton Diesel Forklift, Lifting Equipment Sh40fr

Jinan Sinoheng Import and Export Co., Ltd.
  • Cab Location：Not Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：SH40FR
  • Lift height：>5000mm
  • Condition：New
  • Lifting Height：3000mm
  • Free Lift：80mm
  • Fork Length：1220mm
  • Loading Capacity：4 Ton
  • Transport Package：Container, FCL,LCL
  • Specification：CE
  • Trademark：sinoheng
  • Origin：Shandong, China
  • Production Capacity：300PCS,Month

Description

Product Name4 ton Diesel Forklift TruckModelSH40FRLoad capacity (kg)4000Load center (mm)500Power typeDieselMax. lifting speeds ( with load )  mm/s300Max. driving speeds ( with/without load )  km/h18/20Max. towing ( with/without load )  kn16,5/11,5Gradeability (with/without load )  %15/20Lifting height (mm)3000Free lift (mm)80Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2720Min. right angle aisel width ( mm )2320Min. under-clearance (mm)135
DimensionOverall length (including fork)mm4100Overall width ( mm )1230Overall height (mast lowered )mm2110Overall height (mast extend )mm4270Overall height to overhead guard (mm)2110Fork overhang (mm)470Wheel base (mm)1900TreadFront tread (mm)1060Rear tread (mm)970TyreFront tyre250-15Rear tyre6,50-10Total weight (kg)4900Fork width (mm)150Fork thickness (mm)50Backrest height (mm)1225Fork length (mm)                   1220

EngineEngine model498/4C6-65MRate power (KW)45/48Rotate speed at Rate power (rpm)2500/2450Max. torque  (nm)193/215Rotate speed at max torque (rpm)1800/1700Type of power shiftTor-non4 Ton Diesel Forklift, Lifting Equipment Sh40fr4 Ton Diesel Forklift, Lifting Equipment Sh40fr4 Ton Diesel Forklift, Lifting Equipment Sh40fr
