• Model NO.：SH20FR
• Load Capacity(T)：2t
• Power Type：Diesel
• Free Lift (Mm)：60
• Transport Package：Container, FCL, LCL
• Specification：CE
• Trademark：sinoheng
• Origin：Shandong, China
• Production Capacity：300PCS,Month

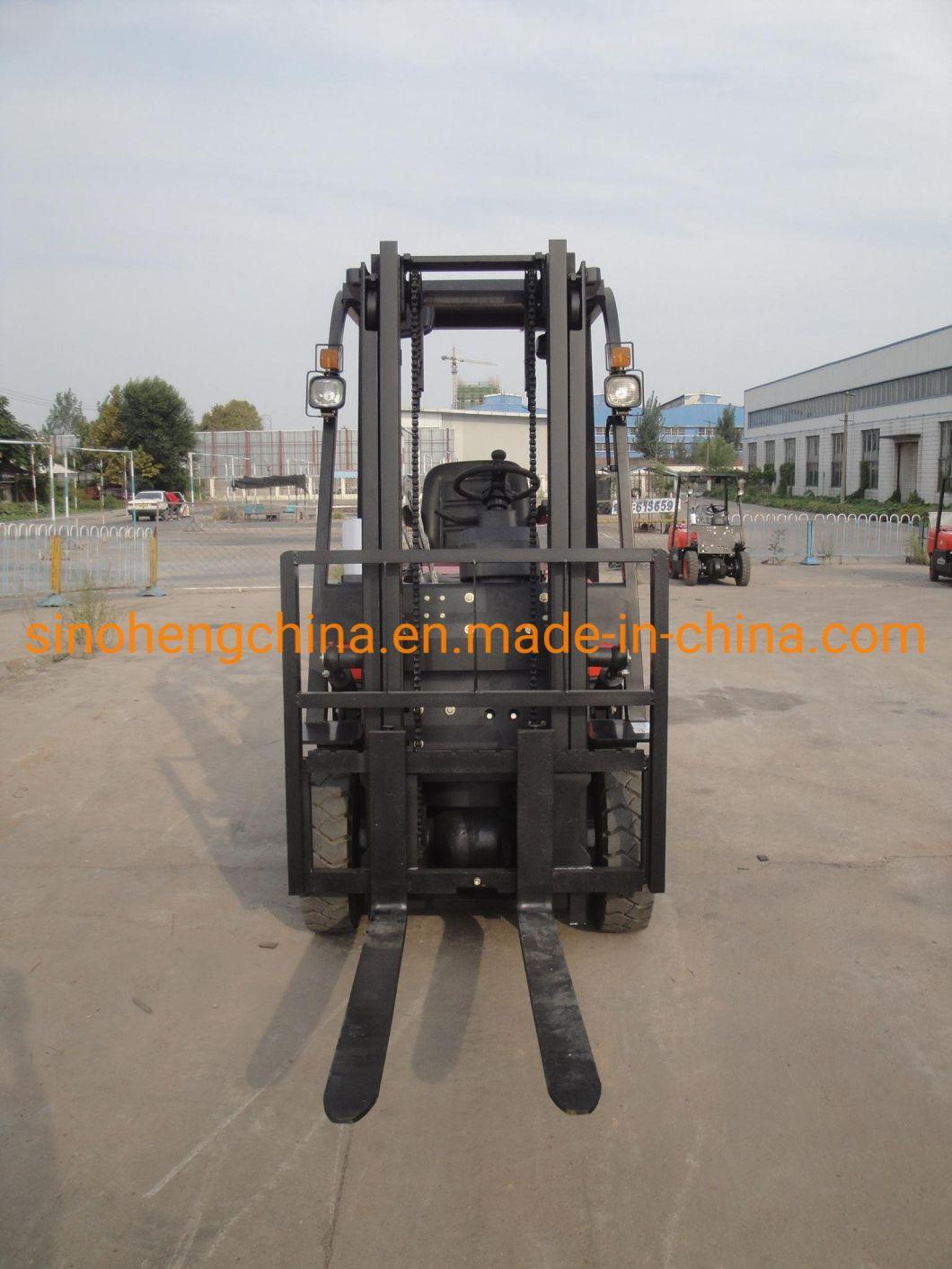

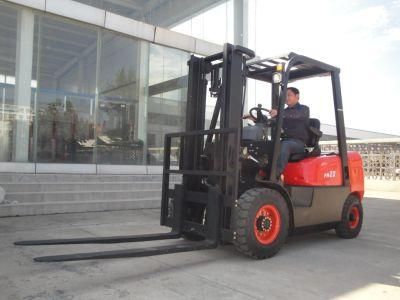

Product Name2 ton Diesel Forklift TruckModelCPCD20FRLoad capacity (kg)2000Load center (mm)500Power typeDieselMax. lifting speeds ( with load )  mm/s400Max. driving speeds ( with/without load )  km/h17/19Max. towing ( with/without load )  kn14/9Gradeability (with/without load )  %15/20Lifting height (mm)3000Free lift (mm)60Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2450Min. right angle aisel width ( mm )2050Min. under-clearance (mm)110
DimensionOverall length (including fork)mm3605Overall width ( mm )1160Overall height (mast lowered )mm2095Overall height (mast extend )mm4080Overall height to overhead guard (mm)2095Fork overhang (mm)451Wheel base (mm)1640TreadFront tread (mm)970Rear tread (mm)970TyreFront tyre7,00-12Rear tyre6,00-9Total weight (kg)3320Fork width (mm)100Fork thickness (mm)40Backrest height (mm)1000Fork length (mm)                   1070

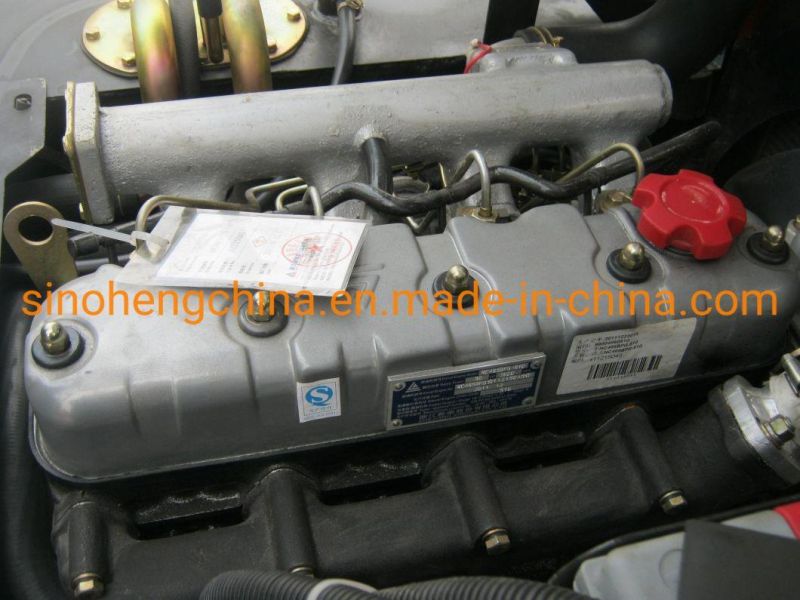

EngineEngine model490Rate power (KW)39Rotate speed at Rate power (rpm)2650Max. torque  (nm)157Rotate speed at max torque (rpm)1980Type of power shiftTor-non
