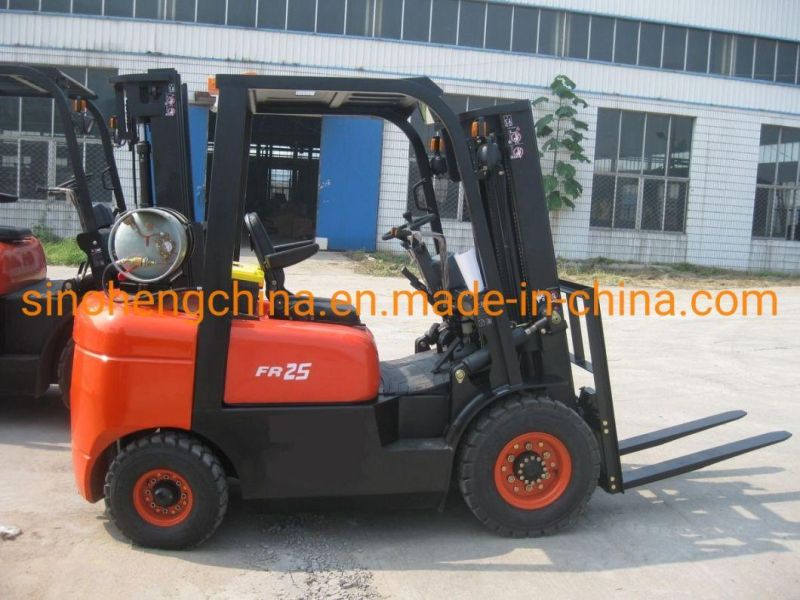

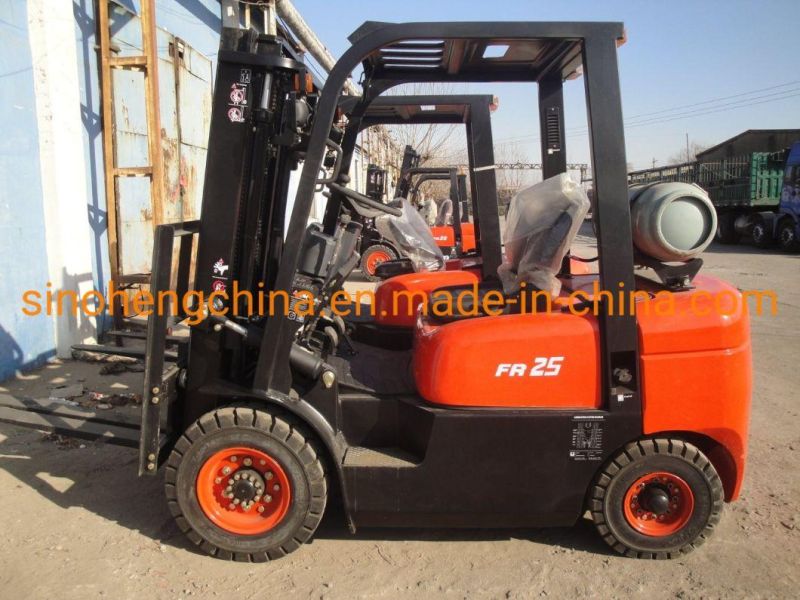

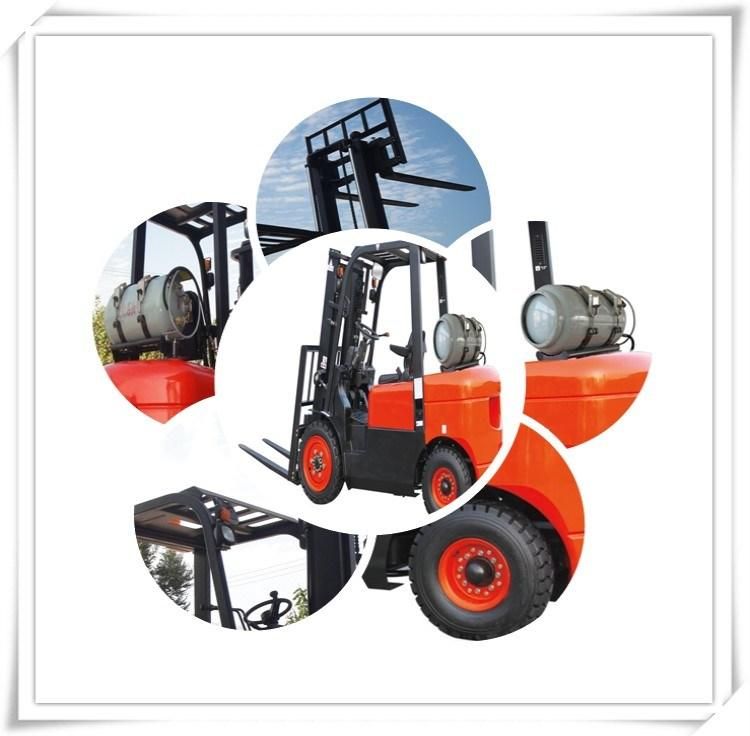

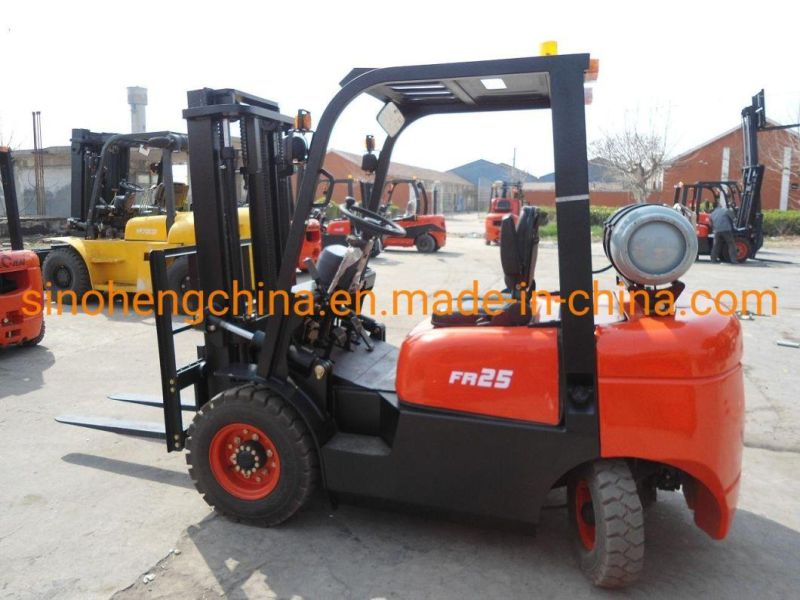

2 Ton Gas & LPG Forklift Truck Sh20fr

Jinan Sinoheng Import and Export Co., Ltd.
  • Power：Gasoline Engine
  • Load Capacity：1T - 5T
  • Load Capacity(T)：2t
  • Power Type：Gasoline,LPG
  • Lifting Height：3000mm
  • Free Lift：60mm

Base Info

  • Model NO.：SH20FR
  • Fork Length：1070mm
  • Transport Package：Container, LCL,FCL
  • Specification：CE
  • Trademark：sinoheng
  • Origin：Shandong, China
  • Production Capacity：300PCS,Month

Description

Product NameCounterbalance Gasoline /LPG Powered Forklift Truck(FR series )ModelSH20FRLoad capacity (kg)2000Load center (mm)500Power typeGasoline/LPGMax. lifting speeds ( with load )  mm/s400Max. driving speeds ( with/without load )  km/h17/19Max. towing ( with/without load )  kn14/9Gradeability (with/without load )  %15/20Lifting height (mm)3000Free lift (mm)60Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2450Min. right angle aisel width ( mm )2050Min. under-clearance (mm)110
DimensionOverall length (including fork)mm3605Overall width ( mm )1160Overall height (mast lowered )mm2095Overall height (mast extend )mm4080Overall height to overhead guard (mm)2095Fork overhang (mm)451Wheel base (mm)1640TreadFront tread (mm)970Rear tread (mm)970TyreFront tyre7,00-12Rear tyre6,00-9Total weight (kg)3320Fork width (mm)100Fork thickness (mm)40Backrest height (mm)1000Fork length (mm)                   1070

EngineEngine modelMITSUBISHI 4G64-31ZG/CHINESE GQ4YRate power (KW)37/36Rotate speed at Rate power (rpm)2650/2400Max. torque  (nm)≥148Rotate speed at max torque (rpm)1800-1900Type of power shiftTor-non2 Ton Gas & LPG Forklift Truck Sh20fr
