Lonking 3 Ton Diesel Fd30 Small Forklift Sale in Philippines
Newindu Construction Engineering (Shanghai) Co., Ltd.- Cab Location：Adjustable
- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：FD30
- Lift height：>5000mm
- Condition：New
- Min. Turning Radius：2460mm
- Self Weight：4220kg
- Rated Power：40kw
- Max. Traveling Speed：18.5,20km,H
- Transport Package：Standard Container
- Specification：2480x1150x2120mm
- Trademark：lonking
- Origin：China
- HS Code：84272090
- Production Capacity：500
Description
MODEL
FD30D(T)III
Power type
Diesel
Rated capacity
kg
3000
J Load center
mm
500
H1 STD Max. lifting height
mm
3000
H3 Free lifting height
mm
165
L5×W×T STD Fork size
mm
1070×125×45
Mast tilt angle
deg
6/12
L3 Front overhang
mm
478
L4 Rear overhang
mm
540
Overall
dimension
L1 Overall length(with fork)
mm
3780
W1 Overall width
mm
1240
H2 STD Mast lowered height
mm
2075
H4 Overhead guard height
mm
2130
R1 Min. turning radius
mm
2460
Min. intersecting aisle
mm
4155
Max. traveling speed, load/unload
km/h
18.5/20
Max. lifting speed, load/unload
mm/s
485/505
Max. gradient
%
20
Self weight
kg
4220
S/P Tread, front/rear
mm
1000/980
L2 Axle distance
mm
1700
Min. ground clearance
M2 Mast
mm
130
M1 Frame
mm
160
STD Engine
XINCHAI C490BPG-225
Rated power
kw
40
Optional Engine
Engine Model
Manufacture
Rated Power
(kw/rpm)
Max. Torque
(Nm/rpm)
Bore/Number of Cylinders/Displacement
(mm/L)
Fuel Consumption
(g/KW·h)
C490BPG-225
Xinchai
40/2650
156/1800
90/4/2.67
230
QC490GP-159
Quanchai
39/2500
157/2000
90/4/2.67
230
C02-624
Quanchai
36.8/2500
157/1800
90/4/2.67
230
YN4A055-31CR
Yunnei
36.8/2600
180/1800
90/4/2.67
225

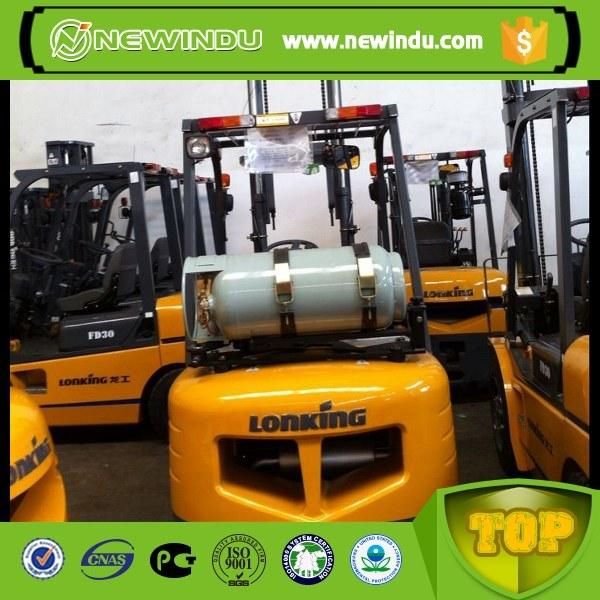

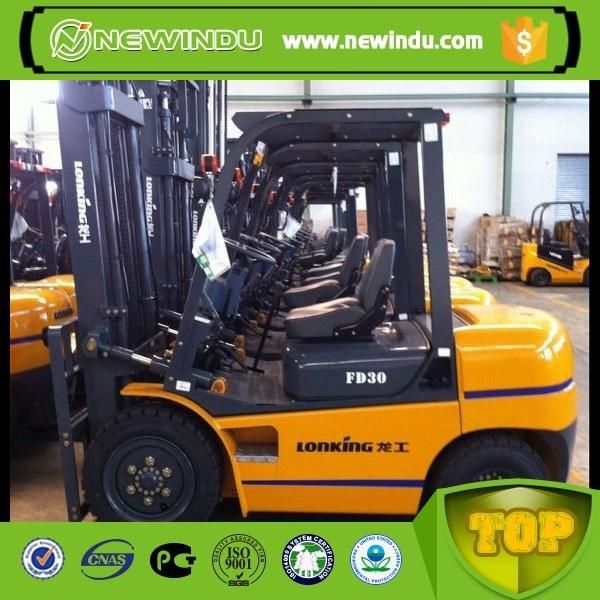

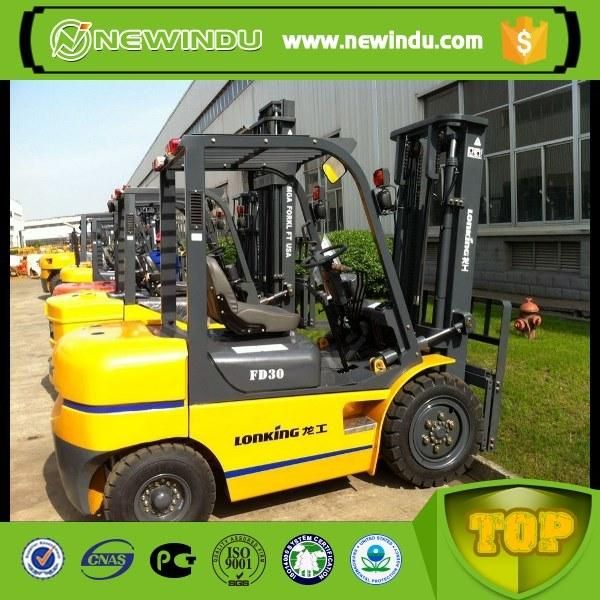

PRODUCT IMAGE
