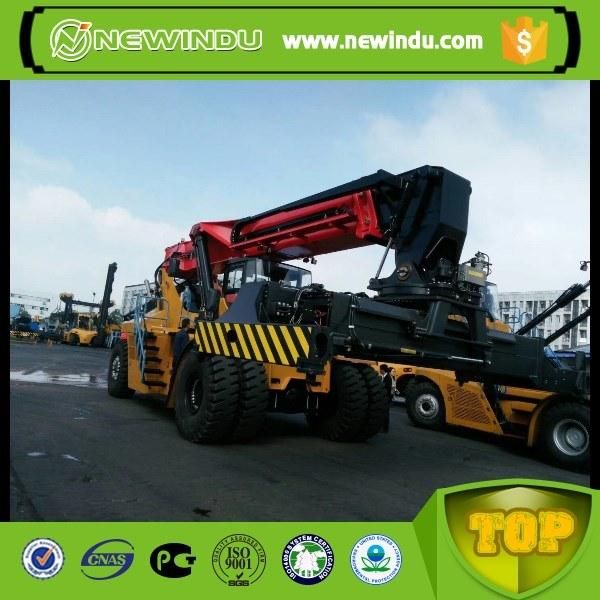

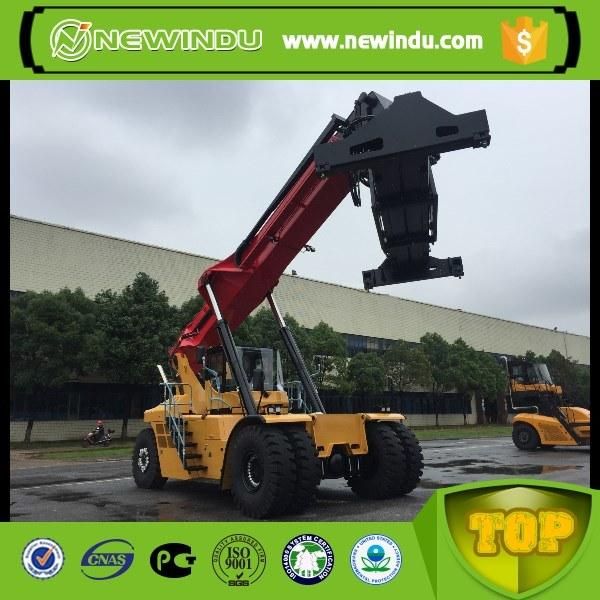

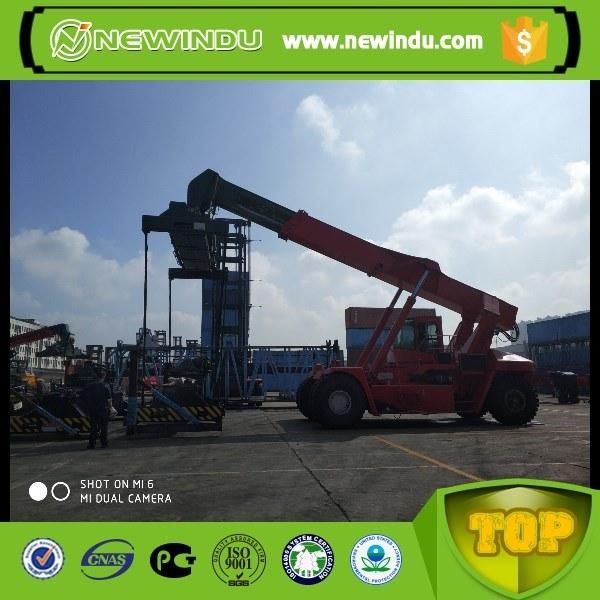

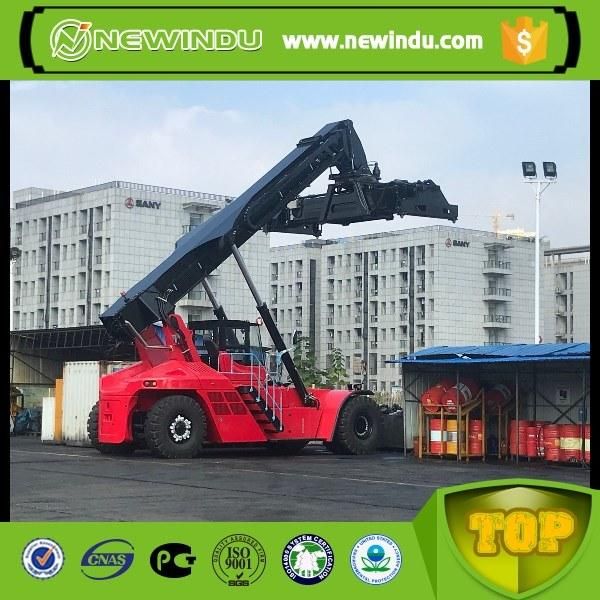

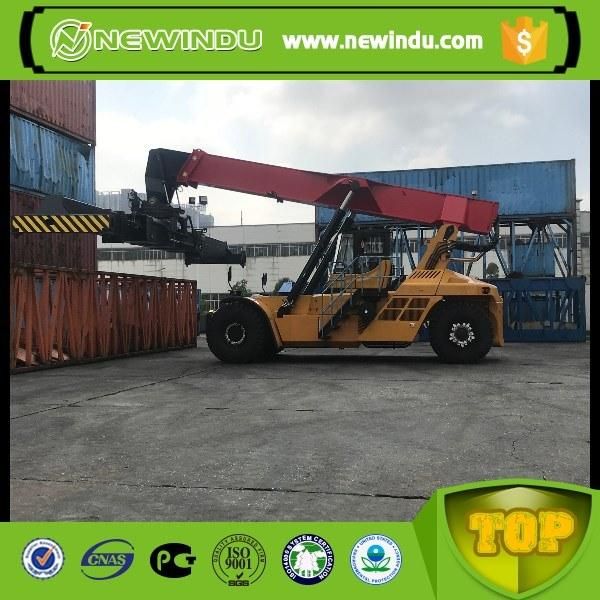

• Model NO.：SRSC4545H
• Lift height：>5000mm
• Condition：New
• Engine：Tad1151
• Max. Loading Height：15100mm
• Spreader：Sdj450f

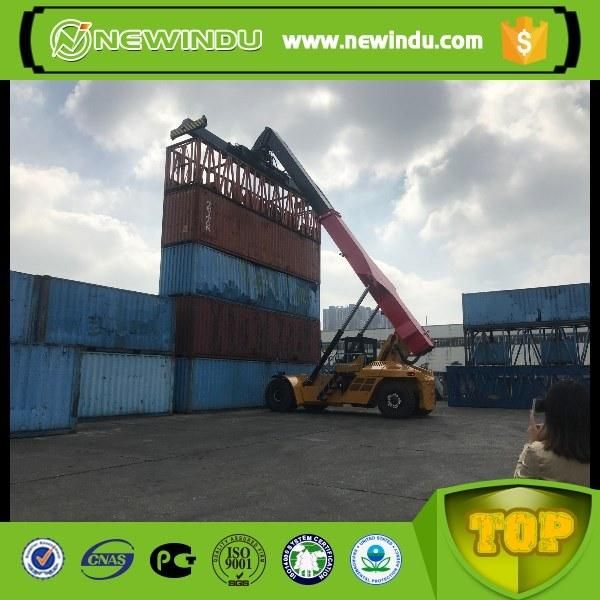

• Application：ISO20′,40′,45′ Containers
• Transport Package：Nude Packing
• Specification：11340x(6053-12185)x4770mm
• Trademark：S any
• Origin：China
• HS Code：87051091
• Production Capacity：20units, Month

Configuration

Engine manufacturer

 TAD 1151

Rated power

265/2100kW/rpm

Max.torque

1780/1260Nm/rpm

Emission standard

Tier III

Transmission

15.5HR36000

Drive axle

 D102PL341

Tire

18.00-25 40PR

Boom

Max.lifting height

15100mm

Boom tilt angle

0°-60°

Performance

Max.lifting speed (non-load/load)

420/250mm/s

Max.lowering speed (non-load/load)

360/300mm/s

Max.travel speed (non-load/load)

25/21km/h

Gradeability (non-load/load)

39/32%

Hydraulic system work pressure

260bar

Overall weight

72t

Max.load

45t

Stacking height

5(9'6"/8'6")

Overall length

11340mm

Wheel base

6000mm

Overall height

4770mm

Min.ground clearance

350mm

Overall width

6053-12185mm

Front wheel width

3033mm

Rear wheel width

2790mm

Min.turning radius

8000mm

20"container aisle width

11300mm

40"container aisle width

13600mm
