45 Ton Reach Stacker for Containers
Newindu Construction Engineering (Shanghai) Co., Ltd.- Cab Location：Not Adjustable
- Type：Container Forklift
- Power：Diesel Engine
- Load Capacity：＞42T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：SRSC45H1
- Lift height：>5000mm
- Condition：New
- Engine：Tad1151
- Max. Loading Height：15100mm
- Spreader：Sdj450f
- Application：ISO20′,40′,45′ Containers
- Transport Package：Nude Packing
- Specification：11340x(6053-12185)x4770mm
- Trademark：S any
- Origin：China
- HS Code：87051091
- Production Capacity：20units, Month
Description
Configuration
Engine manufacturer
TAD 1151
Rated power
265/2100kW/rpm
Max.torque
1780/1260Nm/rpm
Emission standard
Tier III
Transmission
15.5HR36000
Drive axle
D102PL341
Tire
18.00-25 40PR
Boom
Max.lifting height
15100mm
Boom tilt angle
0°-60°
Performance
Max.lifting speed (non-load/load)
420/250mm/s
Max.lowering speed (non-load/load)
360/300mm/s
Max.travel speed (non-load/load)
25/21km/h
Gradeability (non-load/load)
39/32%
Hydraulic system work pressure
260bar
Overall weight
72t
Max.load
45t
Stacking height
5(9'6"/8'6")
Overall length
11340mm
Wheel base
6000mm
Overall height
4770mm
Min.ground clearance
350mm
Overall width
6053-12185mm
Front wheel width
3033mm
Rear wheel width
2790mm
Min.turning radius
8000mm
20"container aisle width
11300mm
40"container aisle width
13600mm

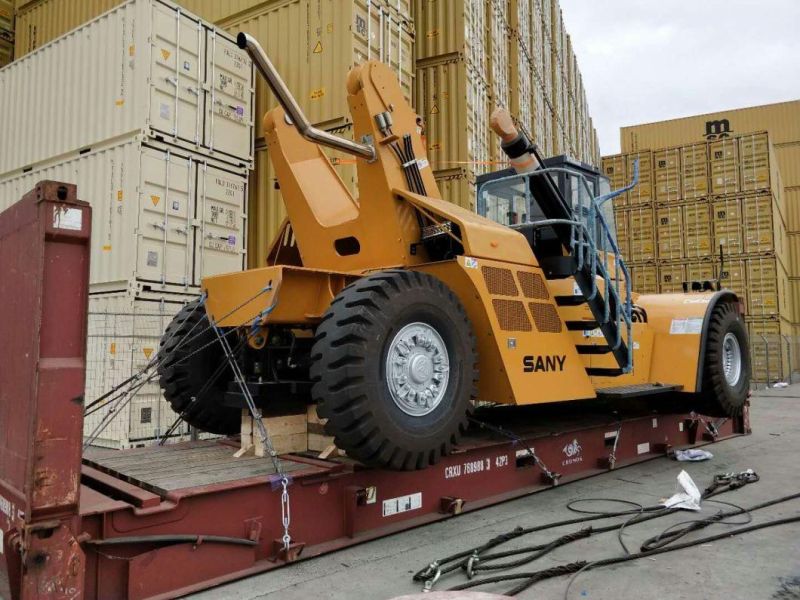

Photos of Shipment
