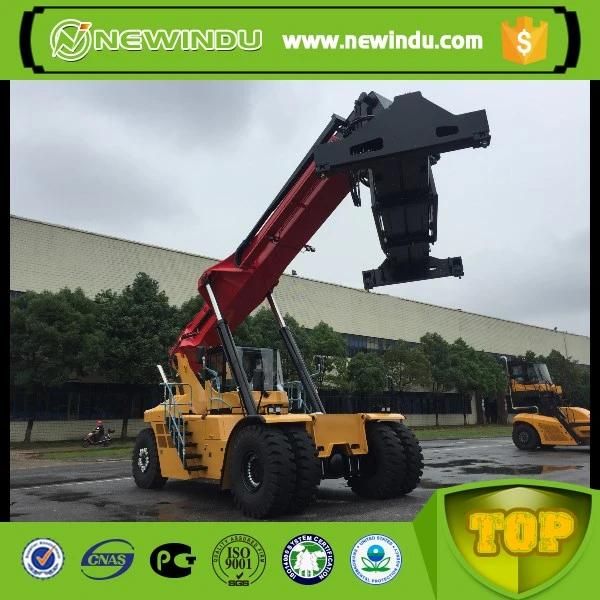

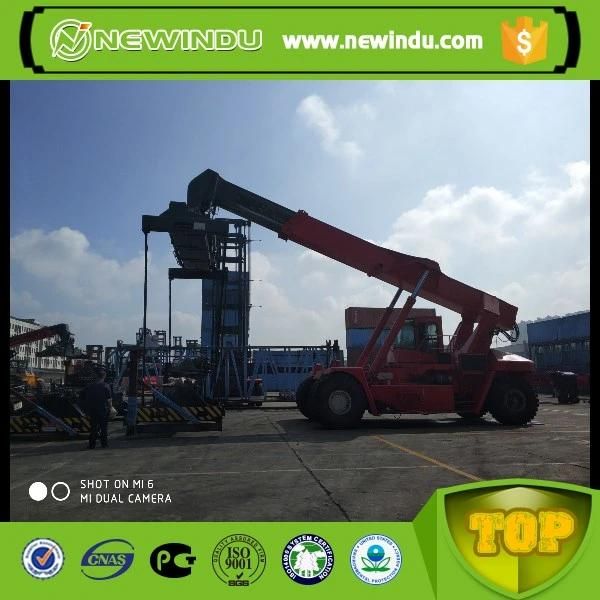

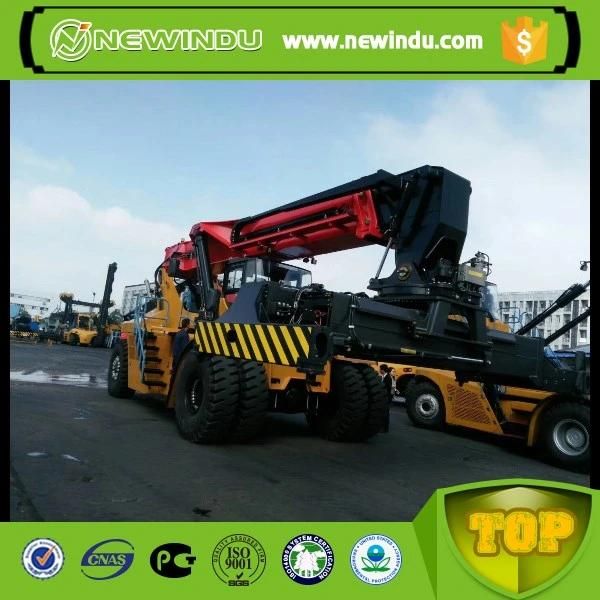

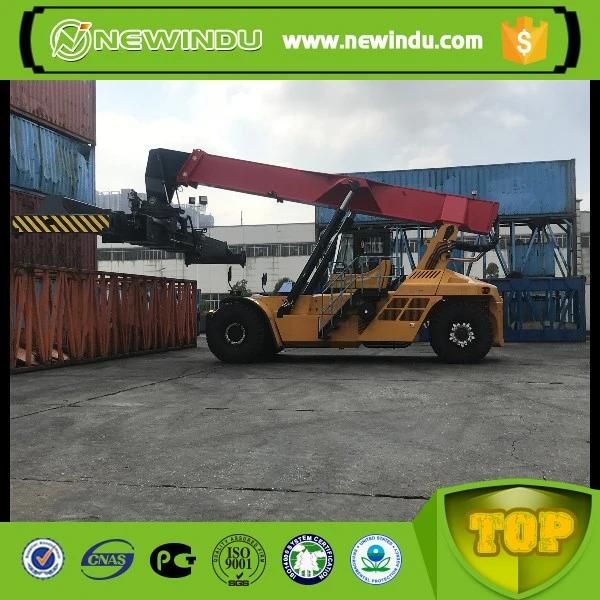

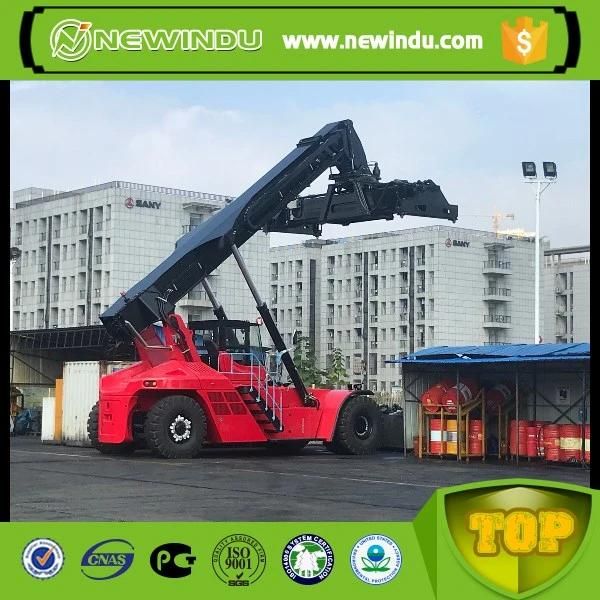

New 45 Ton Container Handler Reach Stacker
Newindu Construction Engineering (Shanghai) Co., Ltd.- Cab Location：Not Adjustable
- Type：Container Forklift
- Power：Diesel Engine
- Load Capacity：＞42T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：SRSC4545C1
- Lift height：>5000mm
- Condition：New
- Engine：Tad1151
- Max. Loading Height：15100mm
- Spreader：Sdj450f
- Application：ISO20′,40′,45′ Containers
- Transport Package：Nude Packing
- Specification：11340x(6053-12185)x4770mm
- Trademark：S any
- Origin：China
- HS Code：87051091
- Production Capacity：20units, Month
Description
Performance Max.lifting speed (non-load/load) 420/250mm/s Max.lowering speed (non-load/load) 360/300mm/s Max.travel speed (non-load/load) 25/21km/h Gradeability (non-load/load) 39/32% Hydraulic system work pressure 260bar Overall weight 72t Max.load 45t Stacking height 5(9'6"/8'6") Overall length 11340mm Wheel base 6000mm Overall height 4770mm Min.ground clearance 350mm Overall width 6053-12185mm Front wheel width 3033mm Rear wheel width 2790mm Min.turning radius 8000mm 20"container aisle width 11300mm 40"container aisle width 13600mm
