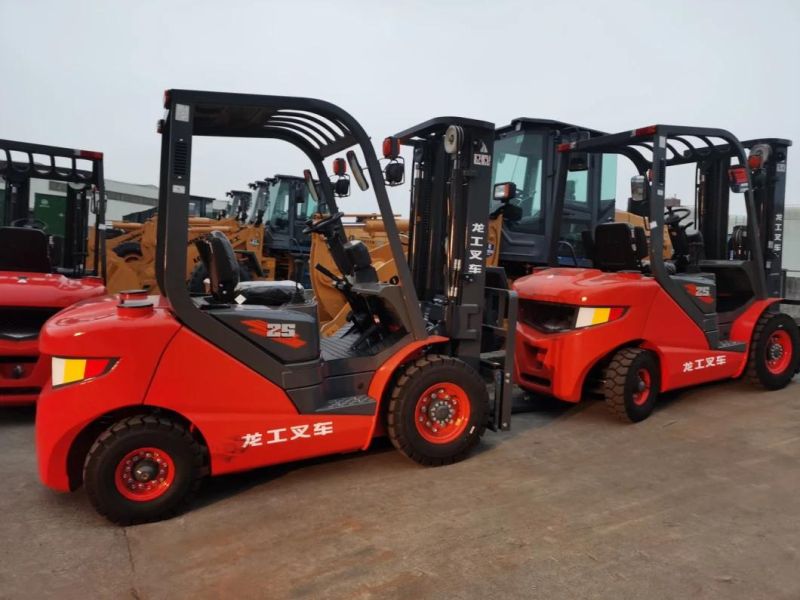

Lonking Brand 2.5ton LG25dt Diesel Forklift

Newindu Construction Engineering (Shanghai) Co., Ltd.

After-sales Service：1 Year
Warranty：1 Year
Cab Location：Adjustable
Type：Powered Pallet Truck
Power：Diesel Engine
Load Capacity：2.5ton

Base Info

Model NO.：LG25DT
Fuel：Diesel
Load center：500mm
Lift height：3000~5000mm
Condition：New
Fork Length：1070mm
Fork Width：120mm
Engine Power：36.8kw
Free Lift：110mm
Rated Load：2500kg
Transport Package：Nude
Specification：670*1165*2130 mm
Trademark：LONKING
Origin：China, Shanghai
Production Capacity：100 Units Per Month

Description

MODELUnitLG25DTPower type DieselRated capacity kg2500J Load centre mm500h1 STD Max lifting height mm3000h3 Free lifting height mm110L5*W*T STD Fork size mm1070×120×40Mast tilt angle deg6/12L3 Front overhang mm448L4 Rear overhang mm500Overall dimensionmm L1 Overall lengthmm3670W1Overall width mm1165h2 Mast lowered height mm2135h4 Overhead guard height mm2130R1 Min.turning radius mm2300Min .intersecting aisle mm3950Speed(load/unload) Max.traveling speed (F/R)km/h20/18.5Max,lifting speed (load/unload)mm/s480/510Max.gradient %20Dead weight kg3500S/P Tread(frnt/rear)mm970/980L2 Axle distance mm1650Min.ground clearance m2 Mast mm135m1 Frame mm160STD Engine Xinchai C490Rated powerkw36.8
