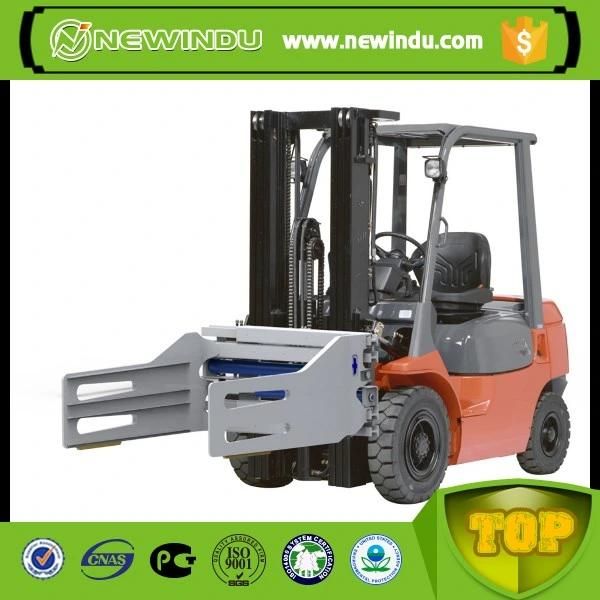

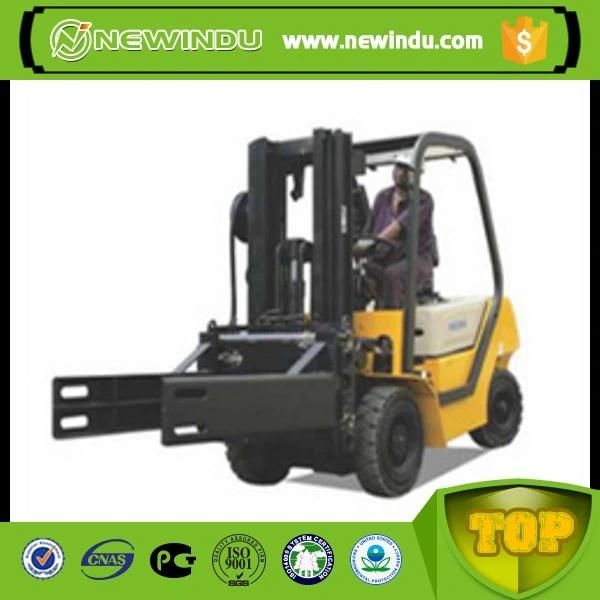

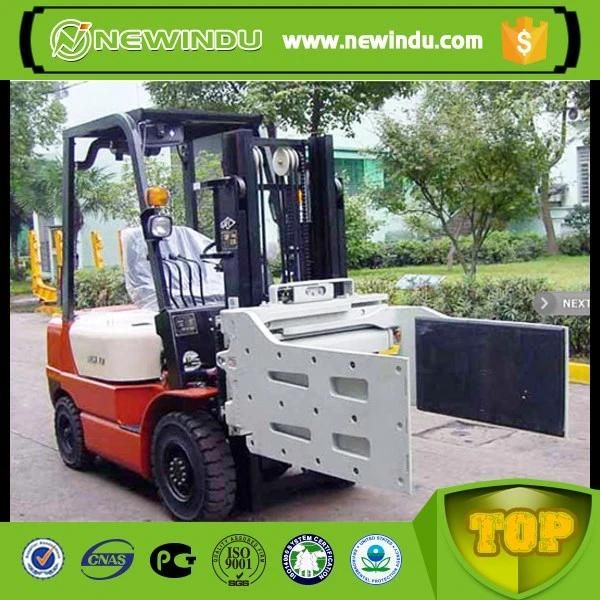

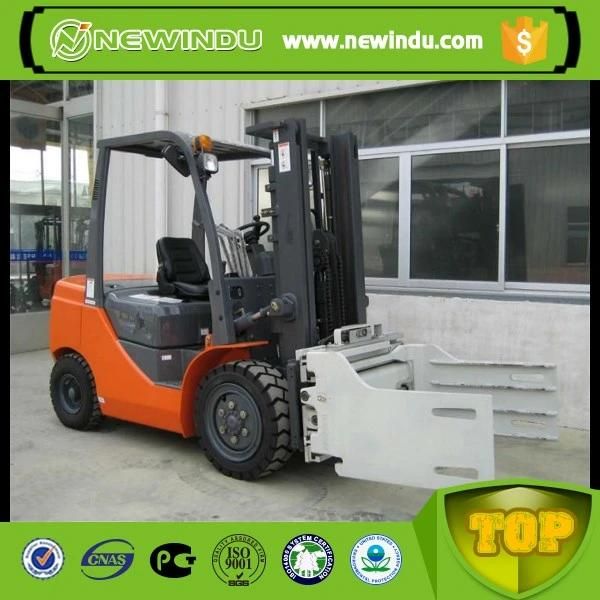

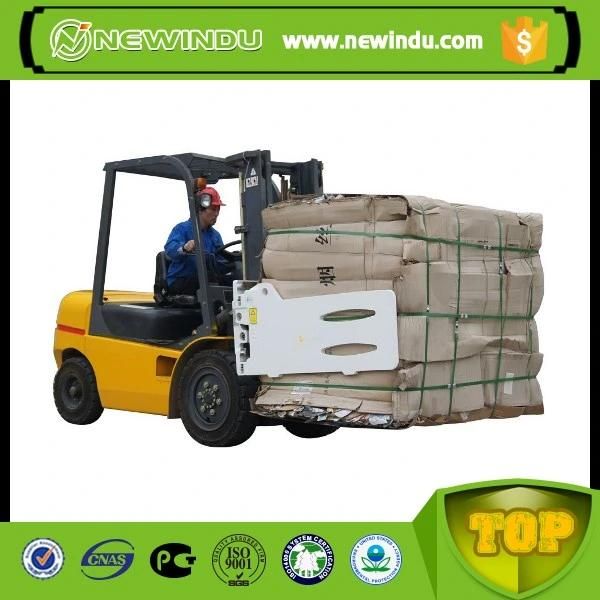

Heli 2ton Diesel Forklift with Bale Clamps

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service:Overseas Service
  • Warranty:One Year
  • Cab Location:Not Adjustable
  • Type:Diesel Forklift
  • Power:Diesel Engine
  • Load Capacity:1T - 5T

Base Info

  • Model NO.:CPCD20
  • Fuel:Diesel
  • Load center:500mm
  • Lift height:3000~5000mm
  • Condition:New
  • Engine:V2403
  • Rated Power:35.4kw
  • Fork Size:920X100X45mm
  • Rated Torque:161.3n,M,1600rpm
  • Transport Package:Nude Packing
  • Specification:3430x1150x2140mm
  • Trademark:HELI
  • Origin:China
  • HS Code:84272090
  • Production Capacity:50units,Month

Description

Model CPCD20Power type DieselLoad capacitykg2000Load centermm500Pallet fork maximum height (with block shelf)mm4039Maximum lifting heightmm3000Free hoisting heightmm145Overall height (upper frame protection)mm2140Full length (with cargo fork)mm3430Full width mm1150The minimum ground clearance (the door)mm110The minimum turning radius (outer)mm2170Least square channel widthmm2200Pallet fork a*b*cmm920*100*45Maximum speed (full/empty)km/h17/19Maximum traction(full/empty)KN17/8.33Maximum gradeability (full/empty)%28/20Tire type (before/after) 2/2Engine manufacturers/models V2403Rated powerKW/rpm35.4/2400Rated torqueNm/rpm161.3/1600Total water (oil)kg3480
