• Model NO.：FD40T
• Fuel：Diesel
• Load center：500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1070X125X45mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Transport Package：in Nude with Necessary Protection
• Specification：3091x1485x2260mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

FUPIA 4-5Ton diesel forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.

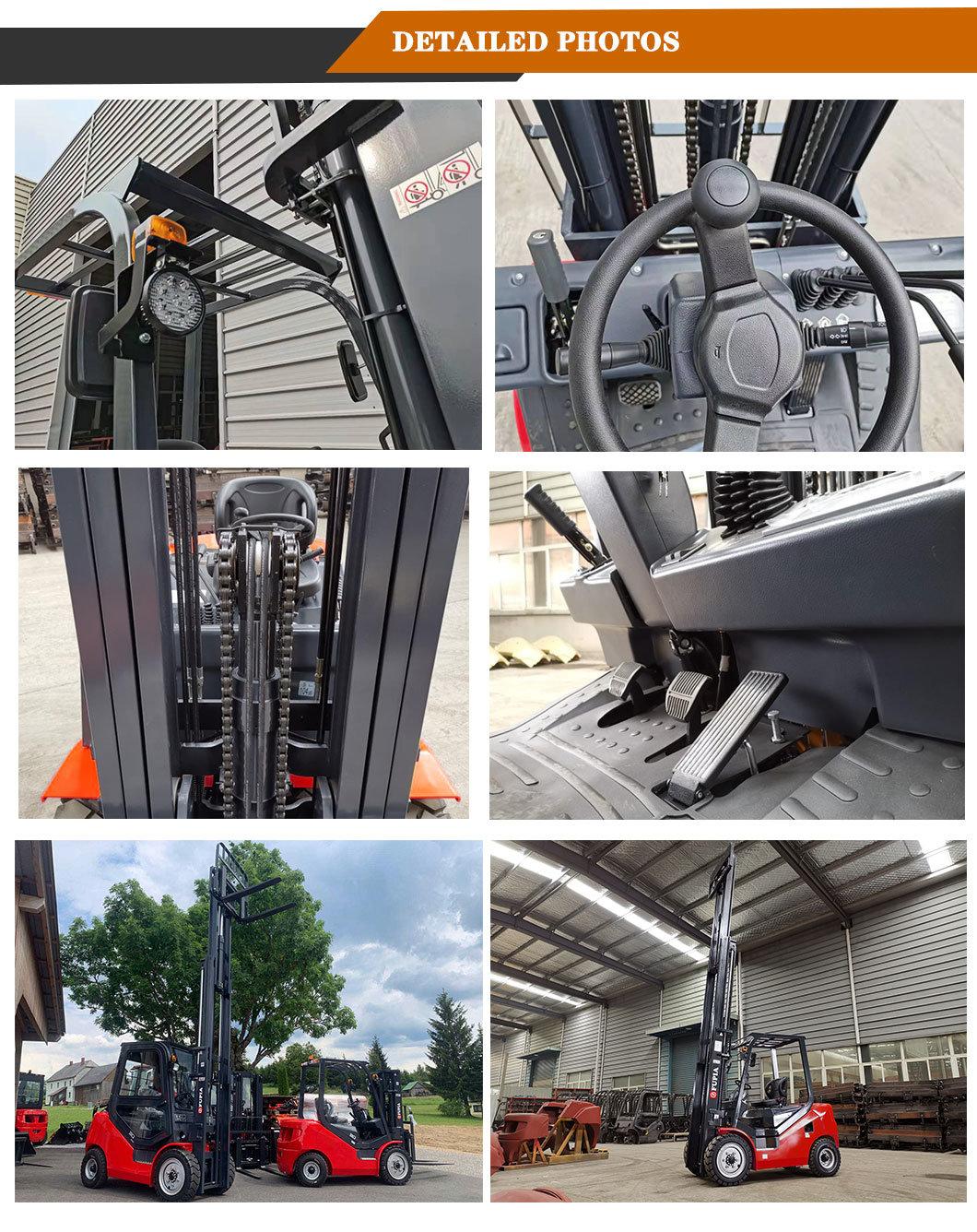

Detailed Photos

Product Parameters General 1Brand FUPIA2Model FD40T3Power Type Diesel4Rated Load CapacityQ(kg)40005Load CentreC(mm)500Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)1008Fork Size (L×W×T)mm1070×150×509Mast Tilt Angle (F/R, α°/β°)deg6/1210Fork Overhang (Wheel Center to Fork Face)X1(mm)49511Rear OverhangX2(mm)56512Ground Clearance (Bottom of Mast)H7(mm)13013Length to Face of Fork (Without Fork)L1(mm)296014Overall WidthB1(mm)141015Mast Lowered HeightH1(mm)207016Mast Extended Height (With Backrest)H4(mm)425017Overhead Guard HeightH5(mm)225018Turning Radius (Outside)Wa(mm)268819Min.Aisle width for pallets Ast(mm)2692 Performance20Travel Speed (No Load)km/h2021Lifting Speed (Full Load)mm/sec36022Lowering Speed  (Full Load)mm/sec42523Max.Drawbar Pull (Full Load)KN≥1724Max.Gradeability (Full Load)%20 Chassis25Tyre (Front x 2)mm250-15-16PR 26Tyre (Rear x 2)mm7.00-1227Front TreadB2(mm)116028Rear TreadB3(mm)115029WheelbaseY(mm)1900 Weight30Total Weightkg545031Front Axle Weight Distribution (Full Load)kg850032Rear Axle Weight Distribution (Full Load)kg95033Front Axle Weight Distribution (No Load)kg220034Rear Axle Weight Distribution (No Load)kg3250 Power & Transmission35BatteryV/Ah12/9036Engine Model  4JG237Engine Manufacturer ISUZU38Rated Output / r.p.m.kw44.9KW/245039Rated Torque / r.p.m.N·m184.7Nm/170040No.of Cylinder 441Bore x Strokemm95.4×10742DisplacementL3.05943Fuel Tank CapacityL8044Transmission Type YQXD3045Transmission Stage (FWD/RVS) 1/146Operating Pressure (For Attachments) Mpa14.5Certifications

Packaging & Shipping

Company Profile

After Sales Service

FAQ
