• Lift height：3000~5000mm
• Condition：New
• Rated Capacity：2400kg
• Power Type：Diesel
• Transmission：Automatic
• Lifting Height：3000mm
• Engine Model：495bpg
• Engine Power：42kw,57HP
• Rated Speed：2650rpm
• Displancement：2.97L
• Front Tire：12-16.5-14
• Rear Tire：27*10-12
• Max.Driving Speed (with/Without Load)：19.5,21km,H
• Min.Ground Clearance：290mm
• Overall Height(Overhead Guard)：2270mm
• Fork Thickness：40mm
• Delivery Time：Within 25 Working Days After Receiving Deposit
• Transport Package：Nude in Container
• Specification：4010,1230,2280mm
• Trademark：TITAN
• Origin：Shangdong China(Mainland)
• HS Code：84295100
• Production Capacity：1000 Sets One Year

Basic Info.

Lift height 3000~5000mm Condition New Rated Capacity 2400kg Power Type Diesel Transmission Automatic Lifting Height 3000mm Engine Model 495bpg Engine Power 42kw/57HP Rated Speed 2650rpm Displancement 2.97L Front Tire 12-16.5-14 Rear Tire 27*10-12 Max.Driving Speed (with/Without Load) 19.5/21km/H Min.Ground Clearance 290mm Overall Height(Overhead Guard) 2270mm Fork Thickness 40mm Delivery Time Within 25 Working Days After Receiving Deposit Transport Package Nude in Container Specification 4010/1230/2280mm Trademark TITAN Origin Shangdong China(Mainland) HS Code 84295100 Production Capacity 1000 Sets One Year

Product Description

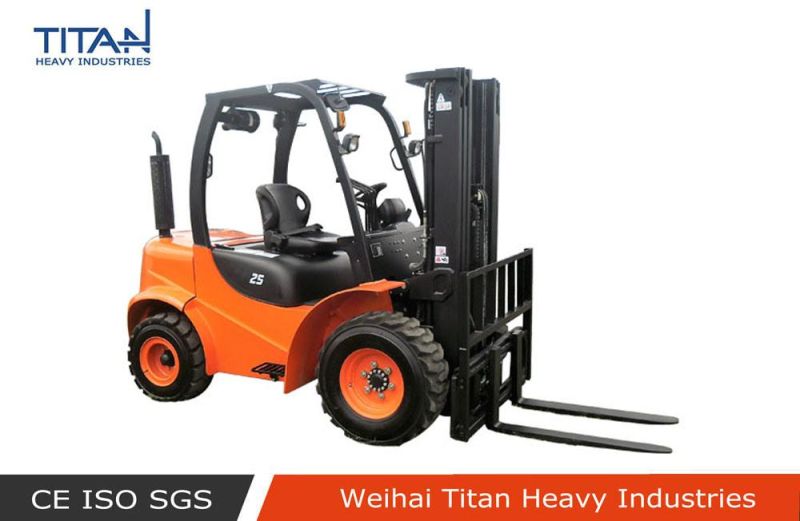

2.5 ton 3 meter container mast diesel forklift with automatic transmission

Product Application

_{1) Rough terrain forklift, wide view forklift mast, it is suitable for hard and rugged terrain working condition.
2) It is tires are big patterm, wideth tires, It is specialized designed for hard , terrain road and way.
3) Working condition of cross-country road is rugged, obstacles in the way.
4) The driving axle is conbined in  Cast steel structure, it get more stength and reliable.}


ITEM	SPECIFICATION	ITEM	SPECIFICATION
General		Performance
Model	CPCD25Y	Max. driving speed (with/without load)	19.5/21km/h
Rated capacity	2400kg	Max. lifting speed (with load)	570mm/s
Load center	500mm	Departure Angle	32°
Power type	Diesel	Min. ground clearance	290mm
Transmission	Automatic	Tilting angles (forward/backward)	6/12°
Dimensions		Service weight	4200kg
Lifting height	3000mm	Engine
Free lifting height	80mm	Model	Xinchai 495BPG engine
Turning radius	2950mm	Power	42kw/57hp
Overall length	4010mm	Rated speed	2650rpm
Overall width	1230mm	Displacement	2.97L
Overall height (mast lowered)	2280mm	No. of cylinder	4
Overall height (mast raised)	4065mm	Wheel
Overall height (overhead guard)	2270mm	Front overhang	550mm
Fork length	1070mm	Wheel base	1800mm
Fork width	122mm	Front tread	1240mm
Fork thickness	40mm	Rear tread	1175mm
Loading container quantity	2PCS/20'CTN	Front tire	12-16.5-14
	4PCS/40'CTN	Rear tire	27*10-12

 --CHINA XINCHAI 495BPG ENGINE 42KW;
--AUTOMATIC TRANSMISSION;
--2-stage 3000MM mast;
--side shifter;
--1070MM fork;
--PNEUMATIC tire;
--TOP-GRADE SEAT;
--WARNING AND RE AR LIGHT;
--SPECIAL-RADIATOR FOR TOP HOT AREA.

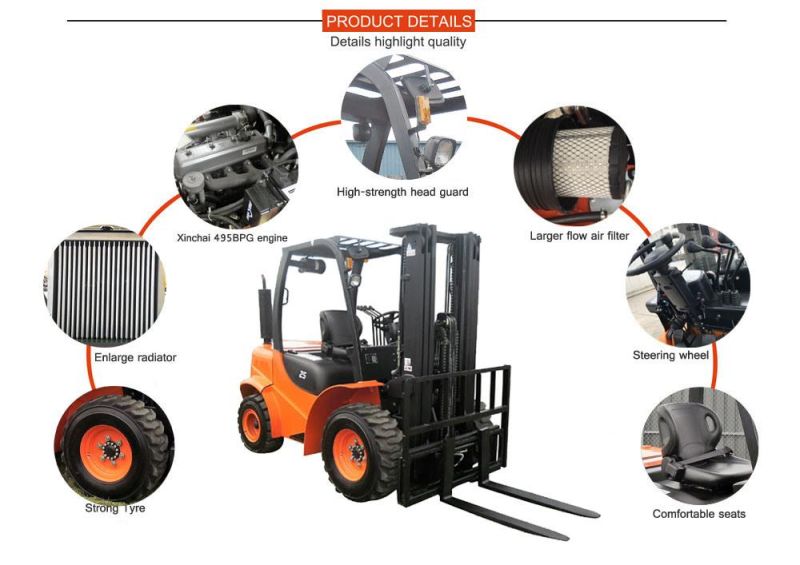

Details

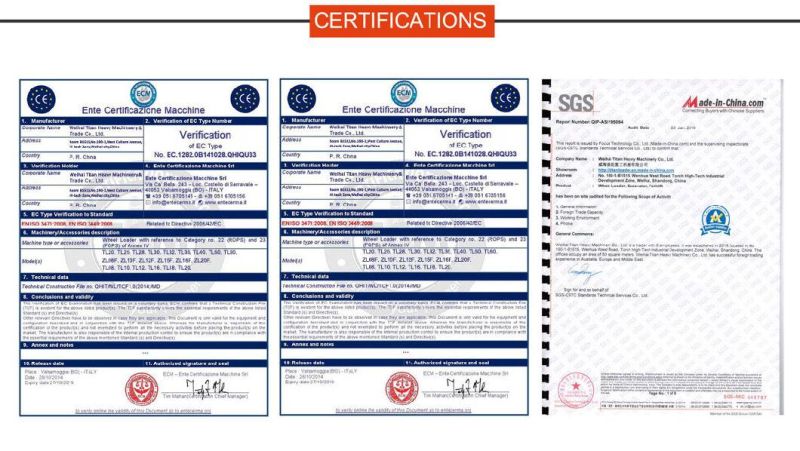

Certifications
All the machine with CE ISO SGS certificate.

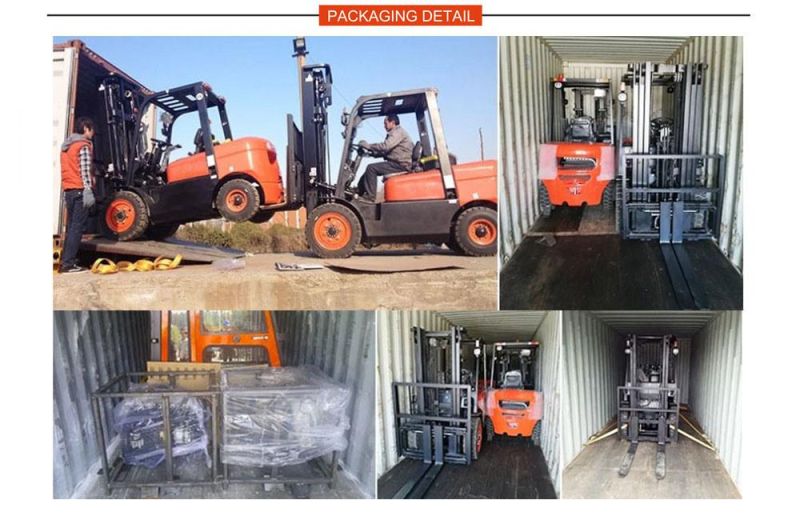

Packaging details
TITAN Transport packaging team helps our customer to transport their machine in safe and secure way without any damage. Close to Qingdao port, we have the natural advantage to deliver your cargo safe, on time with competitive freight cost.

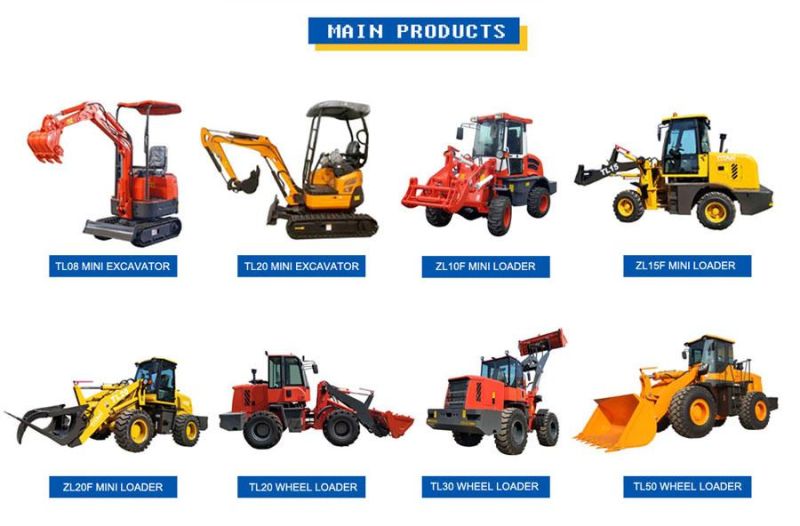

Main Products


OUR SERVICE

Our trained Professional service team offers high quality in-time service in a very friendly way.
For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 3 working days. We have professional technician to support trouble clearing and maintenance.

Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.

One year guarantee for whole machine main parts.
24 hours technical support by email.
User manual and details videos or CD if you requested For each forklift

After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.

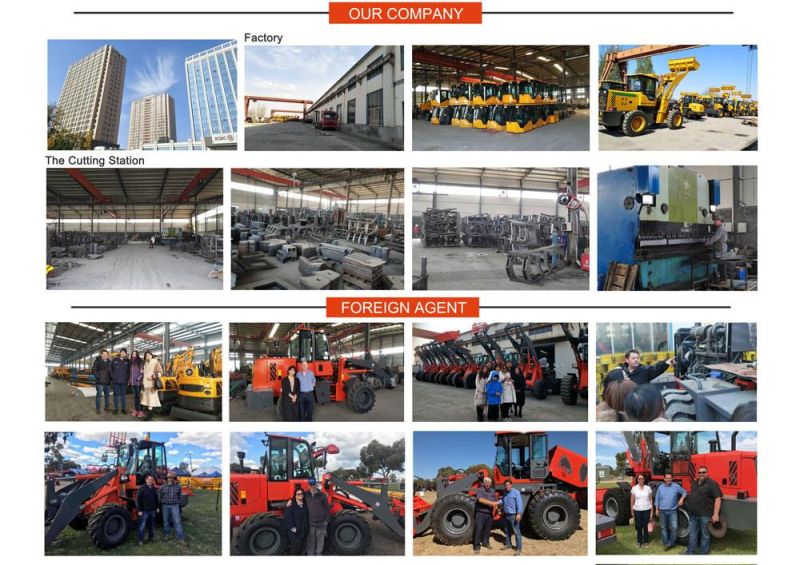

About Us
Our company Weihai Titan Heavy Machinery ,We are a professional wheel loader and excavator factory in China,owns more than 11 years experiences on producing and exporting wheel loader.We are actively trying to develop agents all over the world, looking forward to cooperating with you.


FAQ
 Q:Why choose Titan?
We sell every machine at a fair price.As our production increases,we are getting much support from the purchase source of raw meterial.
We leave the maximum profit to customer.
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan team: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITAN.Our products are tested and granted CE cetificate.

Q:What is Titan warranty?
TITAN has a professional sales and after-service team.We are trying our best to make a good service for every customer.
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.

Q:What about Titan delivery term?
TITAN Transport packsging team helps our customer to transport their machine in safe and secure way without any damage.
10-20 days after down payment received.

Q:What about the payment term?
30% advance payment,70% balance by T/T.
