• Model NO.：FD18
• Fuel：Diesel
• Load center：500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1070X120X40mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Certification：CE, ISO9001, ISO14001
• Transport Package：in Nude with Necessary Protection
• Specification：2290x1090x2180mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

FUPIA 1.5-3.5Ton diesel forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.

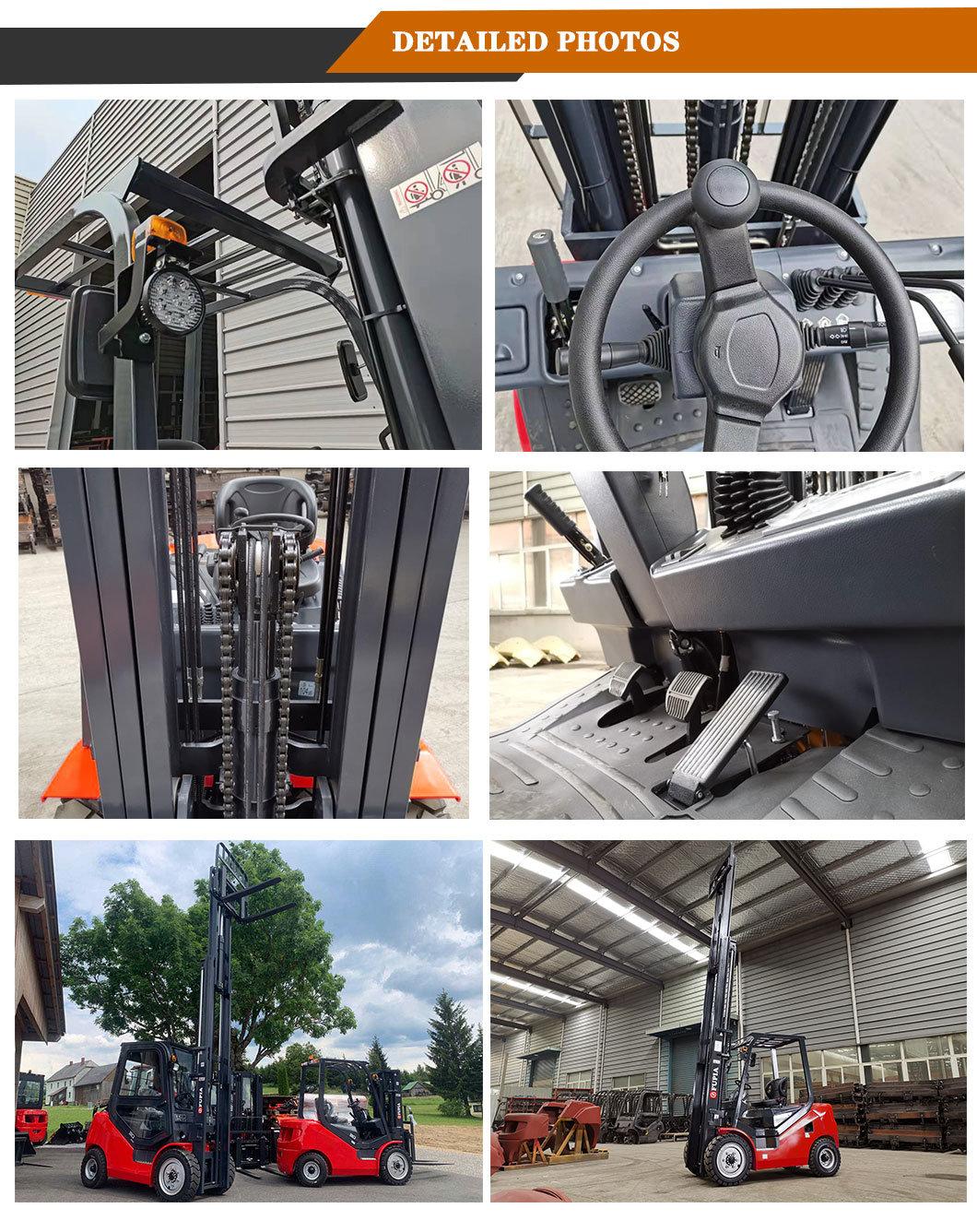

Detailed Photos

Product ParametersGeneral 1Brand FUPIA2Model FD15T-IN  FD18T-IN  FD15T-JBN  FD18T-JBN  3Power Type  Diesel4Rated Load CapacityQ(kg)15001800150018005Load CentreC(mm)500Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)1008Fork Size (L×W×T)mm920×120×351070×120×40920×120×351070×120×409Mast Tilt Angle (F/R, α°/β°)deg6°/12°10Fork Overhang (Wheel Center to Fork Face)X1(mm)40911Rear OverhangX2(mm)47047047047012Ground Clearance (Bottom of Mast)H7(mm)11013Length to Face of Fork (Without Fork)L1(mm)228522852285228514Overall WidthB1(mm)108215Mast Lowered HeightH1(mm)202516Mast Extended Height (With Backrest)H4(mm)405517Overhead Guard HeightH5(mm)216018Turning Radius (Outside)Wa(mm)210021002100210019Min.Aisle width for palletsmm3700370037003700Performance20Travel Speed (No Load)km/h14.521Lifting Speed (Full Load)mm/sec56022Lowering Speed  (Full Load)mm/sec45023Max.Drawbar Pull (Full Load/No Load)KN17(14.5)20.5(17.5)24Max.Gradeability (Full Load)%20Chassis25Tyre (Front x 2)mm6.50-10-10PR26Tyre (Rear x 2)mm5.00-8-10PR27Front TreadB2(mm)89028Rear TreadB3(mm)92029WheelbaseY(mm)1410Weight30Total Weightkg286029902860299031Front Axle Weight Distribution (Full Load)kg381541203815412032Rear Axle Weight Distribution (Full Load)kg54572054572033Front Axle Weight Distribution (No Load)kg120011701200117034Rear Axle Weight Distribution (No Load)kg1660182016601820Power & Transmission35BatteryV/Ah12/9036Engine Model NC485BPGC240NKFC-01(EUIII)37Engine Manufacturer XINCHAIISUZU38Rated Output / r.p.m.kw30/260034.5/250039Rated Torque / r.p.m.N·m131/1800139/180040No.of Cylinder 441Bore x Strokemm85×10086×10242Displacementcc2270236943Fuel Tank CapacityL5044Transmission Type Powershift  (Manual)45Transmission Stage (FWD/RVS) 1/1(2/2)46Operating Pressure (For Attachments) Mpa14.5Certifications

Packaging & Shipping

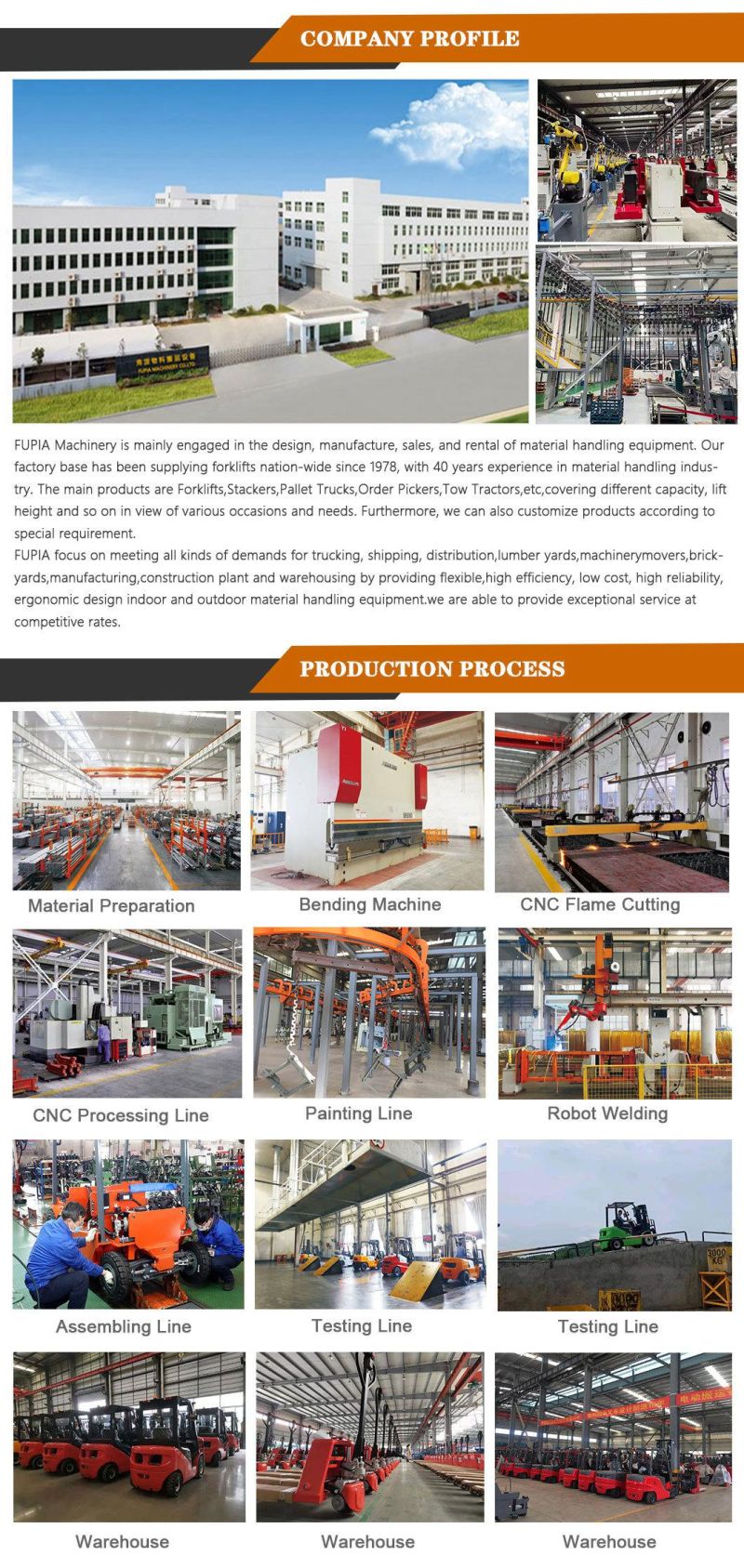

Company Profile
