• Model NO.：FD70T
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1220X150X65mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Certification：CE, ISO9001, ISO14001
• Transport Package：in Nude with Necessary Protection
• Specification：3590x1995x2615mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

FUPIA 5-7Ton diesel forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.

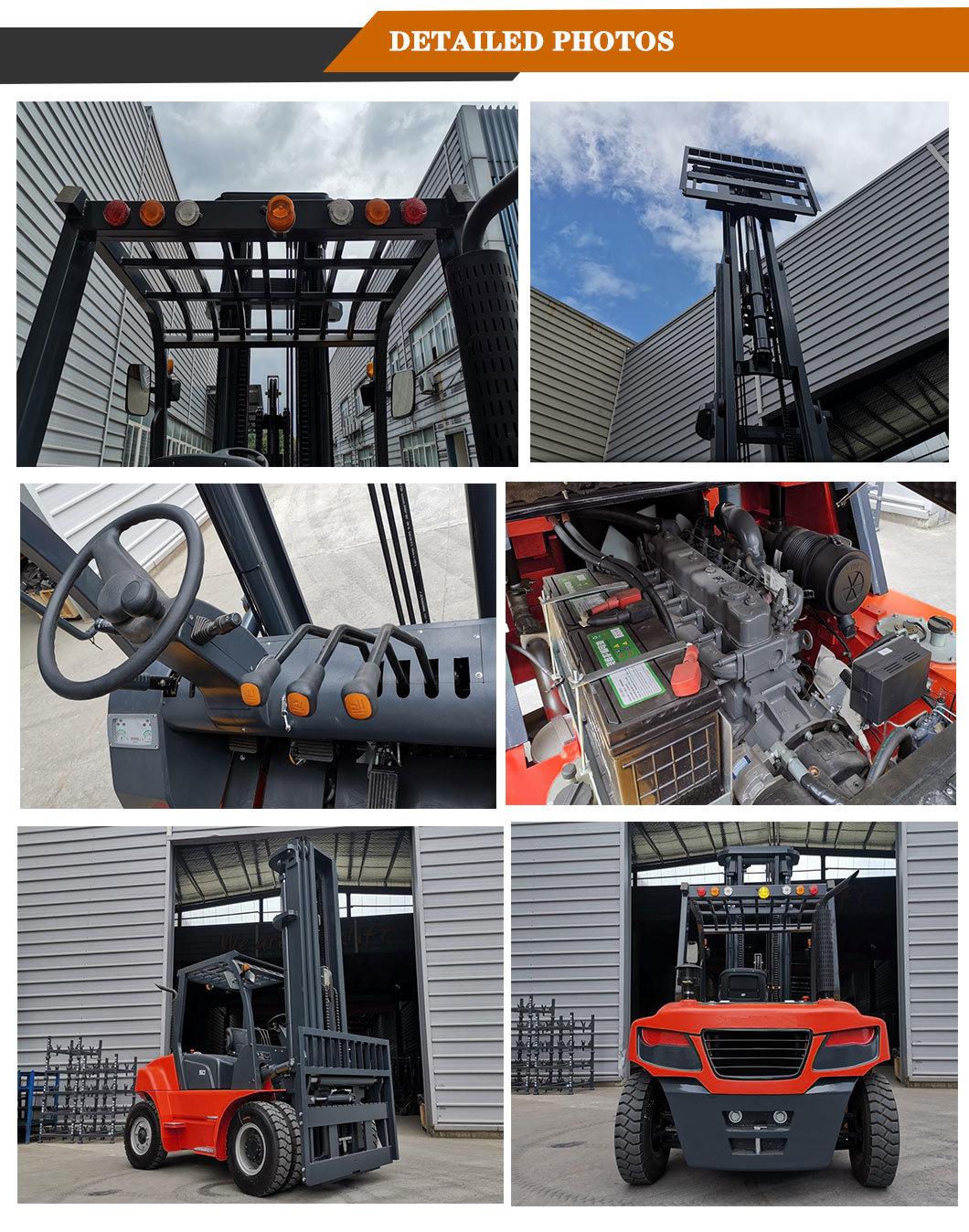

Detailed Photos

Product ParametersGeneral 1Brand FUPIA2Model FD50T-HFD60T-HFD70T-HFD50T-JFFD60T-JFFD70T-JF3Power Type Diesel4Rated Load CapacityQ(kg)5000600070005000600070005Load CentreC(mm)600Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)1528Fork Size (L×W×T)mm1220×150×601220×150×651220×150×601220×150×659Mast Tilt Angle (F/R, α°/β°)deg6°/12°10Fork Overhang (Wheel Center to Fork Face)X1(mm)58511Rear OverhangX2(mm)64072064072012Ground Clearance (Bottom of Mast)H7(mm)20013Length to Face of Fork (Without Fork)L1(mm)351035903510359014Overall WidthB1(mm)199515Mast Lowered HeightH1(mm)251526152515261516Mast Extended Height (With Backrest)H4(mm)443717Overhead Guard HeightH5(mm)241518Turning Radius (Outside)Wa(mm)328033603280336019Min.Aisle width for pallets Ast(mm)5285536552855365Performance20Travel Speed (No Load)km/h2021Lifting Speed (Full Load)mm/sec40033050046022Lowering Speed  (Full Load)mm/sec50023Max.Drawbar Pull (Full Load)KN5352545324Max.Gradeability (Full Load)%322724353229Chassis25Tyre (Front x 4)mm8.25-15-14PR26Tyre (Rear x 2)mm8.25-15-14PR27Front Treadmm147028Rear Treadmm170029WheelbaseY(mm)2250Weight30Total Weightkg79808640935079808640935031Front Axle Weight Distribution (Full Load)kg11660130501457011660130501457032Rear Axle Weight Distribution (Full Load)kg13201590178013201590178033Front Axle Weight Distribution (No Load)kg40103880386040103880386034Rear Axle Weight Distribution (No Load)kg397047605490397047605490Power & Transmission35BatteryV/Ah24/9036Engine Model 6102BG6A-6BG1QC37Engine Manufacturer CHAOCHAIISUZU38Rated Output / r.p.m.kw80.9/250082/200039Rated Torque / r.p.m.N·m353/1650416/1400-160040No.of Cylinder 641Bore x Strokemm102×118105×12542DisplacementL5.7856.49443Fuel Tank CapacityL12044Transmission Type Powershift45Transmission Stage (FWD/RVS) 2/246Operating Pressure (For Attachments) Mpa17Certifications

Packaging & Shipping

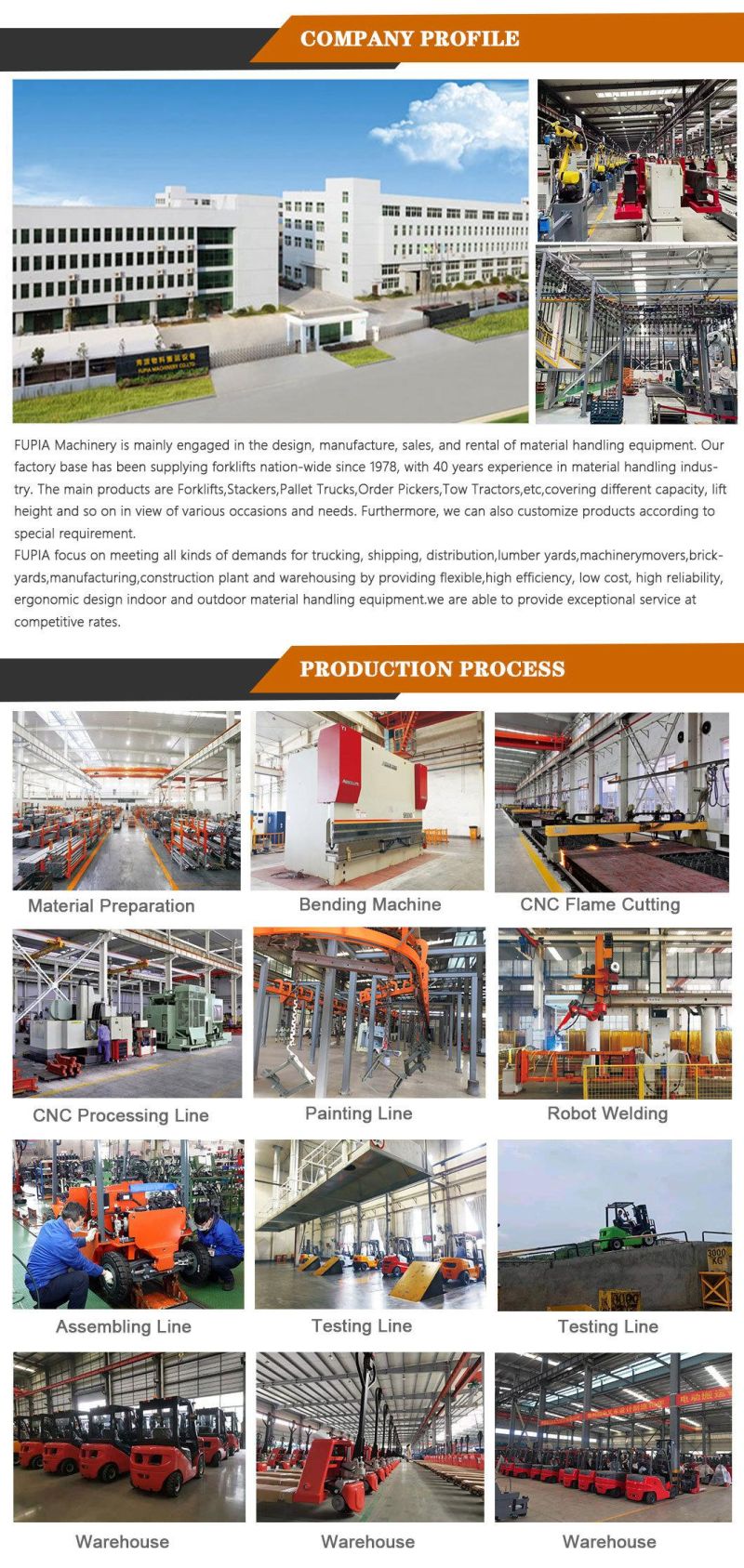

Company Profile

After Sales Service

FAQ
