• Model NO.：FD25T
• Fuel：Diesel
• Load center：500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1070X120X40mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Certification：CE, ISO9001, ISO14001
• Transport Package：in Nude with Necessary Protection
• Specification：2643x1150x2215mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

FUPIA 1.5-3.5Ton diesel forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.

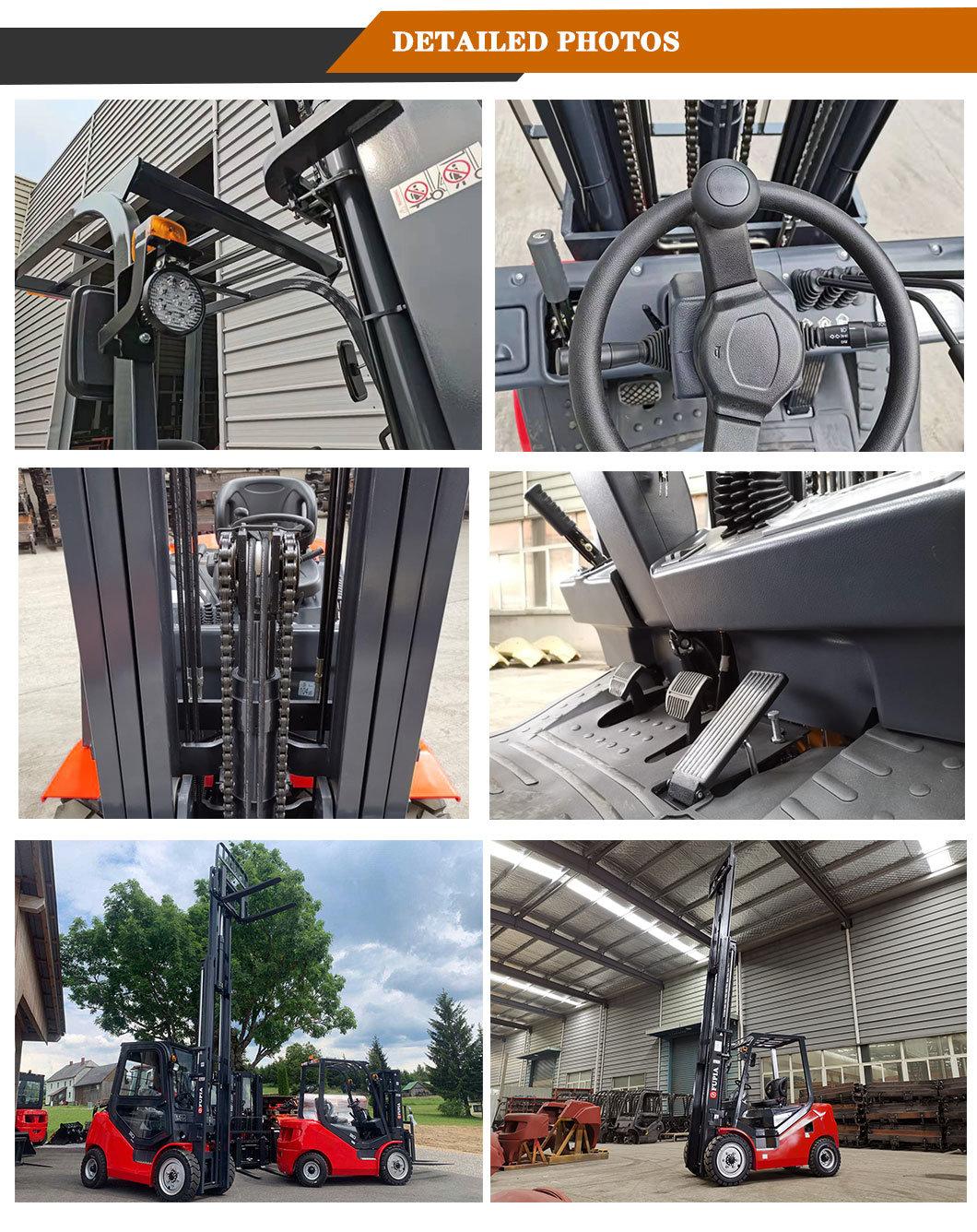

Detailed Photos

Product Parameters General 1Brand FUPIA2Model FD20-FFD25-FFD20-JBFD25-JB3Power Type  Diesel4Rated Load CapacityQ(kg)20002500200025005Load CentreC(mm)500 Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)1008Fork Size (L×W×T)mm1070×120×409Mast Tilt Angle (F/R, α°/β°)deg6°/12°10Fork Overhang (Wheel Center to Fork Face)X1(mm)47911Rear OverhangX2(mm)52012Ground Clearance (Bottom of Mast)H7(mm)13013Length to Face of Fork (Without Fork)L1(mm)266014Overall WidthB1(mm)115015Mast Lowered HeightH1(mm)205516Mast Extended Height (With Backrest)H4(mm)407017Overhead Guard HeightH5(mm)221518Turning Radius (Outside)Wa(mm)236519Min.Aisle width for pallets Ast(mm)4120Performance20Travel Speed (No Load)km/h1921Lifting Speed (Full Load)mm/sec49022Lowering Speed  (Full Load)mm/sec45023Max.Drawbar Pull (Full Load/No Load)KN13.5 / 1724Max.Gradeability (Full Load)%20Chassis25Tyre (Front x 2)mm7.00-12-12PR26Tyre (Rear x 2)mm6.00-9-10PR27Front TreadB2(mm)97028Rear TreadB3(mm)98029WheelbaseY(mm)1650Weight30Total Weightkg338536053385360531Front Axle Weight Distribution (Full Load)kg484654944846549432Rear Axle Weight Distribution (Full Load)kg53861053861033Front Axle Weight Distribution (No Load)kg135414421354144234Rear Axle Weight Distribution (No Load)kg2031216320312163Power & Transmission35BatteryV/Ah12/9036Engine Model C490BPG -37 (EUIII)C240NKFC-01 (EUIII)37Engine Manufacturer  XINCHAI ISUZU38Rated Output / r.p.m.kw36.8/265034.5/250039Rated Torque / r.p.m.N·m156/1800139/180040No.of Cylinder 441Bore x Strokemm90×10586×10242Displacementcc2670236943Fuel Tank CapacityL5044Transmission Type Powershift  ( Manual)45Transmission Stage (FWD/RVS) 1/1(2/2)46Operating Pressure (For Attachments) Mpa17.5Certifications

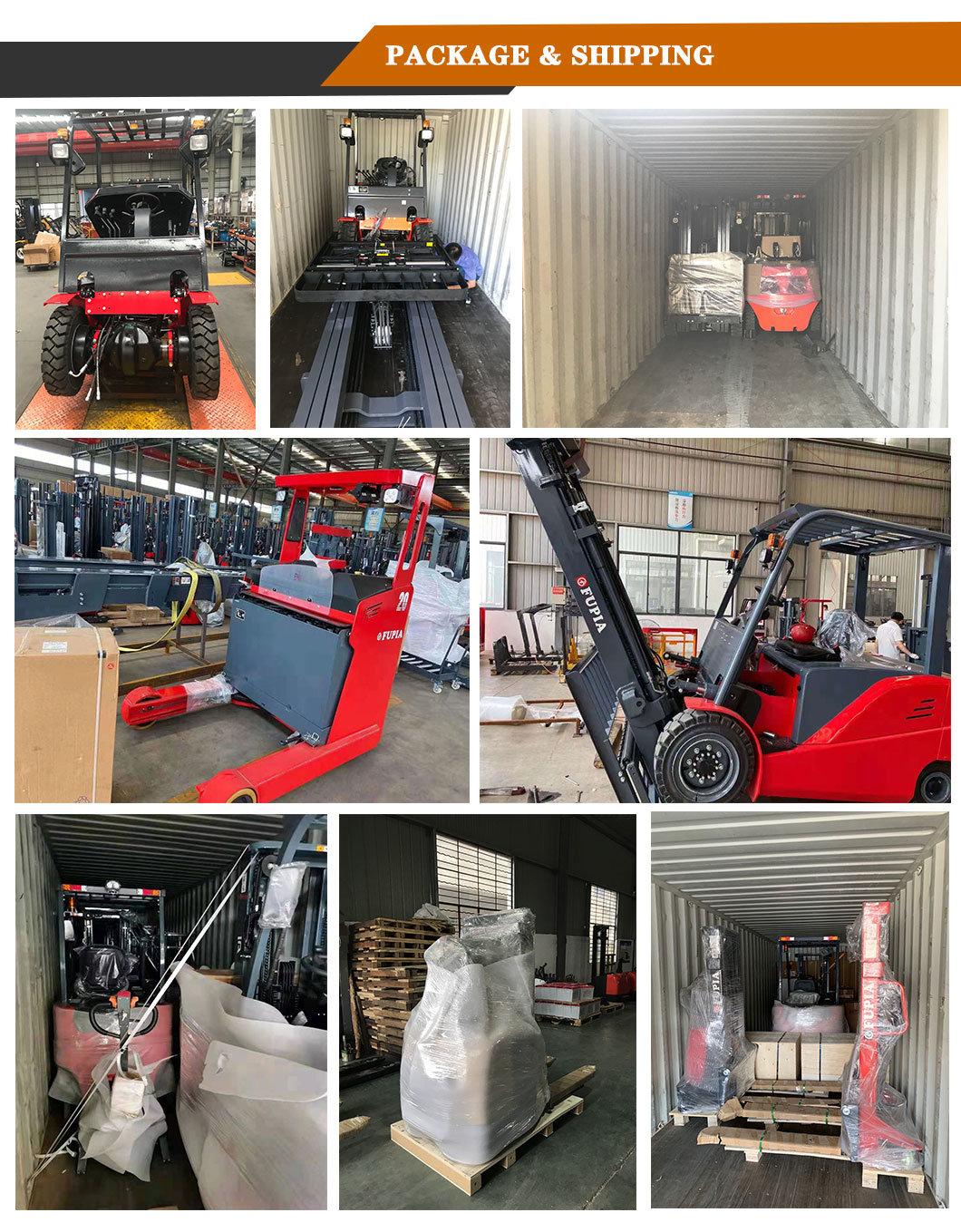

Packaging & Shipping
