• Model NO.：FD50T
• Fuel：Diesel
• Load center：500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1070X125X45mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Certification：CE, ISO9001, ISO14001
• Transport Package：in Nude with Necessary Protection
• Specification：3125x1485x2260mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

FUPIA 4-5Ton diesel forklift is a perfect forklift for outdoor and indoor applications such as trucking, warehouse, shipping, distribution, lumber yards, machinery movers, brickyards, manufacturing,construction plant and more. It adopts advanced ergonomic technology optimizes the design of control system, improves the comfortable and safe of operation.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.

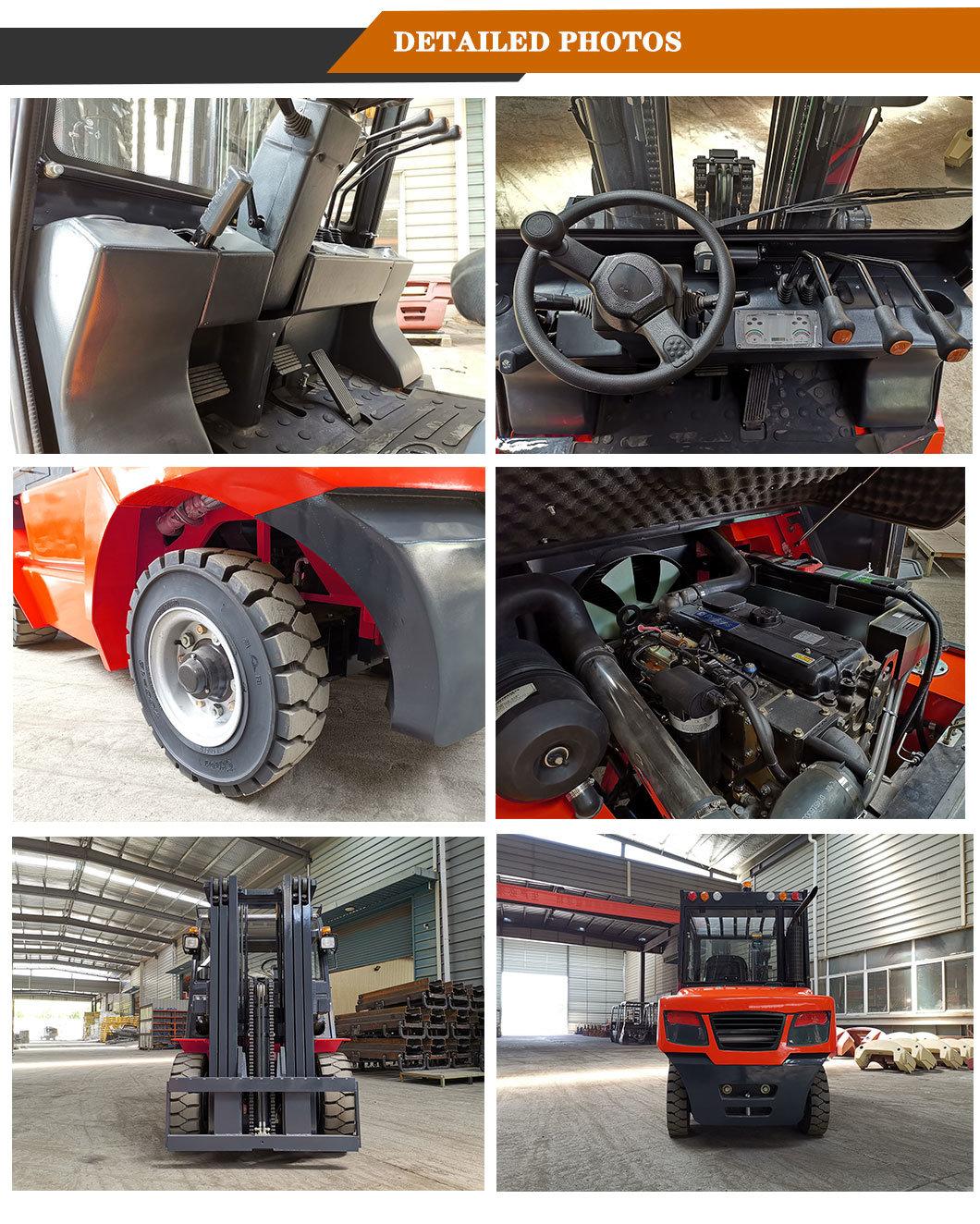

Detailed Photos

Product ParametersGeneral 1Brand FUPIA2Model FD40T-LFD45T-LFD50T-LFD40T-JKFD45T-JKFD50T-JK3Power Type Diesel4Rated Load CapacityQ(kg)4000450050004000450050005Load CentreC(mm)500Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)848Fork Size (L×W×T)mm1070×150×509Mast Tilt Angle (F/R, α°/β°)deg6°/12°10Fork Overhang (Wheel Center to Fork Face)X1(mm)57811Rear OverhangX2(mm)55057061455057061412Ground Clearance (Bottom of Mast)H7(mm)17513Length to Face of Fork (Without Fork)L1(mm)309131253091312514Overall WidthB1(mm)148515Mast Lowered HeightH1(mm)226016Mast Extended Height (With Backrest)H4(mm)426617Overhead Guard HeightH5(mm)224018Turning Radius (Outside)Wa(mm)279028302790283019Min.Aisle width for pallets Ast(mm)4640468046404680Performance20Travel Speed (No Load)km/h2221Lifting Speed (Full Load)mm/sec45043045043022Lowering Speed  (Full Load)mm/sec48023Max.Drawbar Pull (Full Load)KN>2124Max.Gradeability (Full Load)%≥20%Chassis25Tyre (Front x 2)mm300-15-18PR26Tyre (Rear x 2)mm7.00-12-12PR27Front TreadB2(mm)118028Rear TreadB3(mm)119029WheelbaseY(mm)2000Weight30Total Weightkg66006800710066006800710031Front Axle Weight Distribution (Full Load)kg9010975010500901097501050032Rear Axle Weight Distribution (Full Load)kg15901550160015901550160033Front Axle Weight Distribution (No Load)kg27502710268027502710268034Rear Axle Weight Distribution (No Load)kg385040904420385040904420Power & Transmission35BatteryV/Ah24/8036Engine Model LR4B3-221104D-44 (EUIII)37Engine Manufacturer YTOPerkins38Rated Output / r.p.m.kw57/220056/220039Rated Torque / r.p.m.N·m285/1300-1500260/165040No.of Cylinder 441Bore x Strokemm108×125105×12742DisplacementL4.5784.4443Fuel Tank CapacityL9044Transmission Type Hudraulic45Transmission Stage (FWD/RVS) 2/146Operating Pressure (For Attachments) Mpa19Certifications

Packaging & Shipping

Company Profile

After Sales Service

FAQ
