• Model NO.：CDD09B
• Fuel：Electric

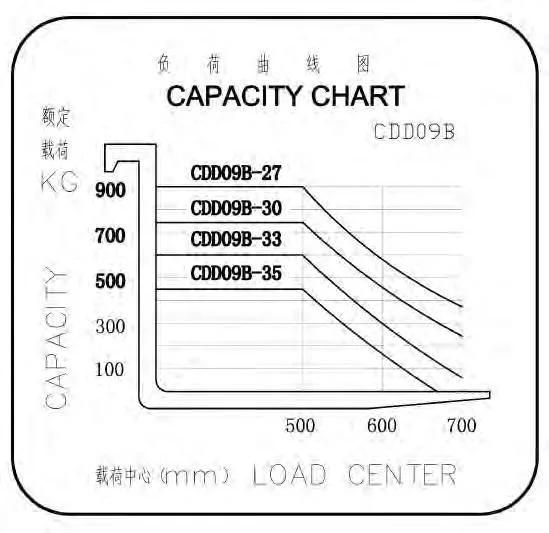

• Load center：450
• Lift height：3000~5000mm
• Condition：New
• Wheel Type：Polyurethane
• Drive Motor：0.75kw
• Lifting Motor：2.2kw
• Battery Type：Lead Acid
• Battery：24V,100ah
• Drive Control Mode：DC
• Mast Retracted Height：2080mm
• Lifting Height：3000mm
• Minimum Turning Radius：1257mm
• Braking：Electromagnetic
• Transport Package：Pallet
• Specification：Electric Stacker
• Trademark：CHEESON
• Origin：China
• HS Code：8427109000
• Production Capacity：5000sets,Year

Basic Info.

Model NO. CDD09B Fuel Electric Load center 450 Lift height 3000~5000mm Condition New Wheel Type Polyurethane Drive Motor 0.75kw Lifting Motor 2.2kw Battery Type Lead Acid Battery 24V/100ah Drive Control Mode DC Mast Retracted Height 2080mm Lifting Height 3000mm Minimum Turning Radius 1257mm Braking Electromagnetic Transport Package Pallet Specification Electric Stacker Trademark CHEESON Origin China HS Code 8427109000 Production Capacity 5000sets/Year

Product Description

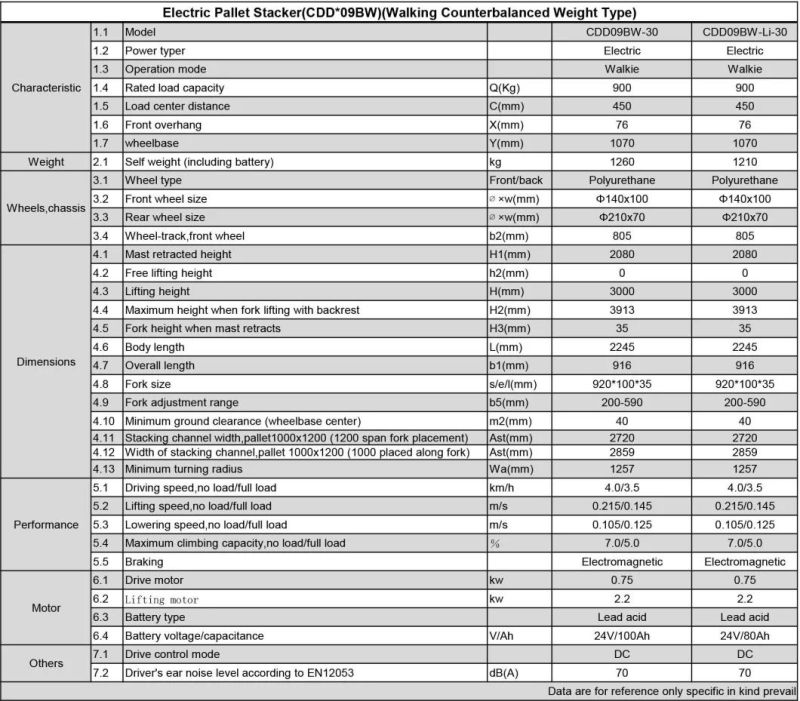

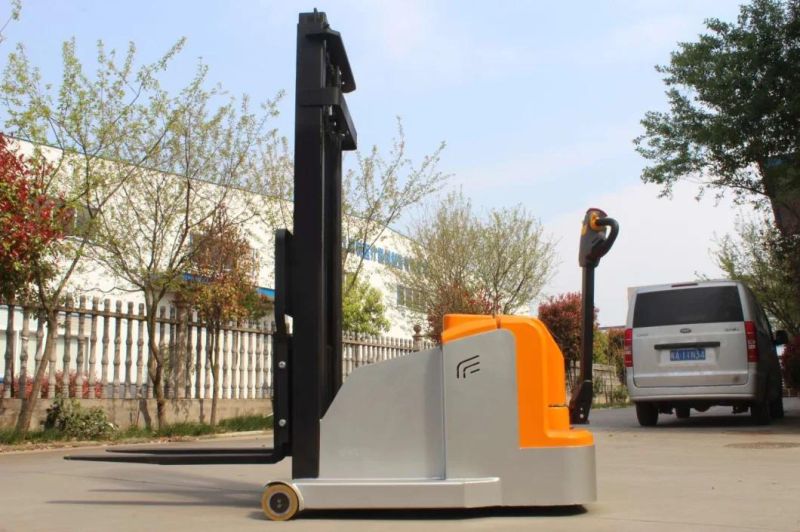

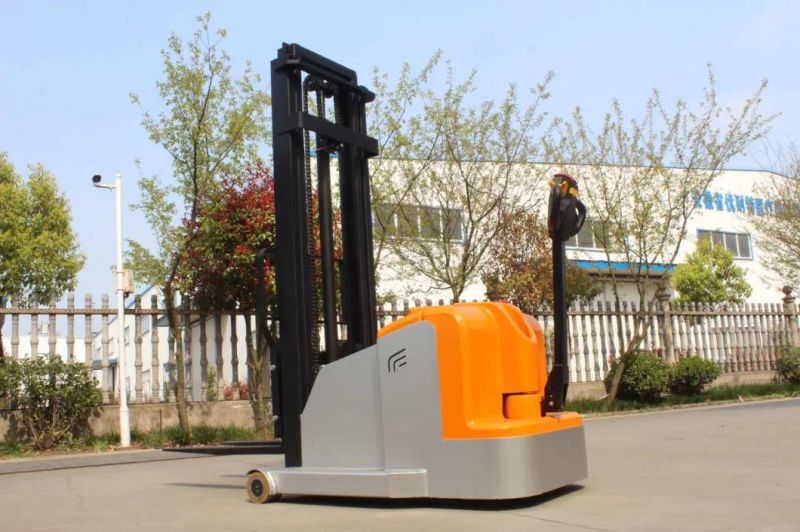

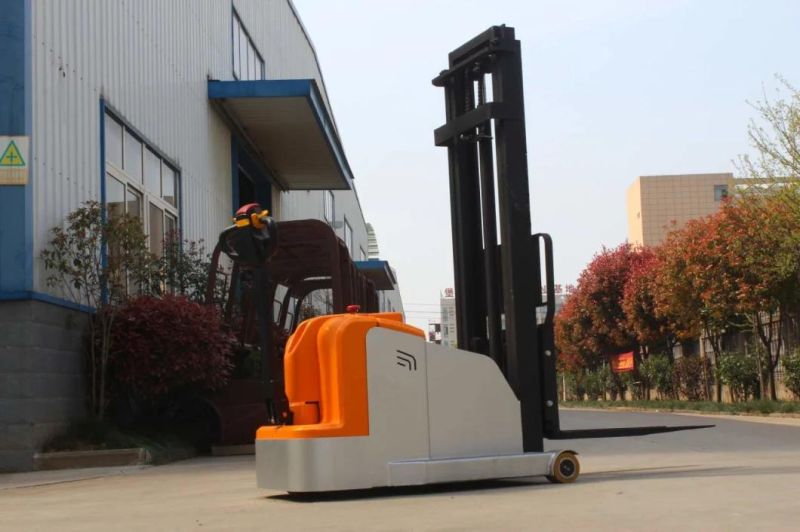

Electric Pallet Stacker(CDD*09BW)(Walking Counterbalanced Type)


01 Compared with similar products in the market, we have smaller turning radius and channels, larger load center distance (500mm), and better performance.

02  Curtis controller, imported waterproof and dustproof plug-in. More reliable protection is provided for the circuit, greatly reducing the electrical fault, and the 48V system can be configured at a high level.

03  Maintenance free battery (optional lithium battery), no need to add liquid, maintenance and labor-saving.

04 Built in charger. It is easy to charge and can be charged by turning over the cover.

05  Excellent layout structure. The disassembly and assembly of components is simple and convenient for maintenance.

06 Ergonomically designed operating system. Independent and easy to realize operation function, simple and beautiful, more comfortable operation.
