• Model NO.：CDD
• Condition：New
• Operate Type：Standing Type
• Overall Width：850
• Overall Length：2110
• Turning Radius：1795
• Driving Motor：1.5kw
• Lift Motor：2.2kw
• Battery Type：Lead Acid
• Drive Motor Type：AC
• Battery：24V,210ah
• Transport Package：Pallet
• Specification：Electric Stacker
• Trademark：CHEESON
• Origin：China
• HS Code：8427109000
• Production Capacity：5000sets,Year

Basic Info.

Model NO. CDD Condition New Operate Type Standing Type Overall Width 850 Overall Length 2110 Turning Radius 1795 Driving Motor 1.5kw Lift Motor 2.2kw Battery Type Lead Acid Drive Motor Type AC Battery 24V/210ah Transport Package Pallet Specification Electric Stacker Trademark CHEESON Origin China HS Code 8427109000 Production Capacity 5000sets/Year

Product Description

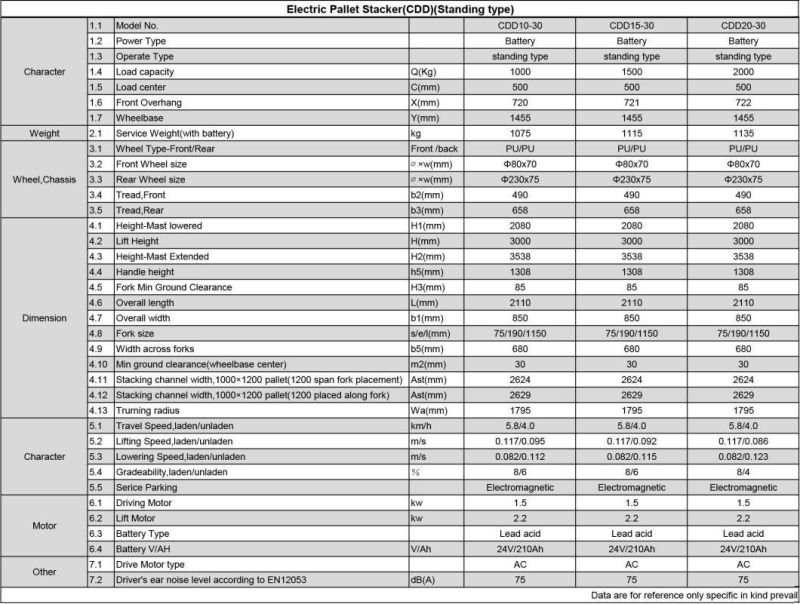

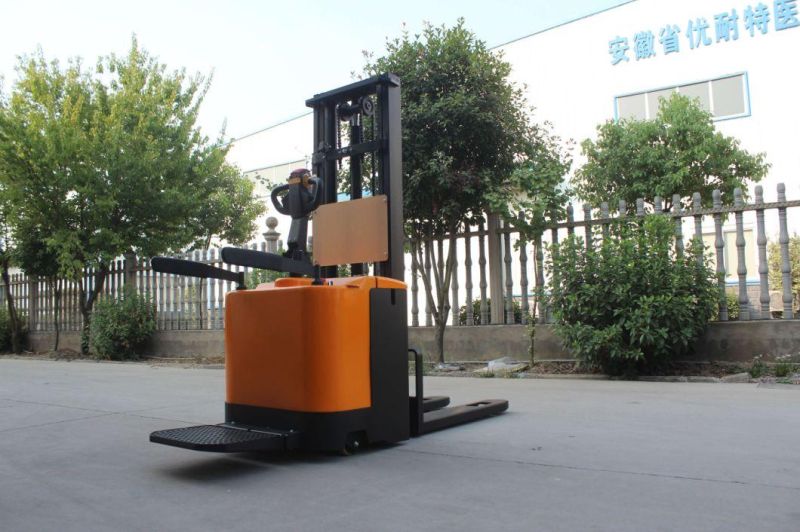

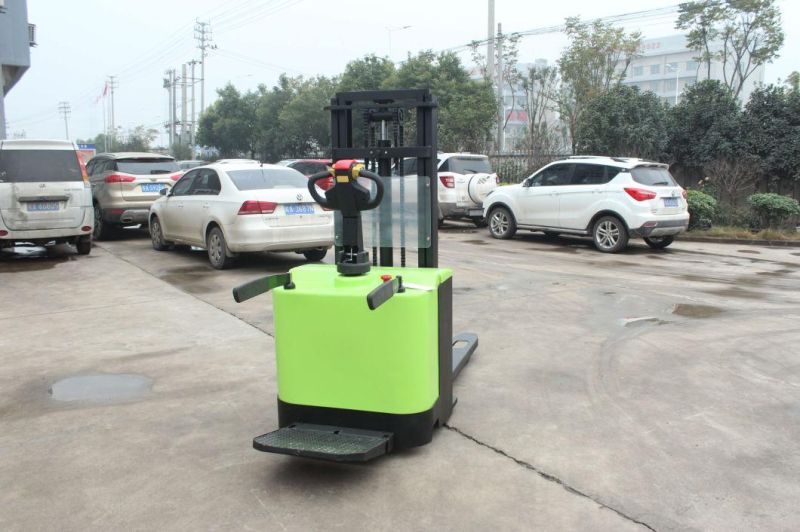

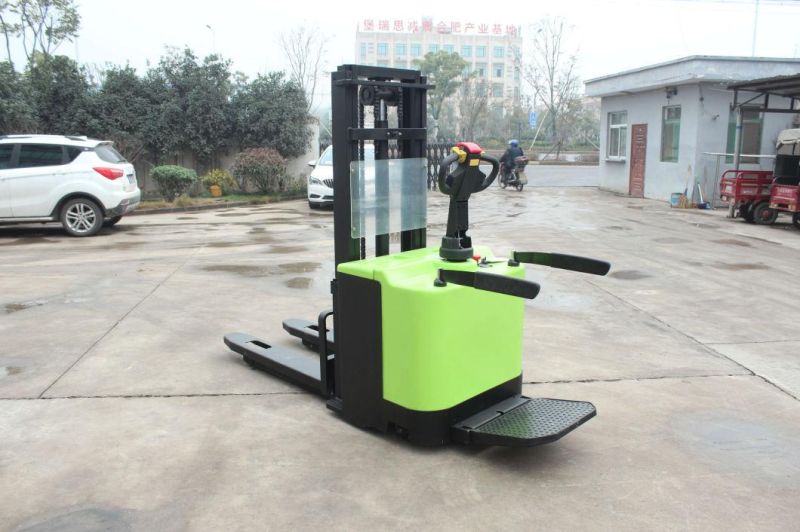

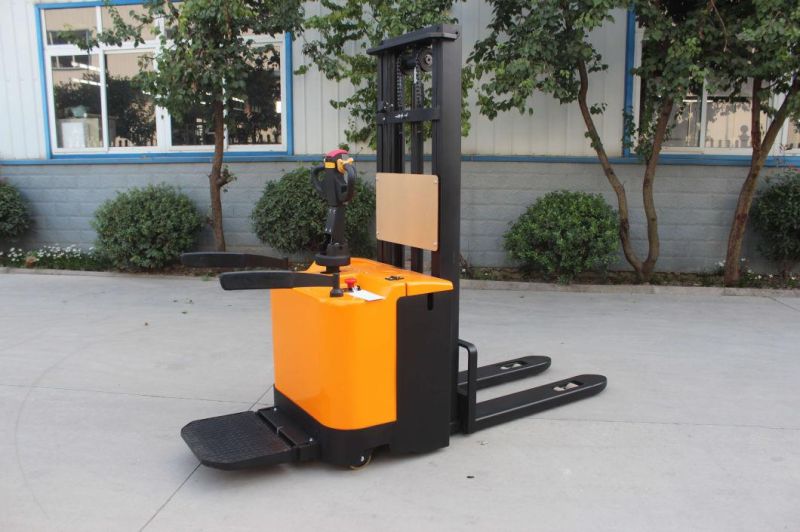

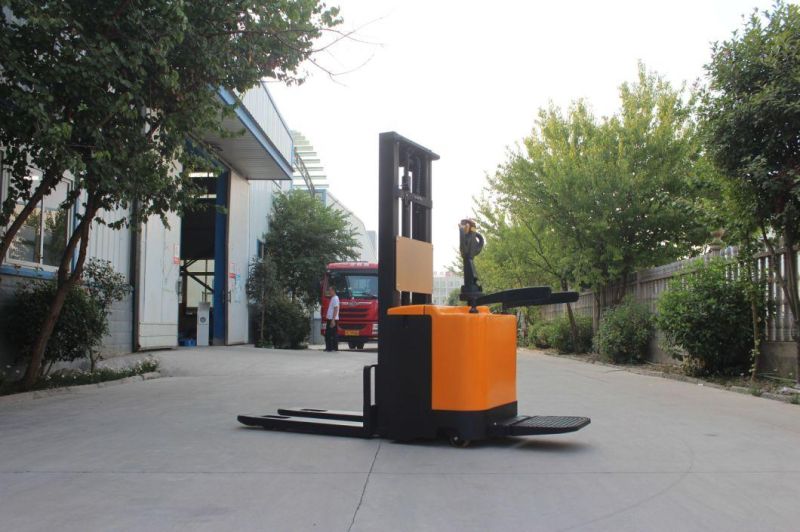

Electric Pallet Stacker(CDD)(Standing Type)

01 CURTIS electronic control, multiple automatic protection system controller.

02 Without frequent adjustment, the damping spring can actively adjust the vertical driving unit according to the road conditions, reduce the impact on the driving unit, balance the force on the driving balance wheel, and improve the smooth operation efficiency.

03 High quality hydraulic system with buffer, low noise, small vibration, good sealing, stable and reliable lifting and lowering.

04 AC drive, no carbon brush, maintenance free, efficient motor, precise control, strong power output.

05 As a standard configuration, the emergency power-off switch can cut off all the power supply by pressing the emergency stop button. The car stops immediately or cuts off power quickly in case of emergency, providing safety protection.

06 Multi functional handle, integrated control (acceleration, horn, emergency anti-collision, lifting button), human-machine design and operation more comfortable.

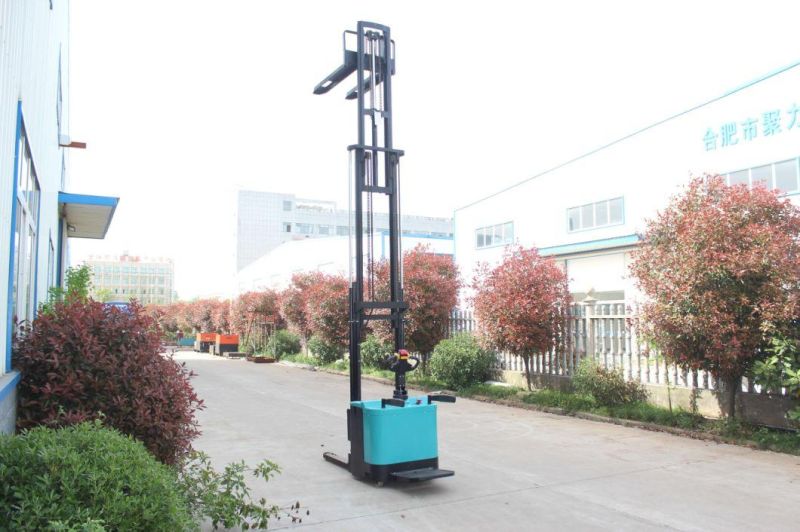

07  Wide view design of gantry, special channel steel, high strength.
