• Model NO.：CQD*A
• Fuel：Electric
• Load center：500mm
• Lift height：2500
• Condition：New
• Wheel Type：PU
• Overall Width：1034mm
• Minimum Ground Clearance：70mm
• Braking：Electromagnetic
• Drive Motor：1.5kw
• Lifting Motor：2.2kw
• Battery Type：Lead Acid
• Battery V/Ah：24V,210ah
• Drive Control Mode：AC
• Transport Package：Pallet
• Specification：Electric Reach Stacker
• Trademark：CHEESON
• Origin：China
• HS Code：8427109000
• Production Capacity：5000sets,Year

Basic Info.

Model NO. CQD*A Fuel Electric Load center 500mm Lift height 2500 Condition New Wheel Type PU Overall Width 1034mm Minimum Ground Clearance 70mm Braking Electromagnetic Drive Motor 1.5kw Lifting Motor 2.2kw Battery Type Lead Acid Battery V/Ah 24V/210ah Drive Control Mode AC Transport Package Pallet Specification Electric Reach Stacker Trademark CHEESON Origin China HS Code 8427109000 Production Capacity 5000sets/Year

Product Description

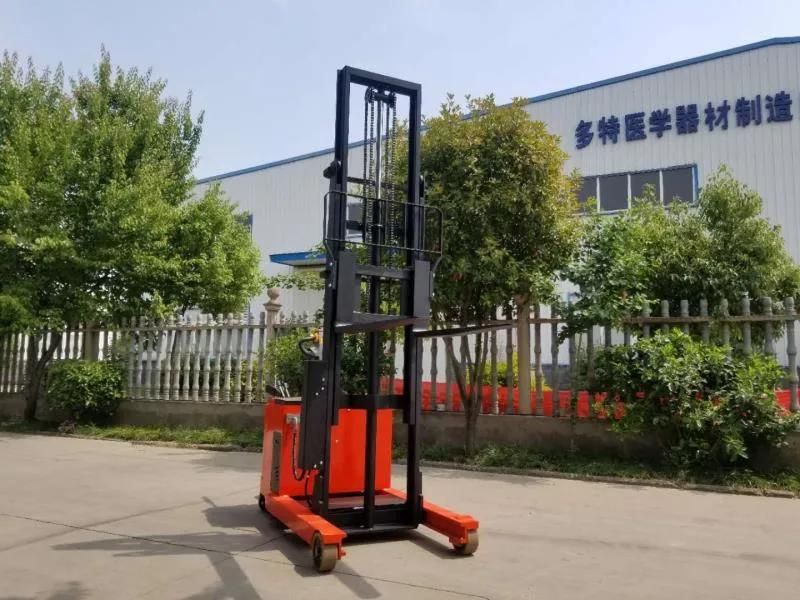

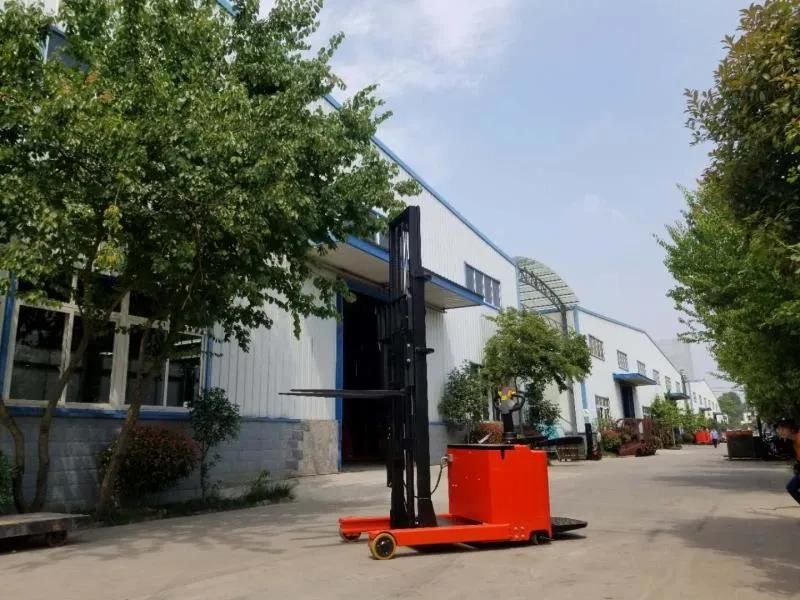

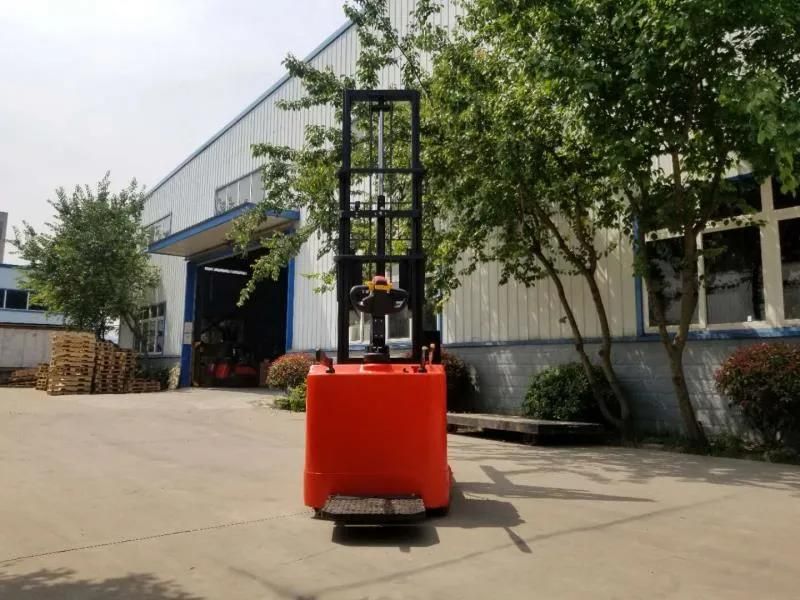

Electric Reach Truck Forklift(CQD*A)(Standing Type)


01 Curtis electric control and controller multiple automatic protection system.

02 Without frequent adjustment, the damping spring can actively adjust the vertical driving unit according to the road conditions, reduce the impact on the driving

unit, balance the force on the driving balance wheel, and improve the smooth operation efficiency.

03 High quality hydraulic system with buffer has the character of low noise, small vibration, good sealing,stable and reliable lifting and lowering.

04  Anti slip braking function prevent the forklift from sliding when it is out of control or driving on slope.

05 AC drive, no carbon brush, maintenance free, efficient motor, precise control, strong power output.

06 Multi functional handle, integrated control (acceleration, horn, emergency anti-collision, lifting button), human-machine design and operation more comfortable.

07 The gantry is designed with wide field of vision, special channel steel, high strength, with the characteristics of the overall forward movement of the gantry.

Adjustable forging fork can easy to apply to a variety of pallets, small turning radius, ignoring the obstacles at the bottom of the shelf.
