• Model NO.：ES12-12WAi
• Lift height：2930
• Condition：New
• Rated Loading Capacity：1200kg
• Max. Lifting Height：2930mm
• Min. Lifting Height：95mm
• Fork Length：1150mm
• Fork Width：190mm
• Service Weight：915kg
• Tyre Type：PU
• Travel Speed：5,5.5 Km,H
• Lifting Speed：0.11,0.16 M,S
• Battery Voltage：24V,210ah
• Transport Package：Standard Export Packing
• Specification：1847mm*800mm*1970mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES12-12WAi Lift height 2930 Condition New Rated Loading Capacity 1200kg Max. Lifting Height 2930mm Min. Lifting Height 95mm Fork Length 1150mm Fork Width 190mm Service Weight 915kg Tyre Type PU Travel Speed 5/5.5 Km/H Lifting Speed 0.11/0.16 M/S Battery Voltage 24V/210ah Transport Package Standard Export Packing Specification 1847mm*800mm*1970mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

Distinguishing mark
1.1	Manufacturer			EP	EP
1.2	Model designation			ES10-10WAi	ES12-12WAi
1.3	Drive unit			Battery	Battery
1.4	Operator type			Pedestrian	Pedestrian
1.5	rated capacity	Q	kg	1000	1200
1.6	Load center distance	c	mm	600	600
1.8	Load distance,centre of drive axle to fork	x	mm	701	701
1.9	Wheelbase	y	mm	1275	1275
Weight
2.1	Service weight (include battery)		kg	920	940
2.2	Axle loading, laden driving side/loading side		kg	705/1215	735/1405
2.3	Axle loading, unladen  driving side/loading side		kg	635/285	640/300
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			PU/PU	PU/PU
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф230×75	Ф230×75
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф85×70	Ф85×70
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф130×55	Ф130×55
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x +1/4	1x +1/4
3.6	Track width, front,driving side	b10	mm	538	538
3.7	Track width,rear,loading side	b11	mm	370	370

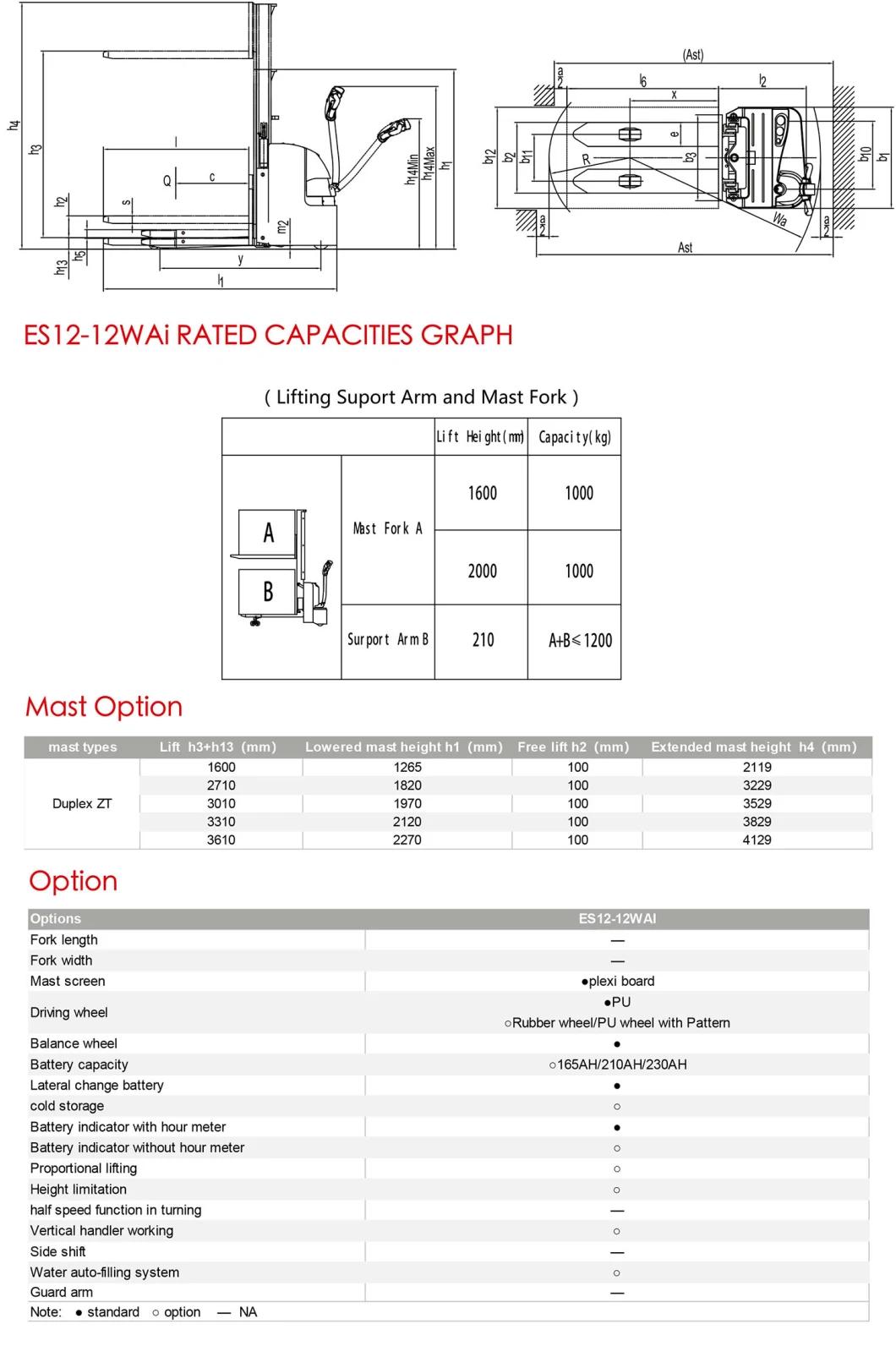

Dimensions
4.2	Height, mast lowered	h1	mm	1970	1970
4.3	Free lift	h2	mm	100	100
4.4	Lift height	h3	mm	2930	2930
4.5	Height, mast extended	h4	mm	3529	3529
4.6	Initial lift	h5	mm	120	120
4.9	Height drawbar in driving position min./max.	h14	mm	715/1200	715/1200
4.15	Lowered height	h13	mm	95	95
4.19	Overall length	l1	mm	1847	1847
4.20	Length to face of forks	l2	mm	697	697
4.21	Overall width	b1	mm	800	800
4.22	Fork dimensions	s/ e/ l	mm	60×190×1150	60×190×1150
4.24	Fork carriage width	b3	mm	680	680
4.25	Distance between fork-arms	b5	mm	560	560
4.32	Ground clearance, center of wheelbase	m2	mm	30	30
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2378	2378
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2350	2350
4.35	Turning radius	Wa	mm	1510	1510
Performance data
5.1	Travel speed, laden/ unladen		km/ h	5.0/5.5	5.0/5.5
5.2	Lifting speed, laden/ unladen		m/ s	0.11/0.16	0.11/0.16
5.3	Lowering speed, laden/ unladen		m/ s	0.19/0.18	0.19/0.18
5.8	Max. gradeability, laden/unladen		%	8/ 16	8/ 16
5.10	Service brake type			Electromagnetic	Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.1	1.1
6.2	Lift motor rating at S3 15%		kW	2.2	2.2
6.3	The maximum allowed size battery		mm	788×180×560	788×180×560
6.4	Battery voltage/nominal capacity K5		V/ Ah	24/160	24/210
6.5	Battery weight		kg	165	190
Addition data
8.1	Type of drive unit			AC	AC
10.5	Steering type			Machanical Steering	Machanical Steering
10.7	Sound pressure level at the driver's ear		dB (A)	74	74
