• Model NO.：ES12-12MMi
• Lift height：3230
• Condition：New
• Rated Loading Capacity：1200kg
• Max. Lifting Height：2090mm
• Min. Lifting Height：95mm
• Fork Length：1150mm
• Fork Width：190mm
• Service Weight：520kg
• Tyre Type：PU
• Travel Speed：4,4.5 Km,H
• Lifting Speed：0.1,0.14 M,S
• Battery Voltage：24V,85ah
• Transport Package：Standard Export Packing
• Specification：1750mm*796mm*1940mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES12-12MMi Lift height 3230 Condition New Rated Loading Capacity 1200kg Max. Lifting Height 2090mm Min. Lifting Height 95mm Fork Length 1150mm Fork Width 190mm Service Weight 520kg Tyre Type PU Travel Speed 4/4.5 Km/H Lifting Speed 0.1/0.14 M/S Battery Voltage 24V/85ah Transport Package Standard Export Packing Specification 1750mm*796mm*1940mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

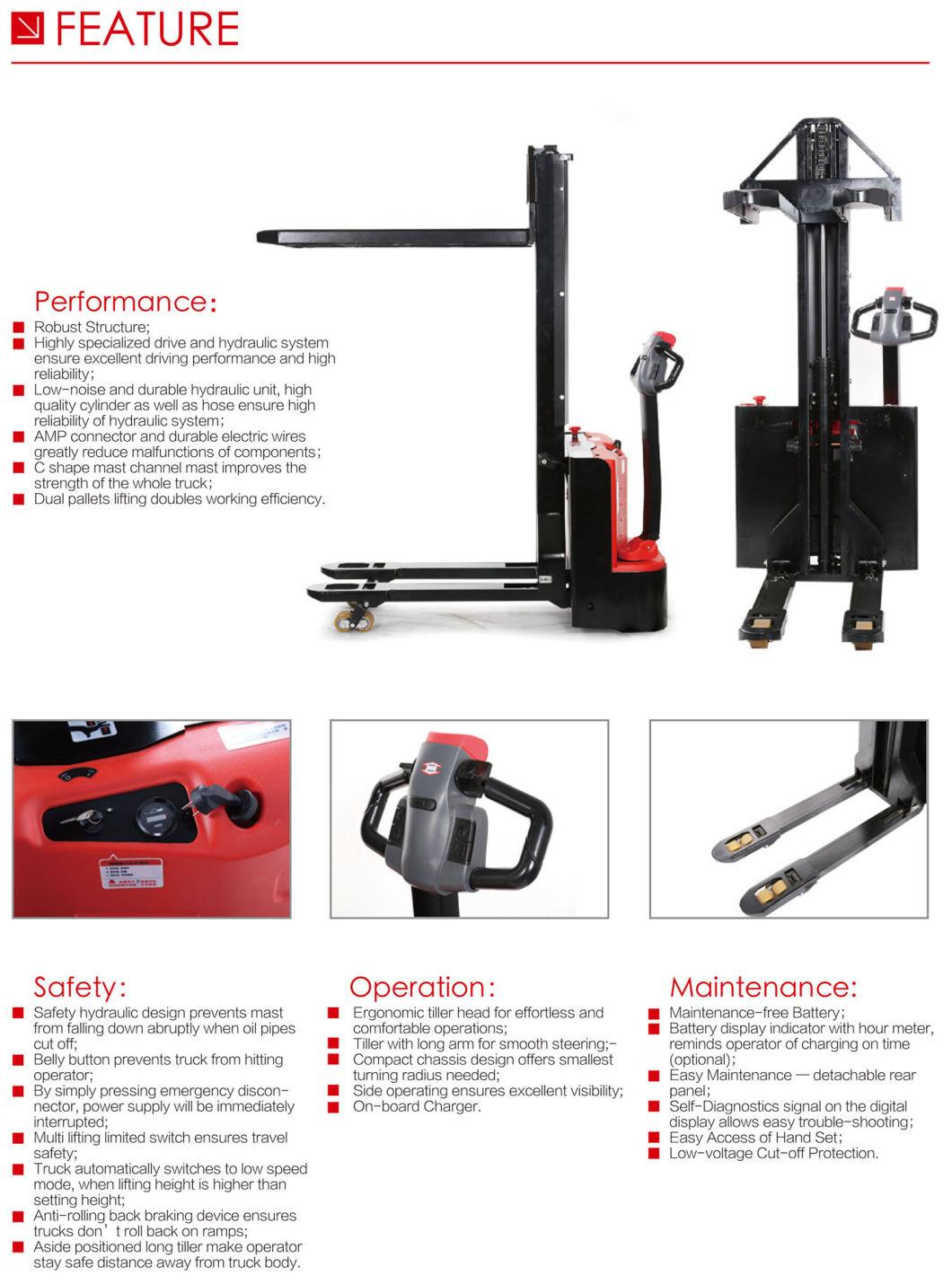

Product Description

Distinguishing mark
1.1	Manufacturer			EP
1.2	Model designation			ES12-12MMi
1.3	Drive unit			Electric
1.4	Operator type			pedestrian
1.5	rated capacity	Q	kg	1200
1.6	Load center distance	c	mm	600
1.8	Load distance,centre of drive axle to fork	x	mm	805
1.9	Wheelbase	y	mm	1260
Weight
2.1	Service weight (include battery)		kg	520
2.2	Axle loading, laden driving side/loading side		kg	560/1160
2.3	Axle loading, unladen  driving side/loading side		kg	350/170
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			PU/PU
3.2	Tyre size, driving wheels(diameter×width)		mm	Ø210×70
3.3	Tyre size, loading wheels(diameter×width)		mm	Ø80×60
3.4	Tyre size, caster wheels(diameter×width)		mm	Ø130×55
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x +1/4
3.6	Track width, front,driving side	b10	mm	533
3.7	Track width,rear,loading side	b11	mm	370

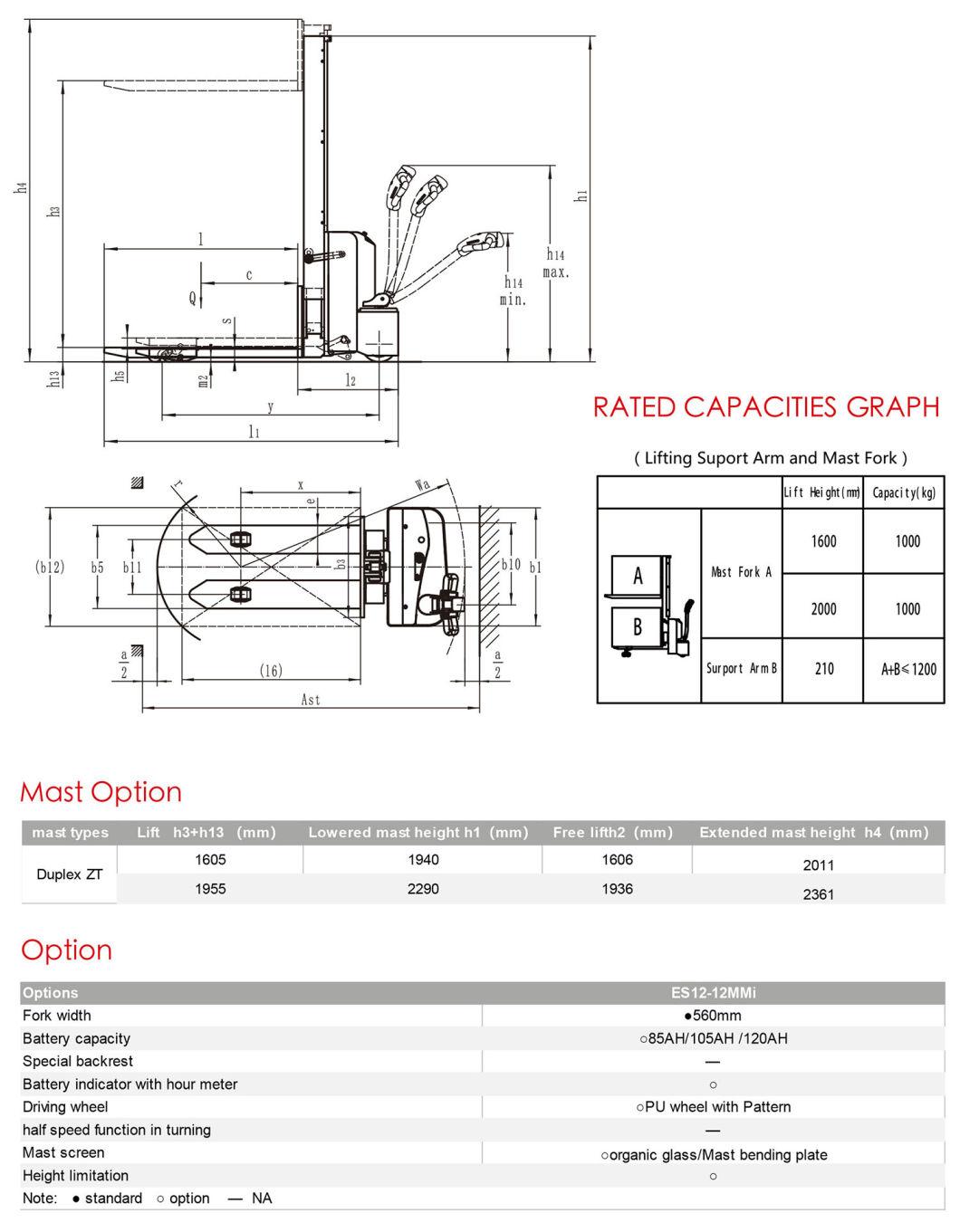

Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/ β	°
4.2	Height, mast lowered	h1	mm	1940
4.3	Free lift	h2	mm	1480
4.4	Lift height	h3	mm	1520
4.5	Height, mast extended	h4	mm	2090
4.6	Initial lift	h5	mm	115
4.9	Height drawbar in driving position min./max.	h14	mm	860/ 1200
4.10	Height of wheel arms	h8	mm
4.15	Lowered height	h13	mm	95
4.19	Overall length	l1	mm	1750
4.20	Length to face of forks	l2	mm	600
4.21	Overall width	b1	mm	796
4.22	Fork dimensions	s/ e/ l	mm	60/190/1150
4.24	Fork carriage width	b3	mm	680
4.25	Distance between fork-arms	b5	mm	560
4.26	Distance between wheel arms	b4	mm
4.31	Ground clearance, laden, below mast	m1	mm
4.32	Ground clearance, center of wheelbase	m2	mm	26
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2340
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2260
4.35	Turning radius	Wa	mm	1500
Performance data
5.1	Travel speed, laden/ unladen		km/ h	4/4.5
5.2	Lifting speed, laden/ unladen		m/ s	0.10/0.14
5.3	Lowering speed, laden/ unladen		m/ s	0.10/0.07
5.8	Max. gradeability, laden/unladen		%	3/10
5.10	Service brake type			Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	0.65
6.2	Lift motor rating at S3 15%		kW	2.2
6.3	The maximum allowed size battery		mm	300x180x230
6.4	Battery voltage/nominal capacity K20		V/ Ah	2x12/85
6.5	Battery weight		kg	2x25
Addition data
8.1	Type of drive unit
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver's ear		dB(A)	74
