1t 1000kg Forklift Truck Electric Forklift with Ce
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- Cab Location：Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1.0t
- Fuel：Electric
- Load center：400
Base Info
- Model NO.：CPD10TVE3
- Lift height：3000-6000mm
- Condition：New
- Certification：Ce
- Operator Type：Seated
- Self Weight：1830kg
- Tyre Type：PU
- Height,Mast Lowered：1985mm
- Turning Radius：1450mm
- Travel Speed：6,8 Km,H
- Lifting Speed：0.13,0.2
- Service Brake：Electromagnetic,Hydrualic
- Battery Voltage：24V,240ah
- Transport Package：Standard Export Packing
- Specification：2530mm*948mm*1985mm
- Trademark：EP
- Origin：China
- HS Code：8427109000
- Production Capacity：4000
Description
Basic Info.
Model NO. CPD10TVE3 Lift height 3000-6000mm Condition New Certification Ce Operator Type Seated Self Weight 1830kg Tyre Type PU Height,Mast Lowered 1985mm Turning Radius 1450mm Travel Speed 6/8 Km/H Lifting Speed 0.13/0.2 Service Brake Electromagnetic/Hydrualic Battery Voltage 24V/240ah Transport Package Standard Export Packing Specification 2530mm*948mm*1985mm Trademark EP Origin China HS Code 8427109000 Production Capacity 4000Product Description
Specification:| Distinguishing mark | ||||||||
| 1.1 | Manufacturer | EP | EP | EP | EP | EP | ||
| 1.2 | Model designation | CPD05TVE3 | CPD08TVE3 | CPD10TVE3 | CPD12TVE3 | CPD15TVE3 | ||
| 1.3 | Drive unit | Electrics | Electrics | Electrics | Electrics | Electrics | ||
| 1.4 | Operator type | seated | seated | seated | seated | seated | ||
| 1.5 | rated capacity | Q | t | 0.5 | 0.8 | 1 | 1.2 | 1.5 |
| 1.6 | Load center distance | c | mm | 400 | 400 | 400 | 400 | 500 |
| 1.8 | Load distance,centre of drive axle to fork | x | mm | 182.5 | 182.5 | 243.5 | 243.5 | 183.5 |
| 1.9 | Wheelbase | y | mm | 1070 | 1070 | 1150 | 1150 | 1295 |
| Weight | ||||||||
| 2.1 | Service weight (include battery) | kg | 1195 | 1475 | 1830 | 1940 | 2160 | |
| 2.2 | Axle loading, laden driving wheels /steering wheels | kg | 1420/275 | 1910/365 | 2470/360 | 2670/470 | 3105/555 | |
| 2.3 | Axle loading, unladen driving wheels /steering wheels | kg | 565/630 | 700/775 | 800/1030 | 800/1140 | 800/1360 | |
| Types,Chassis | ||||||||
| 3.1 | Tyre type,driving wheels /steering wheels | polyurethane | polyurethane | polyurethane | polyurethane | polyurethane | ||
| 3.2 | Tyre size, driving wheels | 230/75 | 230/75 | 285/108 | 285/108 | 285/108 | ||
| 3.3 | Tyre size, steering wheels | 230/75 | 230/75 | 230/75 | 230/75 | 260/105 | ||
| 3.5 | Wheels, number driving/steering (x=drive wheels) | mm | 2/1x | 2/1x | 2/1x | 2/1x | 2/1x | |
| 3.6 | Tread, Driving wheels | b10 | mm | 830 | 830 | 830 | 830 | 910 |
| 3.7 | Tread, Steering wheels | b11 | mm | -- | -- | -- | -- | -- |
| Dimensions | ||||||||
| 4.1 | Tilt of mast/fork carriage forward/backward | α/ β (°) | 2°/2° | 2°/ 2° | 2°/ 2° | 2°/ 2° | 2°/ 2° | |
| 4.2 | Height, mast lowered | h1 | mm | 2060 | 2060 | 1985 | 1985 | 1985 |
| 4.3 | Free lift (load backrest) | h2 | mm | -- | -- | 120 | 120 | 120 |
| 4.4 | Lift height | h3 | mm | 2950 | 2950 | 2930 | 2930 | 2930 |
| 4.5 | Height, mast extended | h4 | mm | 3860 | 3860 | 3845 | 3845 | 3906 |
| 4.7 | Height of overhead guard (cabin) | h6 | mm | 1980 | 1980 | 1985 | 1985 | 1985 |
| 4.8 | Seat height | h7 | mm | 975 | 975 | 970 | 970 | 970 |
| 4.12 | Tow center of pin height | h10 | mm | -- | -- | -- | -- | -- |
| 4.19 | Overall length | l1 | mm | 2350 | 2350 | 2530 | 2530 | 2620 |
| 4.20 | Length to face of forks | l2 | mm | 1430 | 1430 | 1610 | 1610 | 1700 |
| 4.21 | Overall width | b1/ b2 | mm | 944 | 944 | 948 | 948 | 1020 |
| 4.22 | Fork dimensions | s/ e/ l | mm | 40×100×920 | 40×100×920 | 40×100×920 | 40×100×920 | 40×100×920 |
| 4.23 | Fork carriage class/type A, B | 2A | 2A | 2A | 2A | A | ||
| 4.24 | Fork carriage width | b3 | mm | 720 | 720 | 800 | 800 | 720 |
| 4.31 | Ground clearance, laden, below mast | m1 | mm | 90 | 90 | 90 | 78 | 78 |
| 4.32 | The minimum ground clearance of frame | m2 | mm | 95 | 95 | 78 | 95 | 95 |
| 4.34.1 | Aisle width for pallets 1000 × 1200 crossways | Ast | mm | 2830 | 2830 | 2970 | 2975 | 3076 |
| 4.34.2 | Aisle width for pallets 800 × 1200 lengthways | Ast | mm | 2945 | 2945 | 3090 | 3090 | 3189 |
| 4.35 | Turning radius | Wa | mm | 1300 | 1330 | 1450 | 1450 | 1549 |
| Performance data | ||||||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 6/8 | 6/8 | 6/8 | 6/8 | 7/8 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.13/0.2 | 0.13/0.2 | 0.13/0.2 | 0.13/0.2 | 0.11/0.2 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.14/0.125 | 0.14/0.125 | 0.14/0.125 | 0.14/0.125 | 0.22/0.2 | |
| 5.5 | Drawbar pull, laden/unladen | N | -- | -- | -- | -- | -- | |
| 5.6 | Max. drawbar pull, laden/unladen (time) | N | -- | -- | -- | -- | -- | |
| 5.7 | Gradeability, laden/unladen | % | 6/ 8 | 6/ 8 | 6/ 8 | 6/ 8 | 6/ 8 | |
| 5.8 | Max. gradeability, laden/unladen | % | -- | -- | -- | -- | -- | |
| 5.10 | Service brake type | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic+ hydraulic | Electromagnetic+ hydraulic | ||
| park brake type | -- | -- | -- | -- | -- | |||
| Electric-engine | ||||||||
| 6.1 | Drive motor rating S2 60 min | kW | 1.5 | 1.5 | 1.5 | 1.5 | 3.3 | |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | 2.2 | 3 | 3 | 3 | |
| 6.3 | The maximum allowed size battery | mm | -- | -- | -- | -- | -- | |
| 6.4 | Battery voltage/nominal capacity K5 | 24/210 | 24/210 | 24/240 | 24/ 360 | 24/ 500 | ||
| 6.5 | Battery weight | kg | 222 | 222 | 255 | 340 | 500 | |
| Addition data | ||||||||
| 8.1 | Type of drive unit | AC | AC | AC | AC | AC | ||
| 10.5 | Steering type | -- | -- | -- | -- | -- | ||
| 10.7 | Sound pressure level at the driver's ear | dB (A) | 70 | 70 | 70 | 70 | 70 |

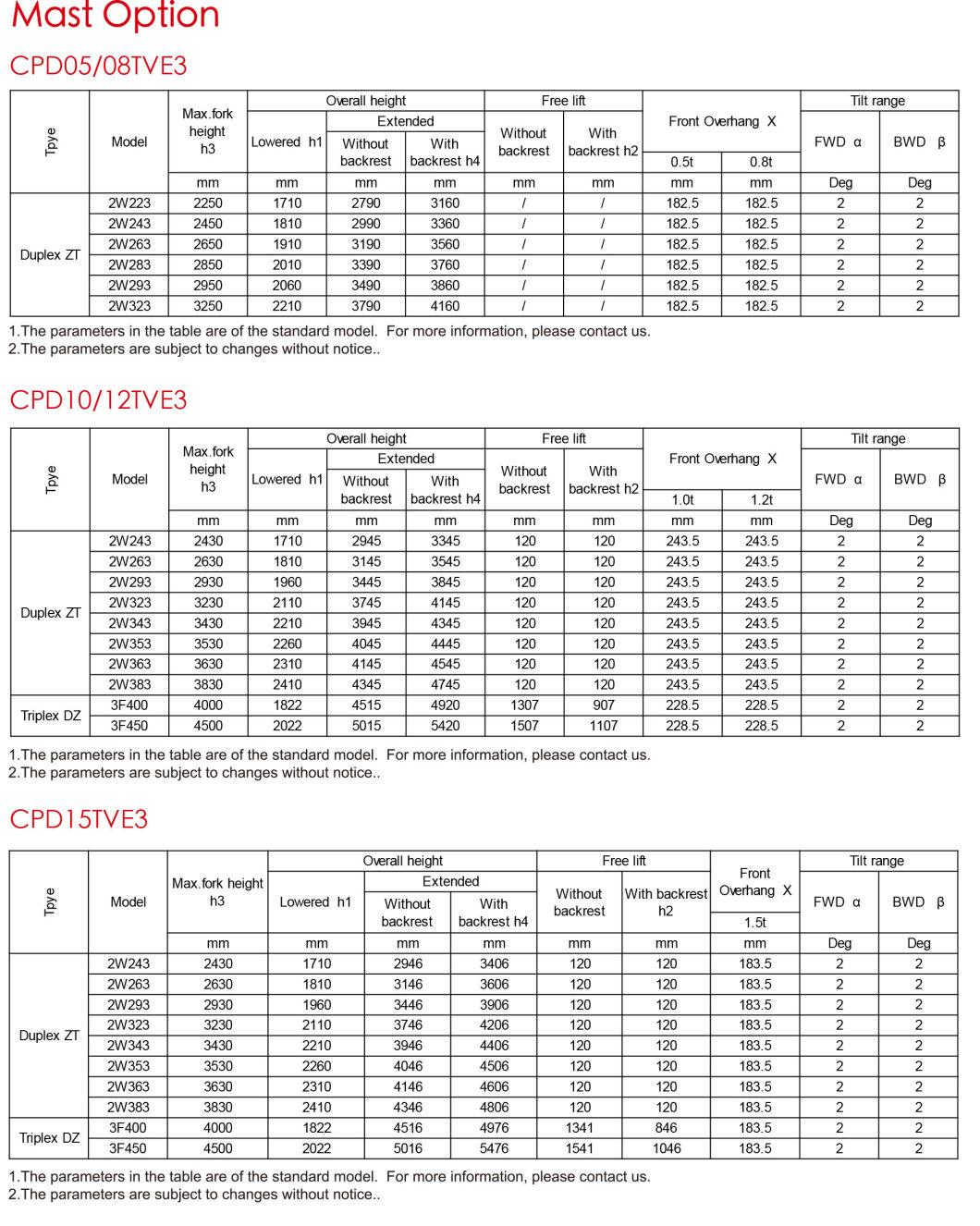

Mast option:

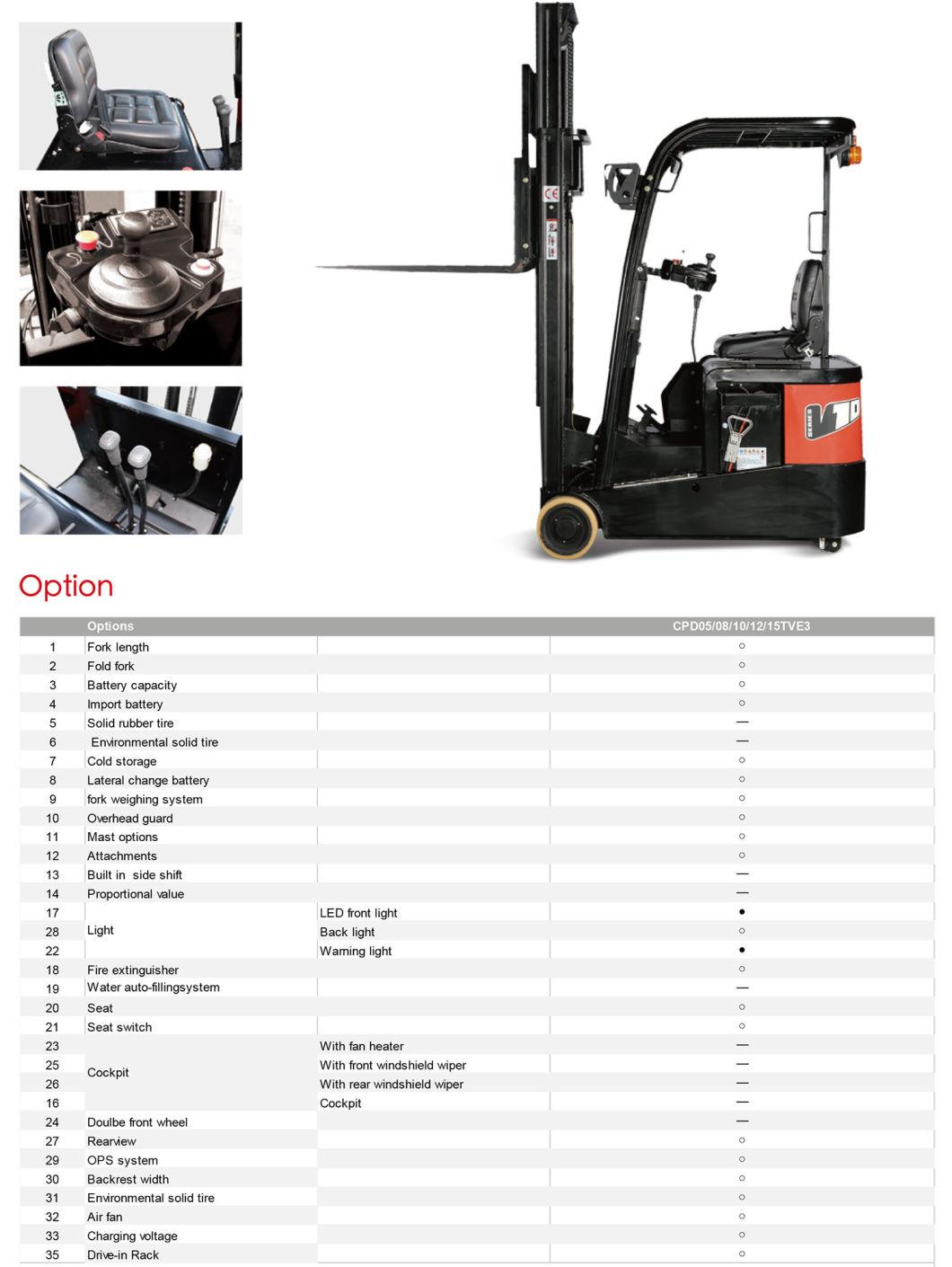

Option:
More details:
