• Model NO.：CPD20L1
• Lift height：3000-6000mm
• Condition：New
• Operator Type：Seated
• Service Weight：2950kg
• Tyre Type：Solid Rubber
• Turning Radius：2080mm
• Height,Mast Lowered：2080mm
• Travel Speed：10.5,14 Km,H
• Lifting Speed：0.28,0.42
• Service Brake：Electromagnetic
• Battery Voltage：48V,360ah
• Certification：Ce
• Transport Package：Standard Export Packing
• Specification：2200mm*1080mm*2080mm
• Trademark：EP
• Origin：China
• HS Code：8427109000
• Production Capacity：4000

Basic Info.

Model NO. CPD20L1 Lift height 3000-6000mm Condition New Operator Type Seated Service Weight 2950kg Tyre Type Solid Rubber Turning Radius 2080mm Height,Mast Lowered 2080mm Travel Speed 10.5/14 Km/H Lifting Speed 0.28/0.42 Service Brake Electromagnetic Battery Voltage 48V/360ah Certification Ce Transport Package Standard Export Packing Specification 2200mm*1080mm*2080mm Trademark EP Origin China HS Code 8427109000 Production Capacity 4000

Product Description

Specification:

Distinguishing mark
1.1	Manufacturer			EP	EP
1.2	Model designation			CPD15L1	CPD20L1
1.3	Drive unit			Electrics	Electrics
1.4	Operator type			seated	seated
1.5	rated capacity	Q	t	1.5	2
1.6	Load center distance	c	mm	500	500
1.8	Load distance,centre of drive axle to fork	x	mm	405	405
1.9	Wheelbase	y	mm	1430	1430
Weight
2.1	Service weight (include battery)		kg	2640	2950
2.2	Axle loading, laden driving wheels /steering wheels		kg	3570/570	4430/520
2.3	Axle loading, unladen  driving wheels /steering wheels		kg	1160/1480	1130/1820
Types,Chassis
3.1	Tyre type,driving wheels /steering wheels			solid rubber	solid rubber
3.2	Tyre size, driving wheels			18X7-8	18X7-8
3.3	Tyre size, steering wheels			5.00-8	5.00-8
3.5	Wheels, number driving/steering (x=drive wheels)		mm	2x/ 2	2x/ 2
3.6	Tread, Driving wheels	b10	mm	910	910
3.7	Tread, Steering wheels	b11	mm	920	920

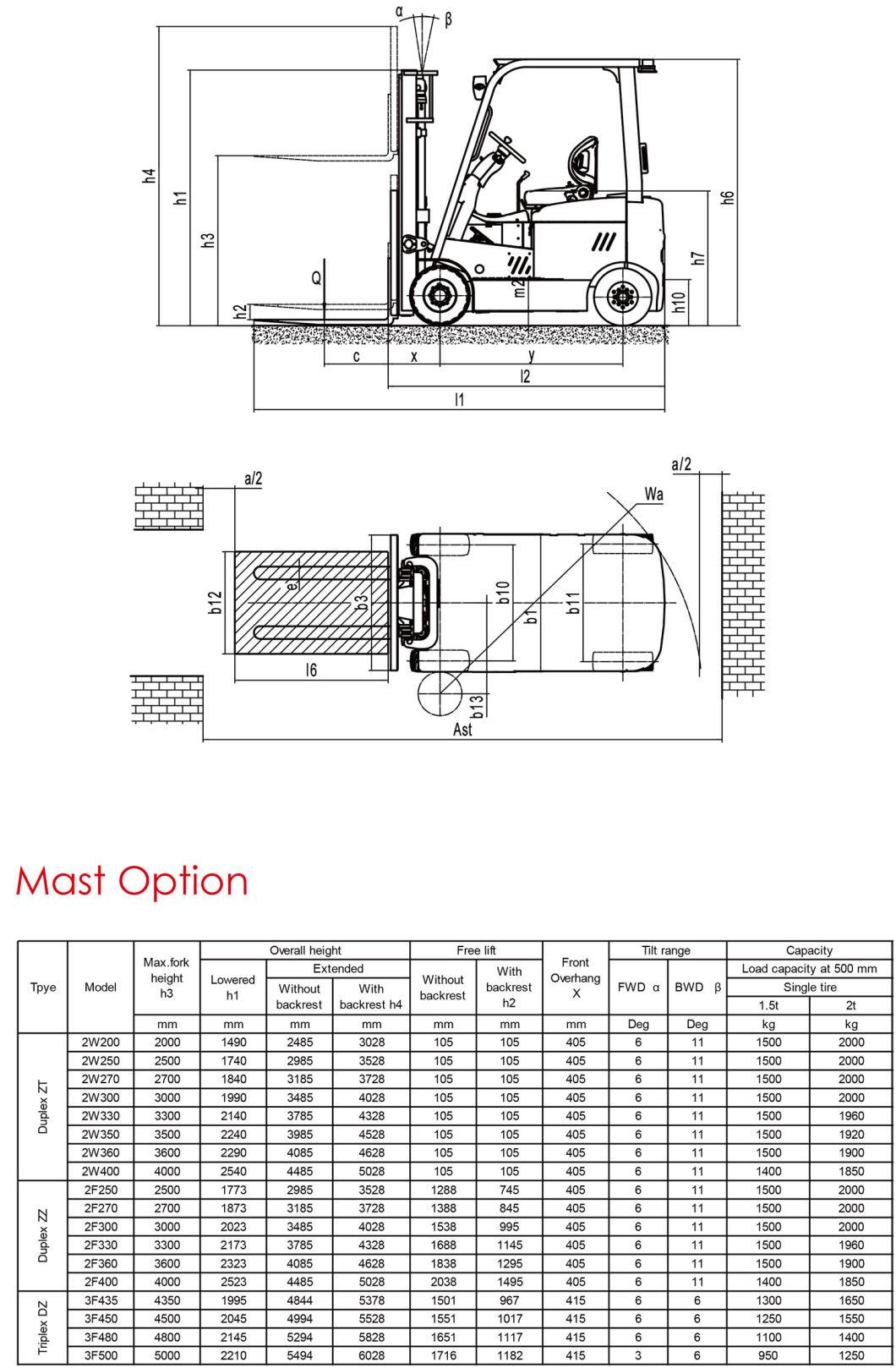

Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/ β (°)		6/ 11	6/ 11
4.2	Height, mast lowered	h1	mm	2080	2080
4.3	Free lift (load backrest)	h2	mm	95	95
4.4	Lift height	h3	mm	3000	3000
4.5	Height, mast extended	h4	mm	4015	4015
4.7	Height of overhead guard (cabin)	h6	mm	2080	2080
4.8	Seat height	h7	mm	1050	1050
4.12	Tow center of pin height	h10	mm	360	360
4.19	Overall length	l1	mm	3230	3230
4.20	Length to face of forks	l2	mm	2160	2160
4.21	Overall width	b1/ b2	mm	1080	1080
4.22	Fork dimensions	s/ e/ l	mm	40×100×1070	40×100×1070
4.23	Fork carriage class/type A, B			2A	2A
4.24	Fork carriage width	b3	mm	1040	1040
4.31	Ground clearance, laden, below mast	m1	mm	110	110
4.32	The minimum ground clearance of frame	m2	mm	105	105
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	4170	4170
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	4200	4200
4.35	Turning radius	Wa	mm	2050	2050
Performance data
5.1	Travel speed, laden/ unladen		km/ h	10.5/14	10.5/14
5.2	Lifting speed, laden/ unladen		m/ s	0.28/ 0.42	0.28/ 0.42
5.3	Lowering speed, laden/ unladen		m/ s	0.42/ 0.45	0.43/ 0.45
5.5	Drawbar pull, laden/unladen		N	--	--
5.6	Max. drawbar pull, laden/unladen (time)		N	--	10000
5.7	Gradeability, laden/unladen		%	--	--
5.8	Max. gradeability, laden/unladen		%	10.5/14	10.5/14
5.10	Service brake type			Electromagnetic	Electromagnetic
	park brake type			Electromagnetic	Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	6	6
6.2	Lift motor rating at S3 15%		kW	7.5	7.5
6.3	The maximum allowed size battery		mm	--	--
6.4	Battery voltage/nominal capacity K5			max 450AH	max 450AH
6.5	Battery weight		kg
Addition data
8.1	Type of drive unit			AC	AC
10.5	Steering type			--	--
10.7	Sound pressure level at the driver's ear		dB (A)	--	--
