• Model NO.：ES15-15ES
• Fuel：Electric
• Load center：600mm
• Lift height：3230
• Condition：New
• Rated Loading Capacity：1500kg
• Max. Lifting Height：3230mm
• Min. Lifting Height：88mm
• Fork Length：1150mm
• Fork Width：170mm
• Service Weight：755kg
• Tyre Type：PU
• Travel Speed：5 Km,H
• Lifting Speed：0.13,0.2 M,S
• Battery Voltage：24V,125ah
• Transport Package：Standard Export Packing
• Specification：1740mm*800mm*2128mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES15-15ES Fuel Electric Load center 600mm Lift height 3230 Condition New Rated Loading Capacity 1500kg Max. Lifting Height 3230mm Min. Lifting Height 88mm Fork Length 1150mm Fork Width 170mm Service Weight 755kg Tyre Type PU Travel Speed 5 Km/H Lifting Speed 0.13/0.2 M/S Battery Voltage 24V/125ah Transport Package Standard Export Packing Specification 1740mm*800mm*2128mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

Distinguishing mark
1.1	Manufacturer			EP	EP
1.2	Model designation			ES12-12CS	ES15-15CS
1.3	Drive unit			Electrics	Electrics
1.4	Operator type			pedestrian	standing
1.5	rated capacity	Q	kg	1200	1500
1.6	Load center distance	c	mm	500	600
1.8	Load distance,centre of drive axle to fork	x	mm	208	215
1.9	Wheelbase	y	mm	1244	1355
Weight
2.1	Service weight (include battery)		kg	1860	2420
2.2	Axle loading, laden driving side/loading side		kg	375/2685	510/3410
2.3	Axle loading, unladen  driving side/loading side		kg	1060/800	1430/990
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			polyurethane/ polyurethane	PU/PU
3.2	Tyre size, driving wheels(diameter×width)		mm	Φ230× 75	Φ260×105
3.3	Tyre size, loading wheels(diameter×width)		mm	Φ254×102	Φ254×102
3.4	Tyre size, caster wheels(diameter×width)		mm	-	-
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x,0/2	1x,0/2
3.6	Track width, front,driving side	b10	mm	787	787
3.7	Track width,rear,loading side	b11	mm	-	-

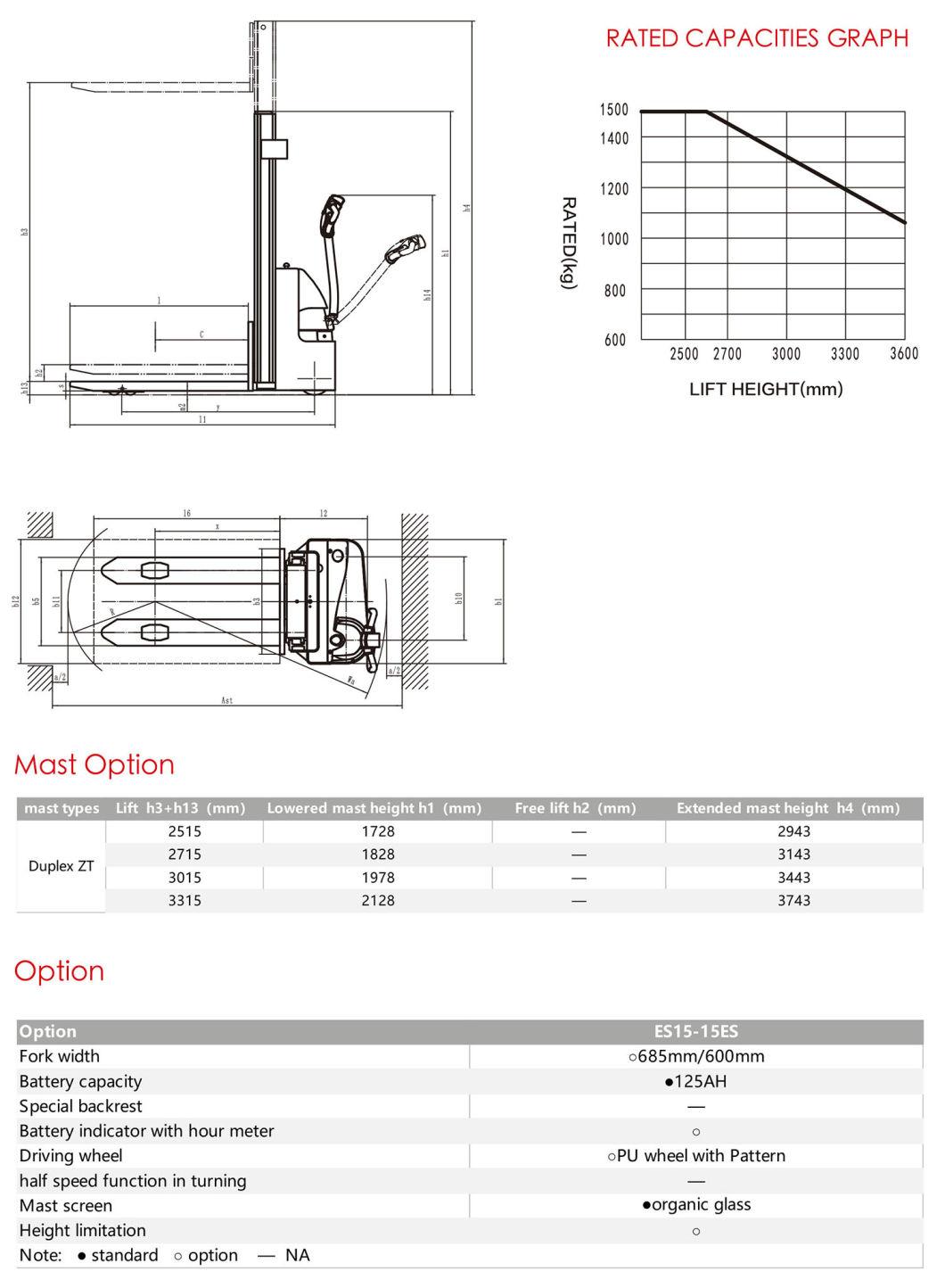

Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/β	°	1.5/6	1.5/6
4.2	Height, mast lowered	h1	mm	2110	2118
4.3	Free lift	h2	mm	150	150
4.4	Lift height	h3	mm	3270	3200
4.5	Height, mast extended	h4	mm	4185	4115
4.9	Height drawbar in driving position min./max.	h14	mm	1013/1402	1013/1402
4.10	Height of wheel arms	h8	mm	282	282
4.15	Lowered height	h13	mm	60	60
4.19	Overall length	l1	mm	2835	2985
4.20	Length to face of forks	l2	mm	1738	1915
4.21	Overall width	b1/ b2	mm	850/900	850/900
4.22	Fork dimensions	s/ e/ l	mm	40/100/1070	40/100/1070
4.24	Fork carriage width	b3	mm	800	800
4.25	Distance between fork-arms	b5	mm	200-760	200-760
4.31	Ground clearance, laden, below mast	m1	mm	78	78
4.32	Ground clearance, center of wheelbase	m2	mm	70	70
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	3085	3270
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	3200	3385
4.35	Turning radius	Wa	mm	1535	1715
Performance data
5.1	Travel speed, laden/ unladen		km/ h	5.5/6.0	4.65
5.2	Lifting speed, laden/ unladen		m/ s	0.127/0.23	0.12/0.17
5.3	Lowering speed, laden/ unladen		m/ s	0.26/0.2	0.13/0.1
5.8	Max. gradeability, laden/unladen		%	5.0/8.0	5.0/8.0
5.10	Service brake type			Electromagnetic	Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.5	4
6.2	Lift motor rating at S3 15%		kW	2.2	3
6.3	The maximum allowed size battery		mm	810/230/open	810/330/open
6.4	Battery voltage/nominal capacity K5		V/ Ah	24/210	24/280
6.5	Battery weight		kg	190	320
Addition data
8.1	Type of drive unit			AC	AC
10.5	Steering type			Electronic	Electronic
10.7	Sound pressure level at the driver's ear		dB(A)	74	74
