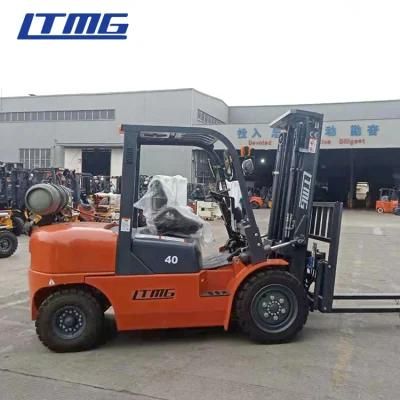

Ltmg 4 Ton LPG Gas Forklift with Chinese Engine and Air Conditioner

Xiamen LTMG Machinery Co., Ltd.
  • Cab Location：Adjustable
  • Type：Powered Pallet Truck
  • Power：LP Gas Engine
  • Load Capacity：4 Ton
  • Fuel：LPG
  • Load center：500mm

Base Info

  • Model NO.：FG40
  • Lift height：3000mm
  • Condition：New
  • Wheelbase：1900mm
  • Rated Power：57kw,2800rpm
  • Length with Fork：2895mm
  • Ground Clearence：130mm
  • Fuel Tank：60L
  • Brand：Ltmg
  • Warranty：1 Year or 2000 Working Hours
  • Min. Turning Radius(Outside)：230mm
  • Height of Mast (Standard)：2150mm
  • The Height of Traction Pin：330mm
  • Engine：Gq or Optional
  • Transport Package：Container
  • Specification：2895mm*4140mm*2150mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：2000sets,Month

Description

ModelUnitPower type Gasoline/Liquefied gas/Natural gasRated capacityLoad centermm500Operator type Drive in seatMax. lift height of mast with Load-backrestMax.liftHeight of mast (standard)mm2150Free lift height(standard)mm150Height of Load-backrestmm1240Front wheel overheadmm2105Length with forkmm2895Front overhangmm500Rear overhangmm495Wheel basemm1900The height of traction pinmm330Min. ground clearancemm130Overall widthmm1410The distance between forksmm1290/260Tread(front /rear)mm1160/1065Min. Turning radius(outside)mm2700Min. Turning radius(inside)mm230Min. Intersecting aislemm2685Mast tilt angledeg6° / 12°Fork sizemm1070X130X50
SpeedsMax.Drive speeds(with/without load)km/h18/19Lifting speeds (with load)mm/s350/380Lowering speeds(with /without full load)mm/s350/400Max. tractive forceKN20/18Max.grade ability (with/without full load)%15/18Total weightkg4270Weight Distribution full load (front/ rear)kg8380/930Weight Distribution zero load(front / rear)kg2120/3190Quantity of wheelsType of tyres Penumatic tiresTiresFrontDriving Brake hydraumatic pedalParking Brake Mechanical manualBatteryV/AH12/80Engine (standard)Model GQ-4YRated outputkw/rpm57/2800Rated torqueN.m/rpm198/1800No.of cylinder 4-91X86DisplacementL2.237Fuel tank capacityL60Number of speeds for transmission 1-1 Power shift transmission
/ 2-2 Hand shift transmission
Product Features

1.Equipped with the powerful and efficient EFI,EPA approved engine Nissan K25 with excellent environmental performance;GM engine and Chinese powerful and reliable engines are optional.
2.Equipped with the USA IMPCO gas system,which is more reliable.
3.Thicker reinforcing plate ensures the safety and efficiency.
4.New designed overhead guard protective device prevent the sudden accidents.

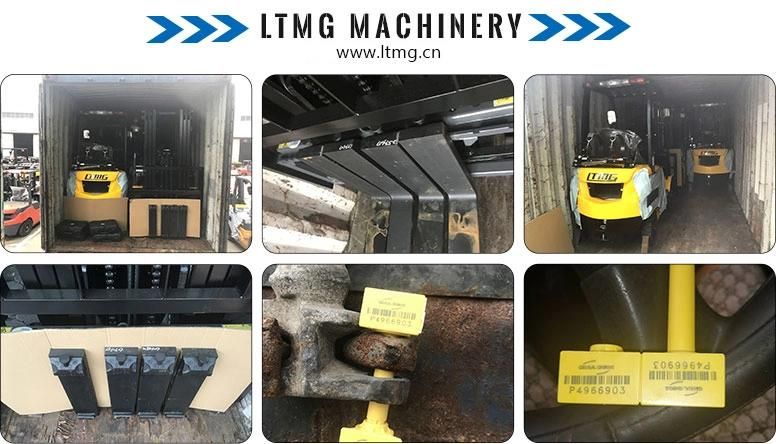

Packing & Shipping
Ltmg 4 Ton LPG Gas Forklift with Chinese Engine and Air Conditioner

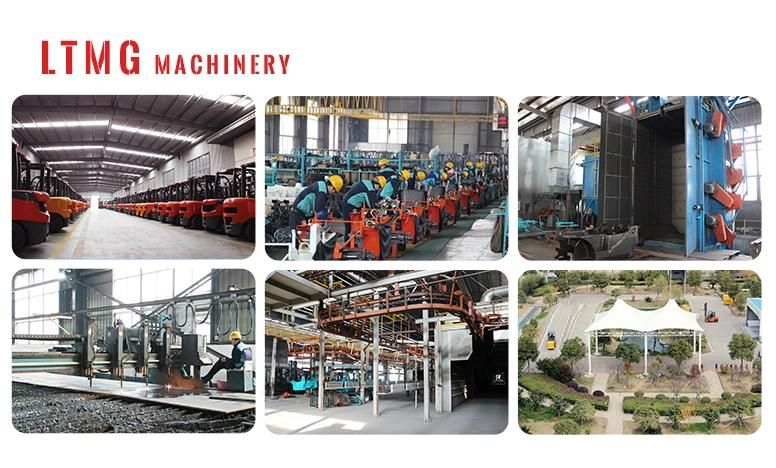

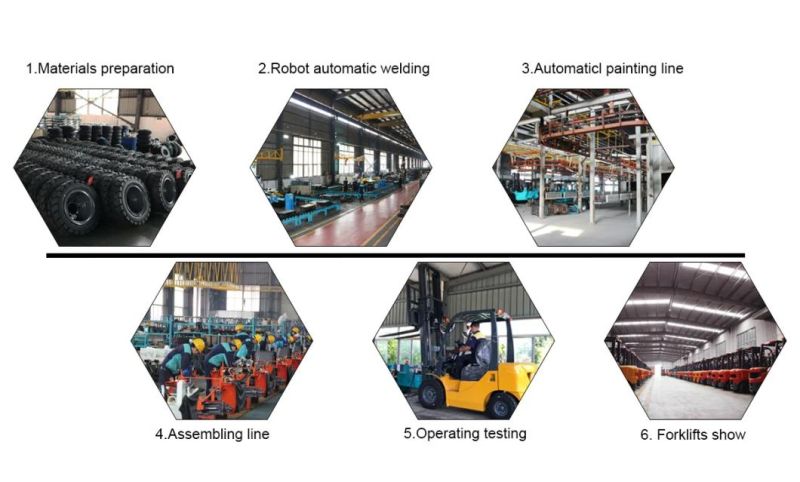

Factory
Ltmg 4 Ton LPG Gas Forklift with Chinese Engine and Air Conditioner
Ltmg 4 Ton LPG Gas Forklift with Chinese Engine and Air Conditioner
Customer & Exhibition
Ltmg 4 Ton LPG Gas Forklift with Chinese Engine and Air Conditioner
Ltmg 4 Ton LPG Gas Forklift with Chinese Engine and Air Conditioner

After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
