• Model NO.：FD20
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Engine：Mitsubishi
• Max. Lifting Height：3000mm
• Weight：3330kg
• Wheelbase：1600mm
• Rated Power：35.4kw,2250rpm
• Overall Length(Without Fork)：2460mm
• Item：Forklift for Sale
• Product Name：Ltmg Forklift 2 Ton Small Diesel Forklift with 3-6
• Warranty：1 Year or 2000 Working Hours
• Transport Package：Container
• Specification：2460mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer  LTMGModel Power shift T/M FD20Manual shift T/MFD20Load capacity   kg2000Load center mm500Power unit   Diesel Operator type   Driver/seatTire type   PneumaticWheel  Front/rear 2/2Max. lifting height mm3000Free lift  mm160Fork size L*W*Tmm1070*122*40Tilt rangeMast forward/backwarddeg6/12Overall length(without fork)  mm2460Total width mm1150Mast height (fork lowering)   mm1995Overall height fork raised With backrest mm4030Height to head guard             mm2120Turning radius(outside)   mm2170Front face of fork to front axle  mm450Min. right angle stacking aislewithout load length&clearancemm2615Speed Max Travelling full/no loadkm/h17/19Lifting  full/no loadmm/s550/580Lowering  full/no loadmm/s450/550Max.drawbar pull Power shift T/M full/no loadkg1670/830Manual shift T/M full/no loadkg1700/830Gradeability at 1.6km/hPower shift T/M full/no load%27/20Manual shift T/M full/no load  %21/20Truck weight kg3330Weight  distributionFull  load  front/rearkg4700/630No  load                            front/rear                                 kg1510/1820Tires Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase mm1600Tread Front/rearmm970/970Ground clearanceAt lowest point(mast)mm110Framemm115BrakeService  brake Hydraulic-foot pedal  Parking brake Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel Mitsubishi S4SRated powerkw/rpm35.4/2250Rated torqueN.m/rpm170/1700Number of cylinders 4PlacementL2.369Fuel tank capacityL70TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M 1-1 power shift T/M
2-2 manual shift T/MOperating pressureHydraulic system pressurekg/cm²180

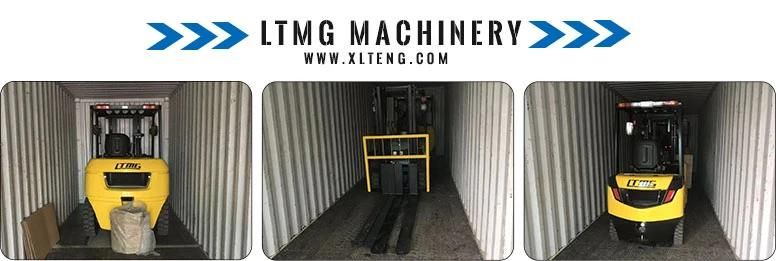

Packing & Shipping




Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts
Website:
ltmamachine.en.made-in-china.com



Customers Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.





After Sales Service
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
