• Model NO.：FD30
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Weight：4380kg
• Engine：Isuzu
• Wheelbase：1700mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：34.3kw,2500rpm
• Transport Package：Container
• Specification：2705mm*1225mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer   LTMGModel Power shift T/MFD30TManual shift T/MFD30CLoad capacity  kg3000Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm1070*125*45Tilt range  Mast forward/backward deg6/12Overall length(without fork)  mm2705Total width  mm1225Mast height (fork lowering)  mm2075Overall height fork raised With backrest                                    mm4250Height to head guard mm2140Turning radius(outside)          mm2445Front face of fork to front axle  mm480Min. right angle stacking aisle without load length&clearancemm2925Speed Max Travelling full/no loadkm/h18/19.5Lifting full/no load                mm/s450/500Lowering full/no load      mm/s450/450Max.drawbar pullPower shift T/M full/no load        kg1500/1000Manual shift T/M full/no load kg1550/1000Gradeability at 1.6km/h Power shift T/M full/no load %18/20Manual shift T/M full/no load %18/20Truck weight kg4380Weight  distribution Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheelbase  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast)                        mm120Framemm135Brake Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backward                  Power shift T/M
Manual shift T/M              1-1 power shift T/M
2-2 manual shift T/M

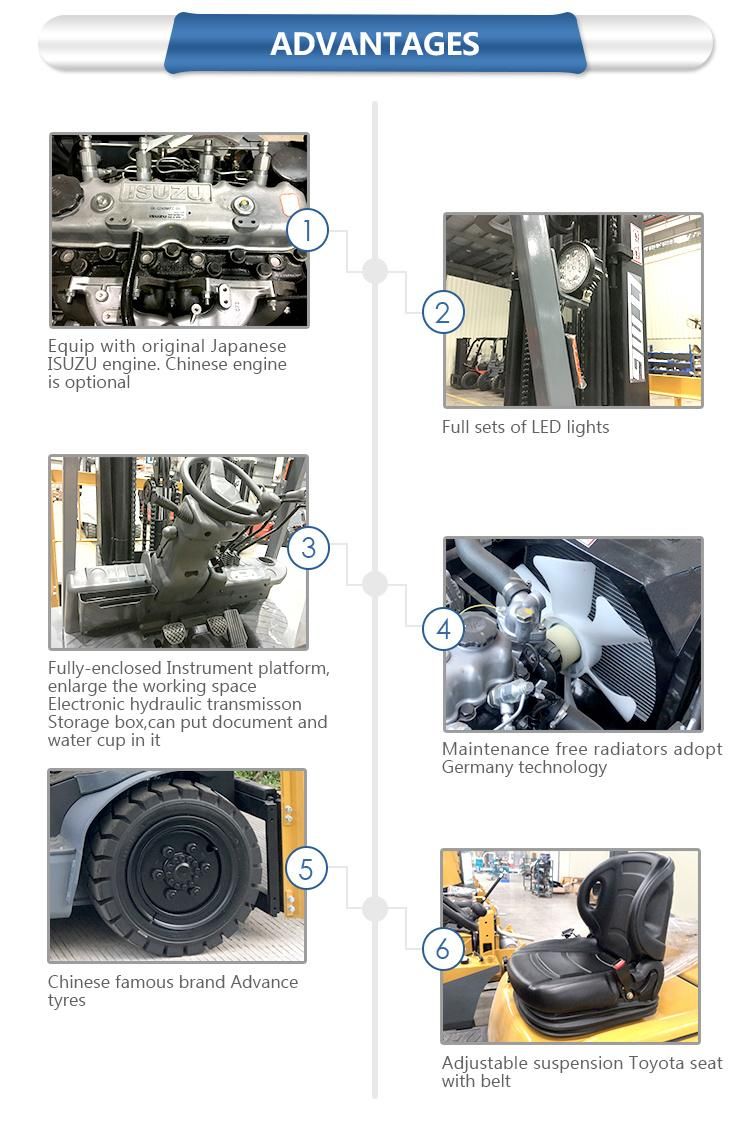

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)



Customer visit


After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.


FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days
