• Lift height：5000mm
• Condition：New
• Container Mast：Optional
• Mast：Duplex , Triplex Is Optional
• Fork Size：1070mm*150mm*50mm
• Battery：80V,700ah
• Ground Clearence：160mm
• Wheel Base：2000mm
• Controller：American Curtis or Zapi
• Turning Radius(Outside)：2755mm
• Tilt Range：6,9
• Optional：Side Shifter, Solid Tires, Cab, Fork Positioneretc
• Tire：Pneumatic
• Attachment：Bale Clamp, Paper Roll Clamp
• Min Insecting Aisle：2955
• Service Weight：7800
• Transport Package：Container
• Specification：3030mm*1600mm*2330
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800 Sets,Year

Specification of 4 ton 4.5ton 5 ton 6 ton Electric Forklift Power source BatteryBatteryBatteryBatteryRated load capacitykg4000450050006000Load centremm500500500500Lift heightmm3000300030003000Fork size (L×W×T)mm1070×150×501070×150×501070×150×501070×150×50Fork carriage tilt(F/R)°6°/9°6°/9°6°/9°6°/9°Overall Length(to fork face)mm3030303030303030Overall Widthmm1600160016001600Mast Lowered Heightmm2330233023302330Mast Extended Heightmm4255425542554255Overhead Guard Heightmm2255225522552255Wheelbasemm2000200020002000Overall length(with forks)mm4100410041004100Gradeability(Laden)%15151515Front Tire 28×12.5-15-24PR28×12.5-15-24PR28×12.5-15-24PR28×12.5-15-24PRRear Tire 7.0-12-14PR7.0-12-14PR7.0-12-14PR7.0-12-14PRBattery(Voltage/Capacity)V/Ah80/70080/70080/70080/800Drive motor                    Kw2x112x112x112x11Lifte motor                       Kw26262626

Product Features

1. Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.

2. Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.

3. Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.

4. Bigger and non-slip step make operating convenient and safe.

5. The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition.

6.High voltage and large capacity battery can supply the forklift with strong power;GS & HOPPECKE battery group is optional according to customers' requirements.

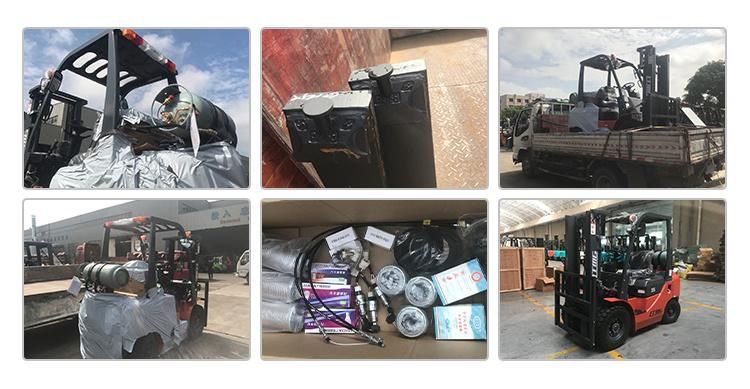

Packing & Delivery






Our factory




Our customers






After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.





FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
