• Model NO.：FD100
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*175mm*75mm
• Weight：12450kg
• Engine：Isuzu,Chaochai
• Wheelbase：2800mm
• Color：Decided by Buyer
• Transport Package：Container
• Specification：4255mm*2245mm*2850mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer  LTMGModel Power shift T/MFD100Load capacity kg10000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm205Fork sizeL*W*Tmm1220*175*75Tilt rangeMast forward/backwarddeg6/12Overall length mm4255Total width mm2245Mast height (fork lowering) mm2850Overall height fork raisedWith backrestmm4430Height to head guard mm2560Turning radius(outside) mm3900Front face of fork to front axle mm710Min. right angle stacking aislewithout load length& clearancemm6250SpeedMax Travelling   full/no loadkm/h24/30Lifting full/no loadmm/s390/410Lowering full/no loadmm/s470/340Max.drawbar pullfull/no loadkg5850/3200Gradeability at 1.6km/hfull load%22Max. Gradeabilityfull/no load%24/20Truck weight kg12450Weight  distributionFull load front/rearkg20160/2290No load front/rearkg5480/6970TiresNumberfront/rear4/2Modelfront axle9.00x20-14PRrear axle9.00x20-14PRWheelbase mm2800TreadFront/rearmm1600/1700At lowest point(mast)mm245Ground clearanceFramemm320BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M

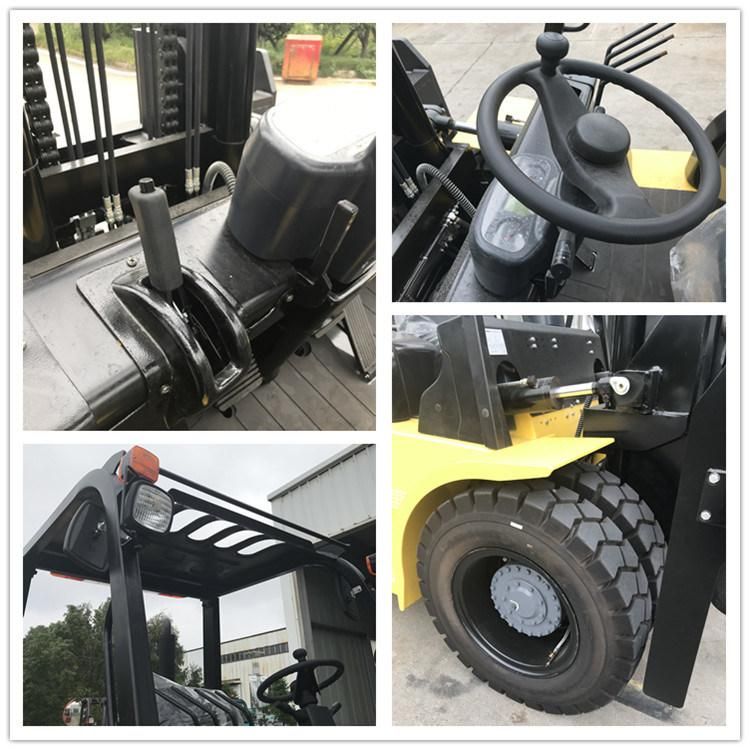

Product Features

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

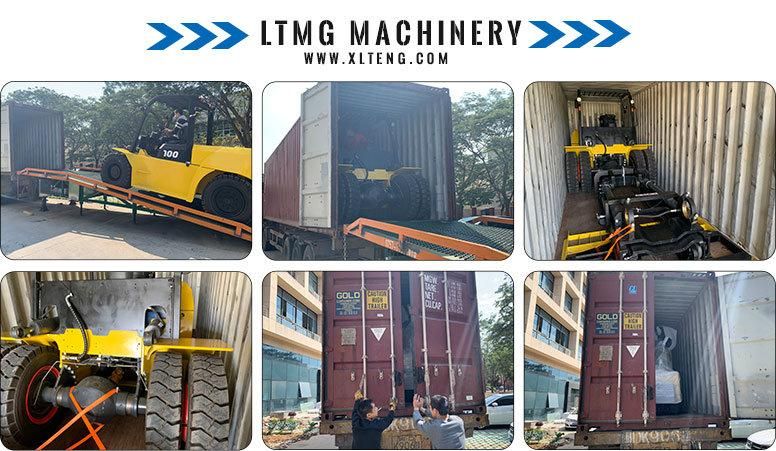

Shipping&packaging






Our company and factory



LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
ltmamachine.en.made-in-china.com


After Sales Service

LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.







Why choose us



FAQ

1.What  the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

 2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.

 3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

 4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

 5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

 6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
