• Model NO.：FD30
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Weight：4380kg
• Engine：Isuzu
• Wheelbase：1700mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Rated Power：34.3kw,2500rpm
• Free Lift：150mm
• Tire Type：Pneumatic
• Transport Package：Container
• Specification：2705mm*1225mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

The specification of LTMG Diesel Forklift Truck 3 Ton 3.5 ton ModelUNITFD30FD35PerformancePower Unit DieselDieselOperator Type Driver/seatDriver/seatRated CapacityKg30003500Load Centermm500500Max. Lifting Heightmm30003000Mast Tilting Angle (Fwd/Bwd)Deg6/126/12Free Lift Heightmm145150Turning Radiusmm23952415Lifting Speed (Loaded/Unloaded)mm/s480/500400/450Lowering Speed (Loaded/Unloaded)mm/s420/400400/370Travelling Speed (Loaded/Unloaded)Km/h20/2120/21Max. Gradeability (Loaded)%2121Max. Drawbar Pull (Loaded)N1717DimensionsOverall length (without fork)mm27302770Overall Widthmm12201220Overhead Guard Heightmm21452145Fork Size (LxWxT)mm1070X125X451070X125X45Mast Height (Fork lowered)mm20952175Truck WeightKg42504500Tyre Size (Front/Rear)  28×9-15-14PR/6.5-10-10PR28×9-15-14PR/6.5-10-10PREngineBrand  ISUZUXINCHAIISUZUXINCHAIModel  C240C4904JG2C495Rated PowerKw/rpm35.4/250035.4/250040/265042/2650Rated torqueN-m/rpm137.7/1800160/1600186/1800174/1600Number of cylinder  4444Displacement  2.362.673.062.8
Product Features:

-Adopt TCM type transmission, steering axle

- Isuze engine and Mitsubishi engine are optional

-Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals, Toyota seat with safety belt, cooper tank and so on

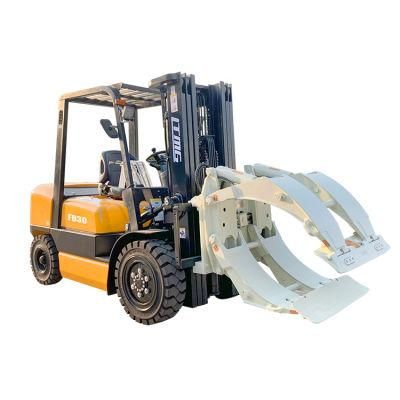

-Attachments can be equipped as customer's requirements, such as paper roll, forklift rotator, clamp etc.
The most reasonable system matching after repeated verification
After 400 hours of continuous enhancement test
Adopt gradeability improving style transmission, compare with other models
Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system

Packing and Shipping

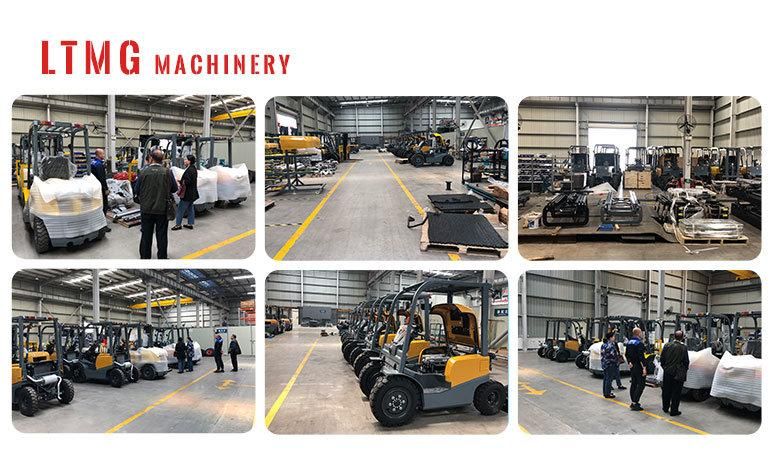

Our Factory



Our customers

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.



The quality of our LTMG forklift has been recognized by our customers.

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001: 2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
