1.5ton 2.5ton 3ton 3.5ton 4ton Diesel Forklift Truck
Xiamen LTMG Machinery Co., Ltd.- Warranty：1 Year,2000 Working Hours
- Cab Location：Adjustable
- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：1.5 Ton
- Fuel：Diesel
Base Info
- Model NO.：FD15
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Size：920mm*100mm*35mm
- Engine：Isuzu
- Max. Lifting Height：3000mm
- Weight：2550kg
- Color：Could Be Design by Buyer
- Rated Power：34.3kw,2500rpm
- Overall Length(Without Fork) ：2245mm
- Tire Type：Pnenumatic
- Transmission：Power Shift
- Transport Package：Container
- Specification：2245mm*1070mm*2060mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000sets,Year
Description
The specification of 1.5ton diesel forklift Model FD15 Power Type Diesel Rated Capacity kg 1500 Load Centre mm 500 Lift Height mm 3000 Fork Size(L×W×T ) mm 920×120×35 Mast Tilt Angle(F/R) Deg 6°/12° Front Overhang (Wheel center to fork face) mm 410 Ground Clearance(Bottom of mast) mm 110 Length to face of fork(Without fork) mm 2285 Overall Width mm 1086 Mast Lowered Height mm 1995 Mast Extended Height(With backrest) mm 3940 Overhead Guard Height mm 2040 Turning Radius (outside) mm 2055 Travel Speed(Full load) km/h 15 Lifting Speed(Full load) mm/s 450 Max.Gradeability (No load/Full load) % 20 Front Tire mm 6.50-10-12PR Rear Tire mm 5.00-8-10PR Wheelbase mm 1400 Service weight kg 2820 Battery(Voltage/Capacity) V/Ah 12/80 Engine Model C240 Manufacture ISUZU Rated output/r.p.m. kw 35.4/2500 Rated torque/r.p.m. N·m 137.7/1800 No.of Cylinder 4 Bore×Stroke mm 86×102 Displacement cc 2369 Fuel Tank Capacity L 45 Transmission Type Hydraulic Stage 1/1
Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.

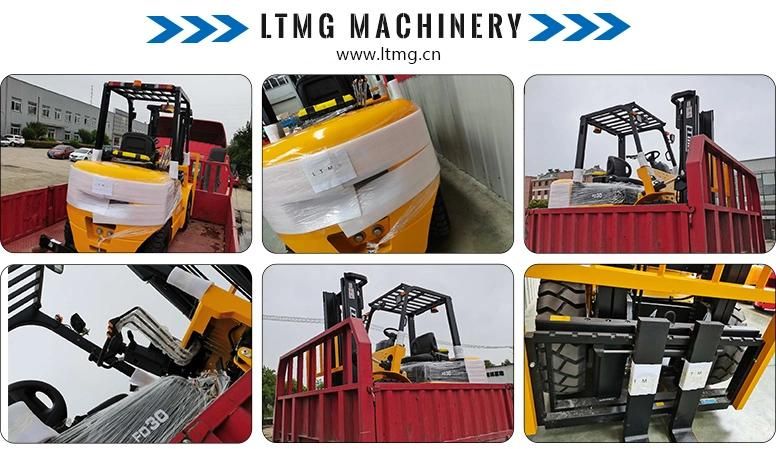

packaging & shipping
LTMG Factory
LTMG Clients

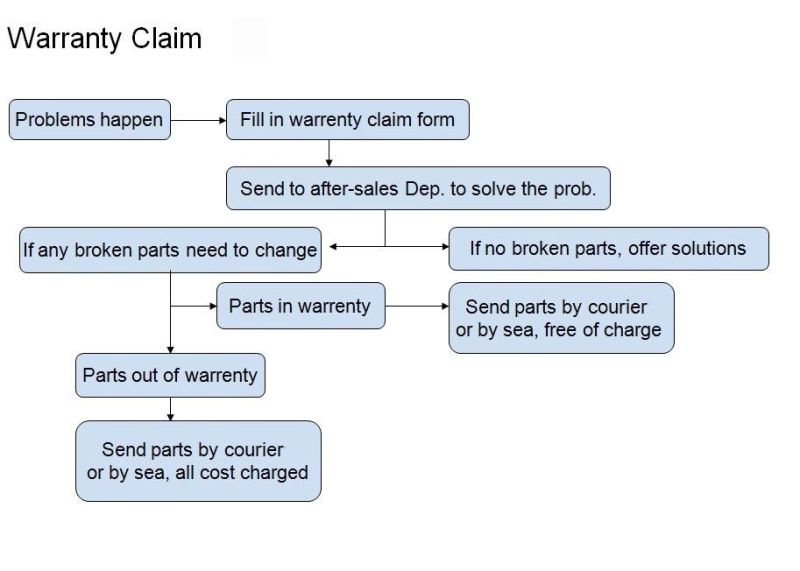

After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
(1)For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
(2)For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
(3)For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
