• Model NO.：M630-60
• Lift height：>5000mm
• Condition：New
• Name：M630-60 Telehandler
• Rated Loading Capacity：3000kg
• Max. Lifting Height：6000mm
• Min. Ground Clearance：330mm
• Engine：Yunnei,Yanmar,Kohler
• Engine Type：Chinese,EU 5,EPA Tier 4
• Rated Power：55~75kw
• Attachments：Quick Hitch for Fork, Bucket, Clamp, etc.

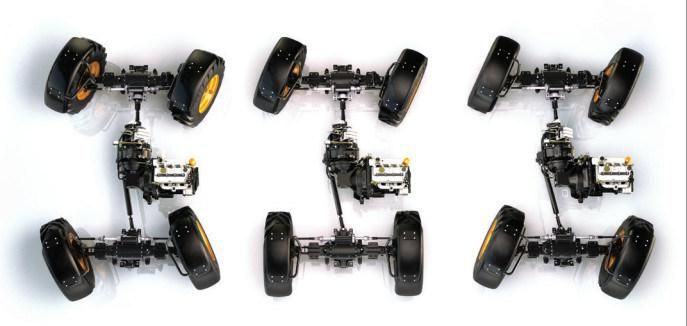

• Driving Type：Hydrostatic 4WD, 4ws
• Steering Type：3 Modes (Front Wheel,4 Wheel,Crab)
• Transport Package：Container
• Specification：3 ton telescopic forklift
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8427209000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Lift height >5000mm Condition New Name M630-60 Telehandler Rated Loading Capacity 3000kg Max. Lifting Height 6000mm Min. Ground Clearance 330mm Engine Yunnei/Yanmar/Kohler Engine Type Chinese/EU 5/EPA Tier 4 Rated Power 55~75kw Attachments Quick Hitch for Fork, Bucket, Clamp, etc. Driving Type Hydrostatic 4WD, 4ws Steering Type 3 Modes (Front Wheel/4 Wheel/Crab) Transport Package Container Specification 3 ton telescopic forklift Trademark STEEL CAMEL Origin China HS Code 8427209000 Production Capacity 600 Sets/ Year

Product Description

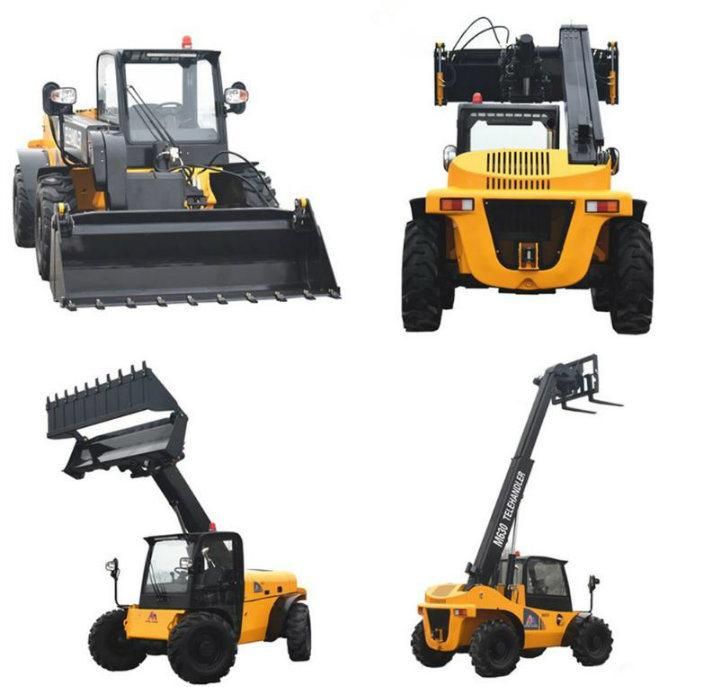

M630-60 small telehandler manlift telescopic forklift with auto transmission
 General introduction:>>STEEL CAMEL M630-60 telehandler adopts hydrostatic transmission, 4 wheel drive and 4 wheel steering, have fantastic manuverability in the rough farming and construction terrain.

>>Meanwhile its compact size, only 2090mm wide, 2150mm high, enable it to come through the hourse door.

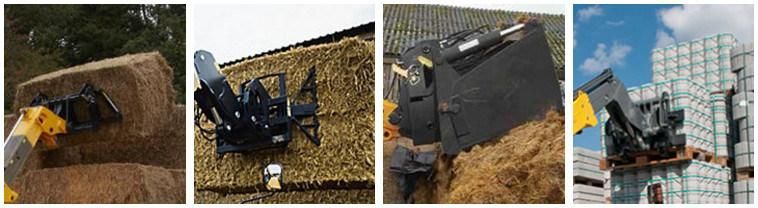

>>Hydraulic quick coupling system can hook various attachments for different work, like forklift, hay bale grapple, work platform, bucket, snow sweeper etc.

>>3ton capacity, 5.7m reach, most needed size for material handling work

>>ROPS cabin, electrical loading indicator guarantee the operating safety.

>>One hand joystick control, simple and convenient

>>Heavy duty engine and drive axle, powerful and strong

>>Wide view luxuary cabin, best operating comfort.





Technical data:

Engine	Kohler EPA Tier 4 / Yanmar / Chinese
Rated power	55kw~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	6000mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

Application of STEEL CAMEL M630-60 telescopic fork material handler:

STEEL CAMEL M630-60 4x4 mini telehandler is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-static transmission, hydraulic power steering, hydraulic brake, full-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.



Our company:

As a young company established in year 2016, Shandong Honest Machinery Co., Ltd has developed 3 series more than 40 different products till now, our products covering telescopic loader, telehandler and attachments. Action speaks lounder than words, our rapid development is the best prove of us.   "Honest" is our business way. We appreciate customers' trust, and we are always honest as return. We choose "STEEL CAMEL" as our brandname, as all our products were designed for heavy duty work, trouble less and more service, like the what the camel do for people.

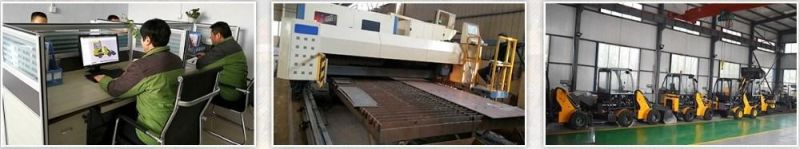

Excellent R&D capacity                High quality heavy duty materials             Standard assembling line Customized service                       Advanced production lines                     Ready for fast delivery
