• Model NO.：M630-60
• Lift height：>5000mm
• Condition：New

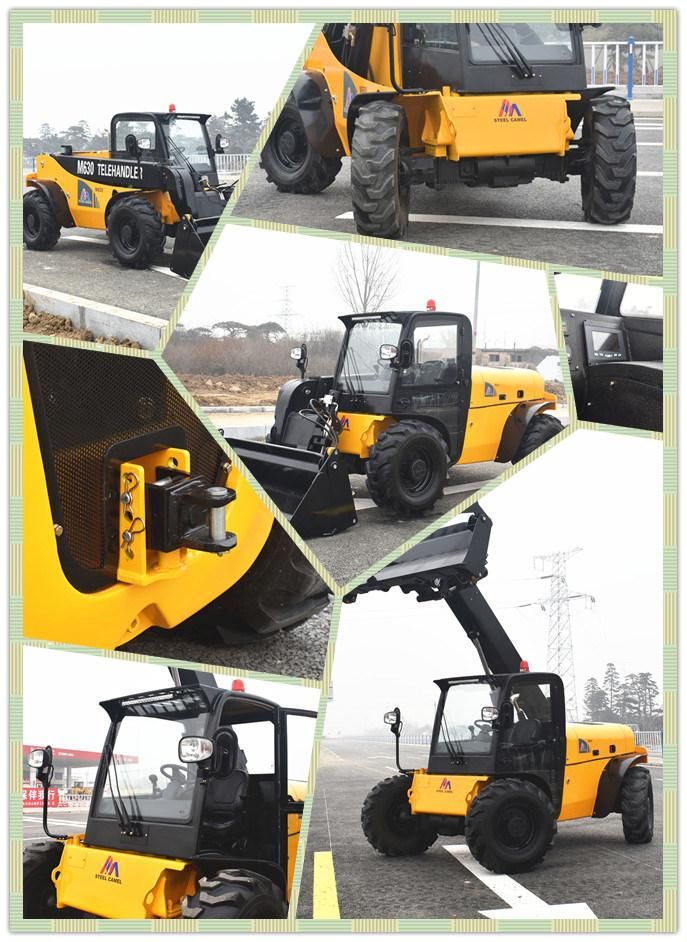

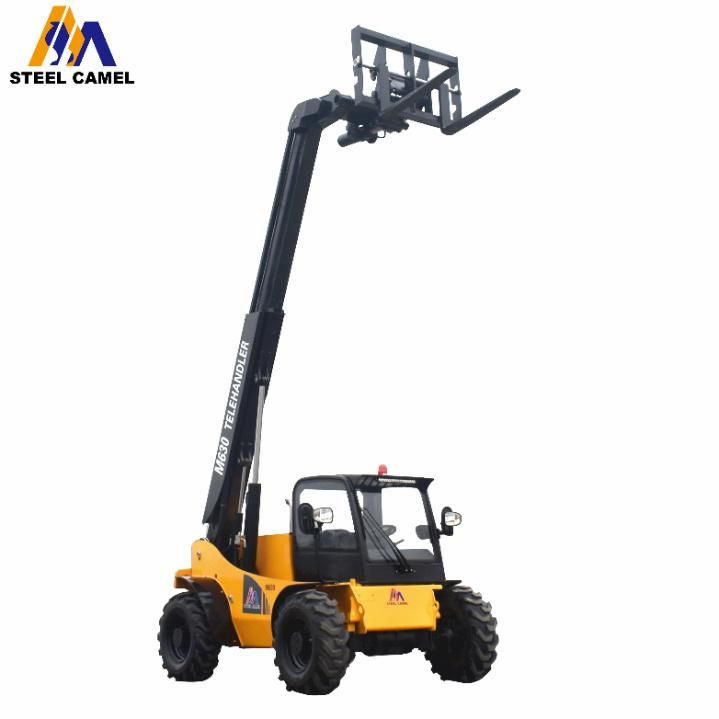

• Name：M630-60 Telehandler
• Rated Loading Capacity：3000kg
• Max. Lifting Height：6000mm
• Engine：Chinese,Yanmar,Kohler
• Rated Power：55~75kw
• Attachments：Quick Hitch, Fork, Bucket, Clamp, etc.
• Min. Ground Clearance：330mm
• Driving Type：Hydrostatic 4WD
• Steering Type：4 Wheel Steering
• Driving Mode：Front Steering, Crab Steering,4 Wheel Steering
• Operating Weight：5560kg
• Warranty：1 Year
• Delivery Time：30 Days
• Color：Yellow, White, Customized
• Usage of Telehandler：Agriculture, Construction
• Transport Package：Container
• Specification：3 ton telescopic forklift
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8427209000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Lift height >5000mm Condition New Name M630-60 Telehandler Rated Loading Capacity 3000kg Max. Lifting Height 6000mm Engine Chinese/Yanmar/Kohler Rated Power 55~75kw Attachments Quick Hitch, Fork, Bucket, Clamp, etc. Min. Ground Clearance 330mm Driving Type Hydrostatic 4WD Steering Type 4 Wheel Steering Driving Mode Front Steering/ Crab Steering/4 Wheel Steering Operating Weight 5560kg Warranty 1 Year Delivery Time 30 Days Color Yellow, White, Customized Usage of Telehandler Agriculture, Construction Transport Package Container Specification 3 ton telescopic forklift Trademark STEEL CAMEL Origin China HS Code 8427209000 Production Capacity 600 Sets/ Year

Product Description

Material handling equipment 3 ton terrain telescopic handler forklift
 General introduction:
 >> TUV, CE approved.
 >> Very compact size, can drive into a 20ft container directly.
 >> Hydrostatic transmission system, one accelerator pedal, one brake pedal, simple drive like auto cars. Full wheel steering system, 3 different driving mode switchable from inside cabin, can choose 4 wheel steering, front steering or crab steering according to different working environment.
 >> Hydro-electrical joystick control, all actions are gental, and lightweight operation, the operator won't feel tired even after long time operation.
 >> Top class Italy hydraulic system, water proof electrics.
 >> 3 engines of different emission standard available, Chinese engine, Yanmar Euro IIIA, Germany Hatz Euro V/EPA Tier 4.
 >> Heavy duty axle with inside wet brake, bigger braking torque, shorter braking distance
 >> Multifunction loading sensor

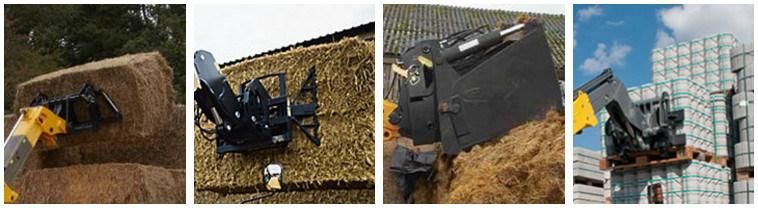

 >> Hydraulic quick coupling system, can hook various attachments like bucket, bale grapple, working platform, etc.


Technical data:

Engine	Kohler EPA Tier 4 / Yanmar / Chinese
Rated power	55kw~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	6000mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

Application of STEEL CAMEL M630-60 telescopic fork material handler:

STEEL CAMEL M3.0-6 4x4 mini telehandler is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-static transmission, hydraulic power steering, hydraulic brake, full-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.
