• Model NO.：FD35
• Lift height：3000~5000mm
• Condition：New
• Color：Green
• Engine Model：Japanese Shimadzu Brand Pump and Valves
• Weight：4450kg
• Fork Size：1070*125*50mm
• Mast Type：2stage 3m Mast
• Model：Fd35
• Engine：Isuzu
• Configuration：Warning Light
• Attachment：Side Shift Fork Positioner
• Options：Soild Tyre
• Other：Luxury Seat
• Transport Package：Container Package
• Specification：3500kg load capacity
• Trademark：SNSC
• Origin：Anhui, China(Mainland)
• HS Code：84272090
• Production Capacity：1000,Month

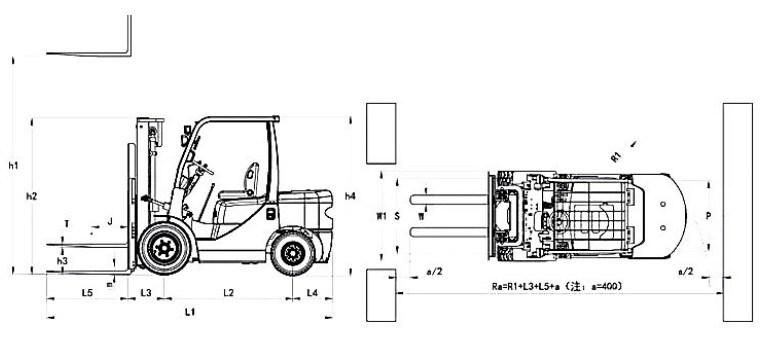

Model  UnitFD35Freaturespower type ---DieselRated Load kg3500Load CenterJmm500Lifting Heighth1mm3000Free Lifting Heighth3mm160Fork Size Size(L*W*H) mm1070x125x50Mast Tilt Radius °6/12Minimum Truning RadiusR1mm2445Minimum Stacking Right Angle Channel Width mm4320Minimum Right Angle Channel Width mm2120Minimum Ground Clearance mm120Front OverhangL3mm495Overhead Guard Height mm2137PerformanceMax.Traveling Speed(Full Load) km/h20Max.Lifting Speeding(Full Load) mm/s470/520Max.Climbing Ability %20DimensionOverall Length (Without Fork)L1mm2765Overall WidthW1mm1230Max.Fork Lifting Height(With Load Backrest) mm4265Mast Heighth2mm2095 Tyre(Front/Rear) mm28x9-15-12PR/ 6.50-10-10PRWheel Base mm1700Wheel Tread(Front/Rear) mm1000/970Curb Weight(Without Load) kg4850PowerBattery Voltage/Capacity V/Ah12/90 Rated Power/Speed km/r.p.m42/2650 Rated Torque/Speed Nm/r.p.m174/2000 BorexStroke mm95x105 Cylinder Amount ---4 Displacement L2.98 Fuel Tank Capacity L70 Operation Pressure Mpa17.5


Detailed Images

3.5Ton Mitsubishi Engine FD35 Diesel Forklift

This Mitsubishi engine performs very well.It's using Japanese technology.

Good quality. It has the advantage of being durable and oil-saving.

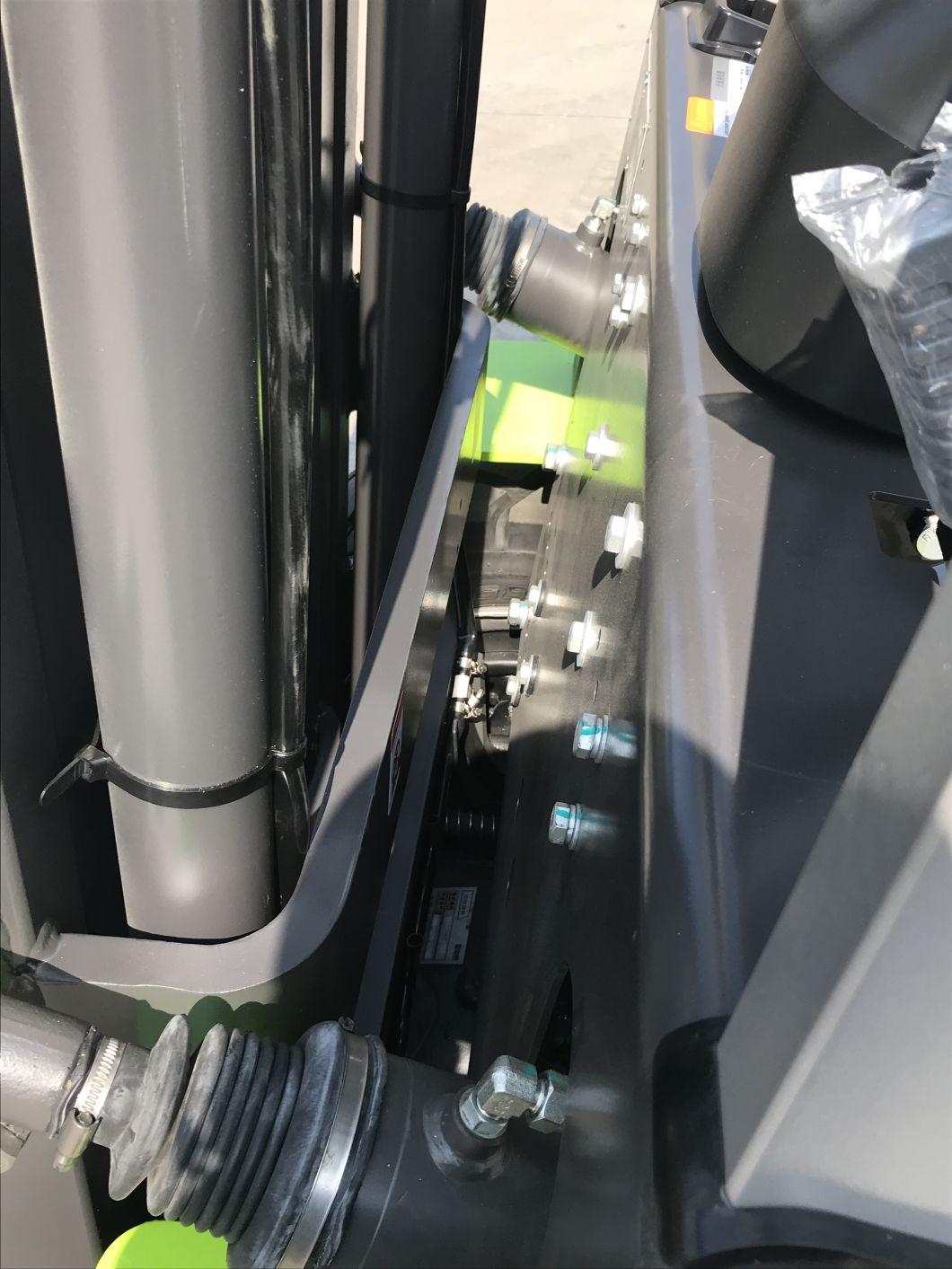

3.5Ton Mitsubishi Engine Diesel Forklift Dust cover
and Hydraulic transmission

Our forklift is equipped with dust cover, which can better prevent dust, clean and environmental protection.

If you like hand transmission or mechanical transmission, price will be much more competitive.

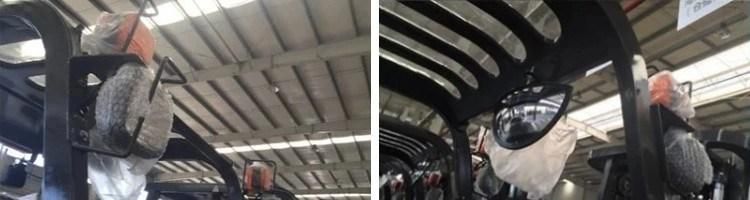

This kind of light guard adopted steel structure. It's quality sturdy.

This rearview mirrior is triangle. Beause it's advatage field widely.

Certification

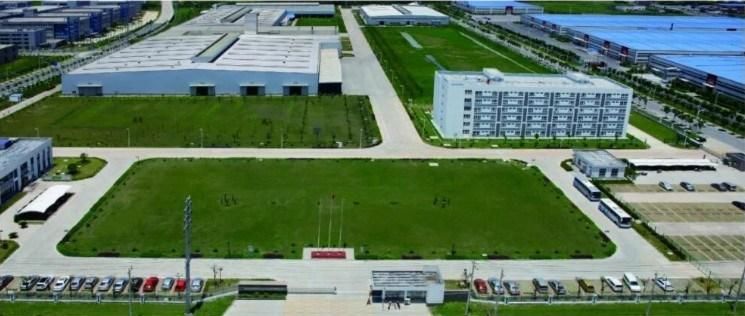

Our Company

We are top 3 in Chinese forklift truck manufactures and top 20 in the world,

with 130,000 square meters production area, over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume.

FD25 2.5T diesel forklift with. We already exported many units to different countries in the world.
Our Production



We have all kinds of forklifts that can meet your needs.

I. Diesel forklift truck range from 1 to 10ton;(FD30/35/40/50/60,70/80)

II. Battery forklift truck range from 1.5 to 3.5ton;(FB15/20/25/30/35)

III.LPG and gasoline forklifts range from 2 to 3.5 ton;

IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)

V.4 *4 all wheel drive off-road forklift range from 1.8to 5ton.

FAQ

1.What's the Certificate do you have?
Our Forklift has passed all kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.
2. Can you customize and design as the clients' requirement?
Un will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 15 month / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do! With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery or LC at sight, or 70%balance upon BL COPY.
6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend your product time
