• Model NO.：CPCD25
• Lift height：3000~5000mm
• Condition：New
• Fork Dimension：1070,122,40mm
• Min.Turning Radius：2240mm
• Groud Clearance：120mm
• Overhead Guard Height：2160mm
• Motor Model：Xinchai 490
• Rated Output：40kw,2650rpm
• Rated Torque：162nm,1900rpm
• Cylinders：4
• Displacement：2.67L
• Transmission：Hydraulic
• Transport Package：Nude in Container
• Specification：3650,1160,2060mm
• Trademark：TITAN
• Origin：Shangdong China(Mainland)
• HS Code：84295100
• Production Capacity：1000 Sets One Year

Basic Info.

Model NO. CPCD25 Lift height 3000~5000mm Condition New Fork Dimension 1070/122/40mm Min.Turning Radius 2240mm Groud Clearance 120mm Overhead Guard Height 2160mm Motor Model Xinchai 490 Rated Output 40kw/2650rpm Rated Torque 162nm/1900rpm Cylinders 4 Displacement 2.67L Transmission Hydraulic Transport Package Nude in Container Specification 3650/1160/2060mm Trademark TITAN Origin Shangdong China(Mainland) HS Code 84295100 Production Capacity 1000 Sets One Year

Product Description

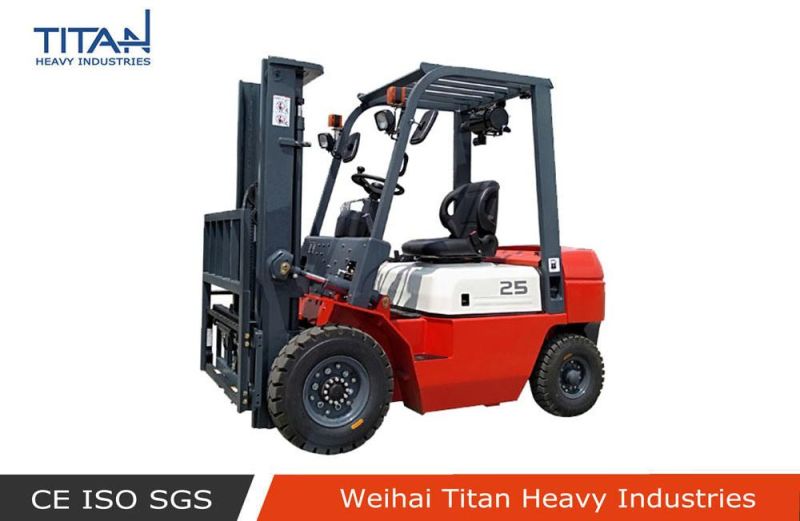

Hot sale 2stage 3m mast 2.5ton electric forklift for sale

 Product specification

1) Wide view forklift mast, it is suitable for hard and rugged terrain working condition.
2) It is tires are big patterm, wideth tires, It is specialized designed for hard , terrain road and way.
3) Working condition of cross-country road is rugged, obstacles in the way.
4) The driving axle is conbined in  Cast steel structure, it get more stength and reliable.


ITEM	SPECIFICATION	ITEM	SPECIFICATION
Characteristics		Dimensions
Load capacity	2500kg	Total length with fork	3650mm
Load center	500mm	Total length without fork	2580mm
Lift height	3000mm	Total width	1160mm
Full free lift height	100mm	Mast extended height	4220mm
Fork dimension	1070×122×40mm	Mast lowered height	2060mm
Mast tilting angle	6/12	Chassis
Min.turning radius	2240mm	Tyres Front	7.00-12-12PR
Groud clearance	120mm/130mm	Type Rear	6.00-9-10PR
Overhead guard height	2160mm	Wheelbase	1600mm
Front overhang	450mm	Tread	970mm
Performance		Service weight	3880kg
Max travel speed	19km/h	Drive
Max lift speed	500mm/s	Battery	12v/80Ah
Max.traction power	18kw	motor model	Xinchai 490
Max. gradeability	20%	Rated output	40kw/2650rpm
Fuel tank capacity	60L	Rated  torque	162Nm/1900rpm
Transmission	Hydraulic	Cylinders	4



Main Specification

--China Xinchai 490 engine 42KW.
--Automatic transmission.
--2-stage 3000mm mast.
--Side shifter.
--1070mm fork.
--Pneumatic tire.
--Top-grade seat.
--Warning and AR light.
--Special-radiator for top hot area.

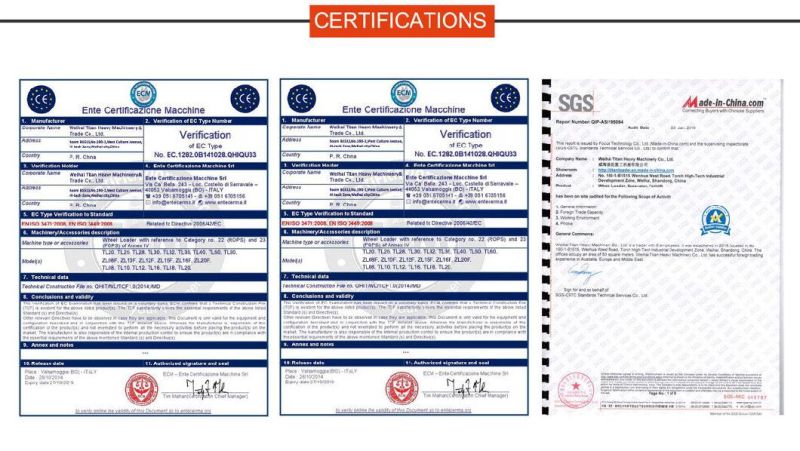

Certifications
All the machine with CE ISO SGS certificate.

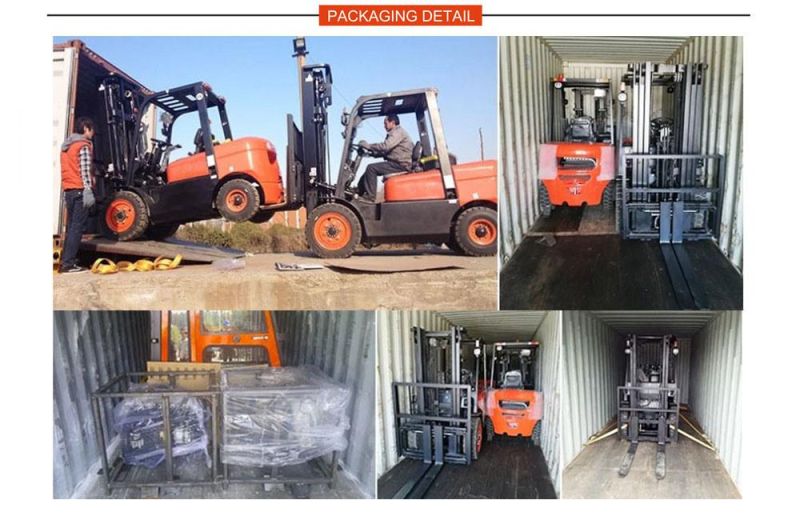

Packaging Details
TITAN Transport packaging team helps our customer to transport their machine in safe and secure way without any damage. Close to Qingdao port, we have the natural advantage to deliver your cargo safe, on time with competitive freight cost.

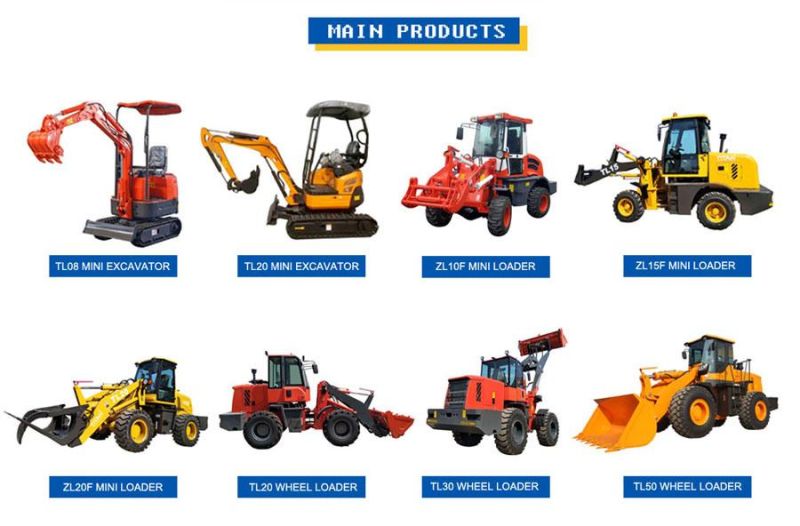

Main Products


OUR SERVICE

Our trained Professional service team offers high quality in-time service in a very friendly way.
For a good customer experience, the content of pre -sales includes the recommendation on the right products basis on condition. All you have to do is to inform us your needs.
For After-sales, to minimize the downtime, we offer air delivery for the spare parts which are within guarantee within 3 working days. We have professional technician to support trouble clearing and maintenance.

Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.

One year guarantee for whole machine main parts.
24 hours technical support by email.
User manual and details videos or CD if you requested For each forklift

After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.

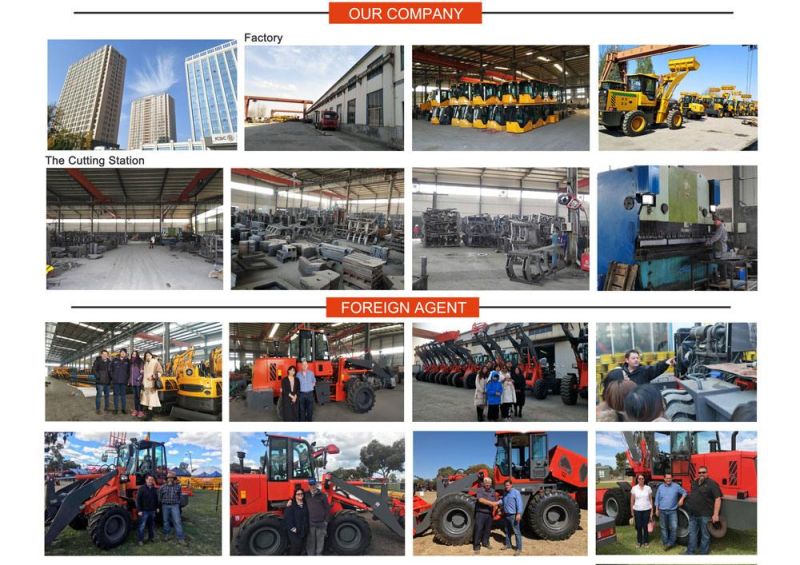

About Us
Our company Weihai Titan Heavy Machinery ,We are a professional wheel loader and excavator factory in China,owns more than 11 years experiences on producing and exporting wheel loader.We are actively trying to develop agents all over the world, looking forward to cooperating with you.



FAQ

Q:Why choose Titan?
We sell every machine at a fair price.As our production increases,we are getting much support from the purchase source of raw meterial.
We leave the maximum profit to customer.
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan team: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
The quality control is not an empty word in TITAN.Our products are tested and granted CE cetificate.

Q:What is Titan warranty?
TITAN has a professional sales and after-service team.We are trying our best to make a good service for every customer.
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.

Q:What about Titan delivery term?
TITAN Transport packsging team helps our customer to transport their machine in safe and secure way without any damage.
10-20 days after down payment received.

Q:What about the payment term?
30% advance payment,70% balance by T/T.
