• Model NO.：YY-TLF-B382072-AQ
• Advantage：High Quality Forklift Parts
• Manufacturer：Genuine Forklift Parts Maker
• Transport Package：Corrugated Carton with Plywood Case
• Specification：60*15*15cm
• Trademark：Leading forklift parts
• Origin：China
• HS Code：8431390000
• Production Capacity：10000 PCS , Month

Basic Info.

Model NO. YY-TLF-B382072-AQ Advantage High Quality Forklift Parts Manufacturer Genuine Forklift Parts Maker Transport Package Corrugated Carton with Plywood Case Specification 60*15*15cm Trademark Leading forklift parts Origin China HS Code 8431390000 Production Capacity 10000 PCS / Month

Product Description

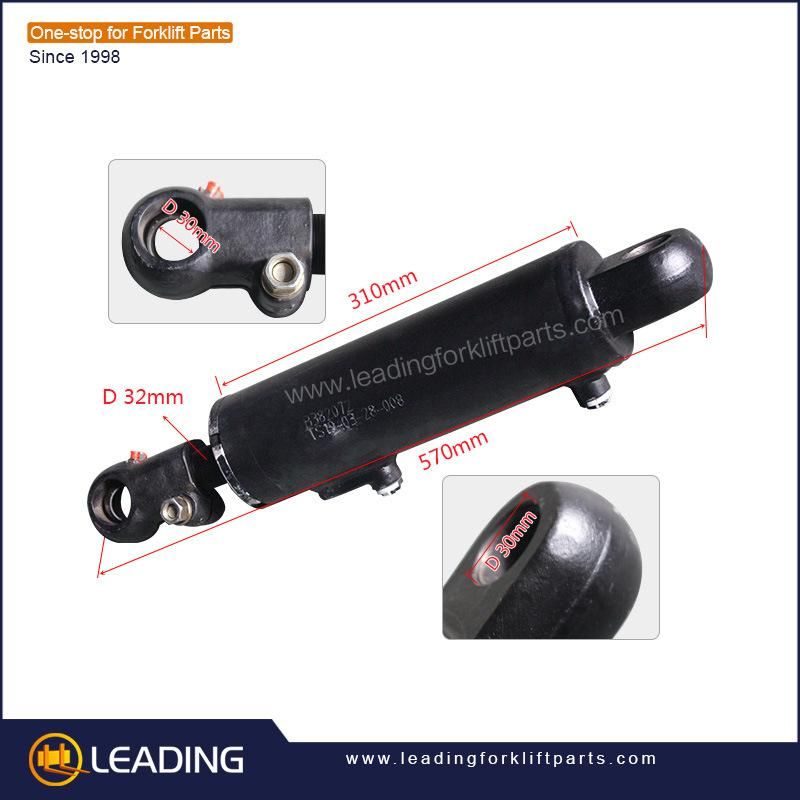

Product Title: Forklift parts cylinder spare parts forklift tilt cylinder for sale
Product Model: Lift truck tilt cylinder YY-TLF-B382072-AQ




Item	Description
Product Name	Lift truck tilt cylinder (Tailift 5T)
P/N	YY-TLF-B382072-AQ
Applied Model	Tailift 5T (AQ original )
Net Weight (kg)	15
Gross Weight (kg)	17
Qty per Carton	1
Carton Size (cm)	60*15*15

Lift Truck Tilt Cylinder

Lift truck tilt cylinder is installed on the forklift upright mast. Lift truck tilt cylinder is mainly composed of the main parts such as the piston, cylinder body, piston rod, upper cover, lower cover, compression nut and cover nut.

Inspection and Repair of Lift Truck Tilt Cylinder

1. After disassembling lift truck tilt cylinder, the forklift cylinder parts should be carefully cleaned and dried.
2. Check the coaxiality of the forklift piston and forklift piston rod. Mount the forklift piston rod on the V-shaped frame and check with a dial indicator. If the accuracy of the forklift piston does not meet the accuracy requirements and is out of tolerance, it should be replaced.
3. Check if the piston of the forklift is bent. Check with V-shaped frame and dial indicator. When it is bent, it should be corrected and repaired.
4. When the surface of the forklift tilt cylinder is seriously worn or scratched, it can be repaired by honing.
5. If the inner hole of the forklift guide tube is seriously worn or scratched, it should be replaced.
5. If the leather cup and forklift sealing ring are worn and broken, they should be replaced. When an O-ring seal is used on a forklift piston, it generally loses its original shape after several years of use and should be replaced.
7. The clearance between the repaired tilt cylinder inner surface and the forklift piston should be 0.04-0.13mm, but the clearance should not be greater than 0.25mm.
8. The gap between the piston rod of the forklift and the guide sleeve is 0.04-0.15mm. If the gap is greater than 0.45mm, the guide sleeve should be replaced.

Specifications of Lift Truck Tilt Cylinder


Name	Unit	Parameter
Cylinders diameter (piston diameter)	mm	40~160
Rod diameter (piston rod diameter)	mm	20~120
Stroke	mm	50~2500
Pressure	MPa	16~25
Operating temperature	ºC	-40~120
Piston rod coating NSS neutral salt spray test time	H	≥96
