• Model NO.：BSX-124T3-50001DB1
• Advantage：High Quality Forklift Parts
• Keywords：Differential Case
• Transport Package：Inside PVC Bag, Outside Carton
• Specification：38*38*35 cm
• Trademark：Leading Forklift Parts
• Origin：China
• HS Code：8431201000
• Production Capacity：5000 PCS , Mounth

Basic Info.

Model NO. BSX-124T3-50001DB1 Advantage High Quality Forklift Parts Keywords Differential Case Transport Package Inside PVC Bag, Outside Carton Specification 38*38*35 cm Trademark Leading Forklift Parts Origin China HS Code 8431201000 Production Capacity 5000 PCS / Mounth

Product Description

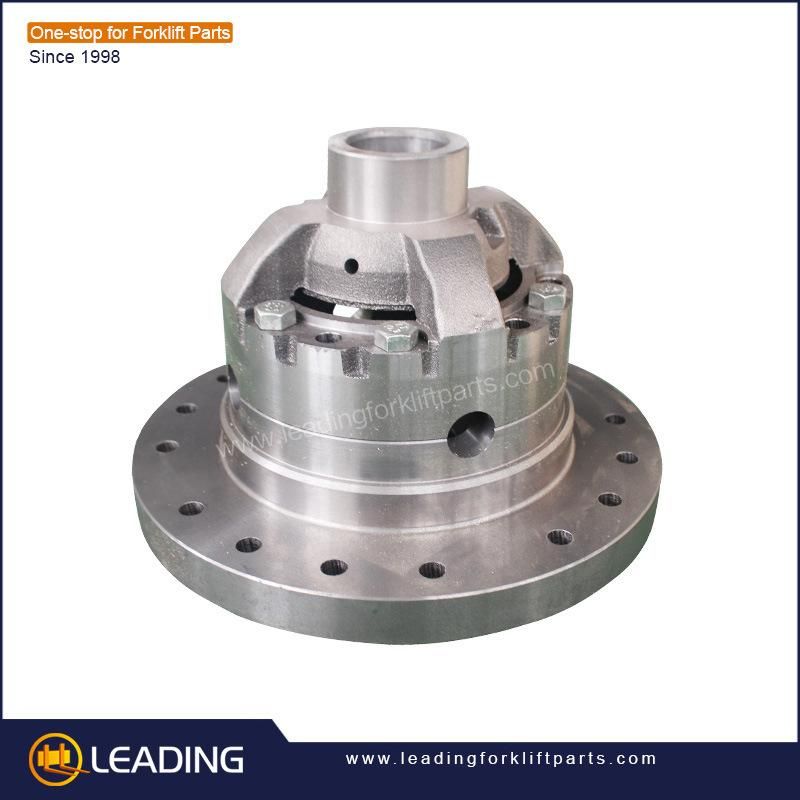

Product Title: Forklift differential case
Product Model: Forklift differential case BSX-124T3-50001DB1




Item	Description
Product Name	Forklift differential case
P/N	BSX-124T3-50001DB1
Applied Model	For Tailift Heli forklift 5T
Net Weight (kg)	27.5
Gross Weight (kg)	30
Qty per Carton	1
Carton Size (cm)	38*38*35

Forklift Differential Case

Forklift differential case is the forklift differential housing. Forklift differential case has a hollow structure, and its shape is determined according to the structure of different models and differentials. The function of forklift differential case is to combination box and support base.

The side wall of the forklift differential case is provided with a half shaft mounting through hole for mounting a half shaft and a planet gear mounting through hole for mounting a planet gear shaft. The forklift differential case is also provided with a lubrication passage. The lubrication passage includes a half-shaft lubrication unit and a planetary gear lubrication unit. The half-shaft lubrication unit includes an oil guide groove and a lubrication ring communicating with the oil guide groove. The oil guiding groove is opened on the hole wall of the half shaft mounting through hole, and extends spirally along the axial direction of the half shaft mounting through hole.

The lubricating ring is opened on the inner wall of the housing along the circumferential direction of the through hole of the half shaft to install the position of the half shaft gear gasket. The planetary gear lubrication unit includes an oil storage groove and a lubrication flow channel communicating with the lubrication ring. The oil storage groove extends along the circumferential direction of the planetary gear installation through hole. Therefore, the setting of the lubrication passage greatly improves the reliability of forklift differential.
