• Model NO.：4DF3-3701010C013-HL2
• Advantage：High Quality Forklift Parts
• Transport Package：Corrugated Carton with Plywood Case
• Specification：22*19*22 cm
• Trademark：Leading Forklift Parts
• Origin：China
• HS Code：8501641090
• Production Capacity：500000 PCS, Month

Basic Info.

Model NO. 4DF3-3701010C013-HL2 Advantage High Quality Forklift Parts Transport Package Corrugated Carton with Plywood Case Specification 22*19*22 cm Trademark Leading Forklift Parts Origin China HS Code 8501641090 Production Capacity 500000 PCS/ Month

Product Description

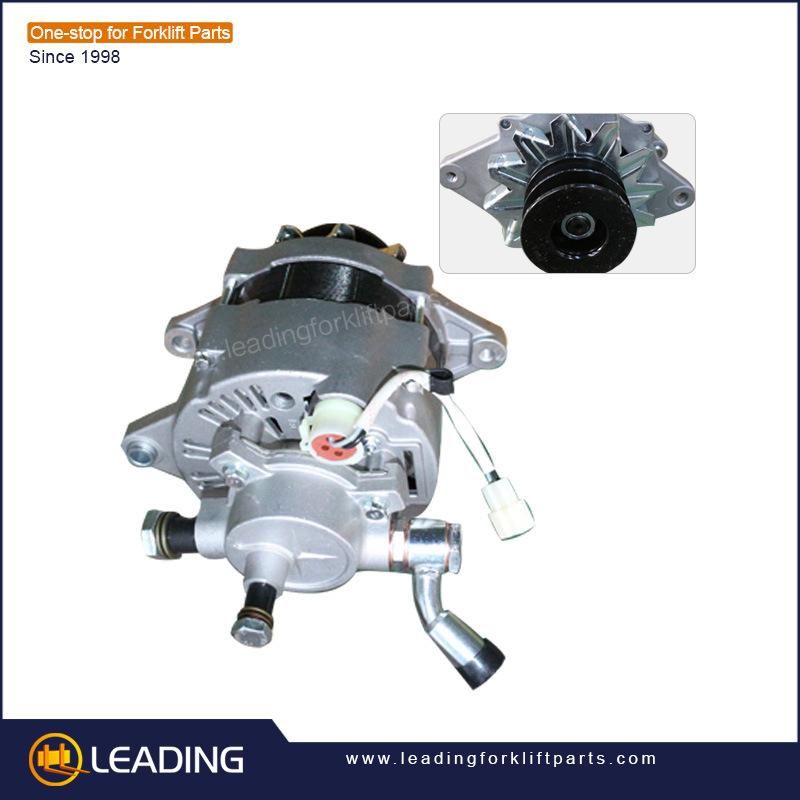

Product Title: Forklift trucks engine parts engine alternator
Product Model: 4DF3-3701010C013-HL2 Forklift engine alternator




Item	Description
Product Name	Forklift engine alternator  (XC4DF3 / with pump)
P/N	4DF3-3701010C013-HL2
Applied Model	For Xichai diesel engine 4DF3 / National emission III standard
Net Weight (kg)	8.5
Gross Weight (kg)	10.5
Qty per Carton	1
Carton Size (kg)	22*19*22

Installation and Heat Dissipation of Forklift Diesel Engine Alternator

The front end of the alternator of the forklift diesel engine is equipped with a pulley and a fan. The engine drives the rotor shaft of the generator and the fan to rotate together through the belt. When the forklift generator is working, heat will be generated in the stator winding and the excitation winding.

If the temperature is too high, the insulation of the wires will be burned and the generator will not work properly, so it is necessary to dissipate heat for the generator. The ventilation and heat dissipation of the generator are completed by the fan. The rear end cover of the forklift generator has an air inlet and the front cover has an air outlet. When the drive belt wheel is driven by the engine crankshaft, the fan on the forklift generator rotor shaft rotates so that the air flow is cooled inside the forklift generator to achieve heat dissipation.
