• Model NO.：ERB15
• Lift height：3000~5000mm
• Condition：New
• Overall Width：900mm
• Weight：1130kg
• Fork Size：1150*160*56mm
• Controller：Curtis
• Min. Ground Clearance：29mm
• Battery Voltage：24V
• Base Distance：1415mm
• Brake Type：Electromagnetic
• Warranty：1 Year or 2000 Working Hours
• Color：Customize
• Product Name：1500kg Pallet Stacker 1.5 Ton Electric Stacker
• Product Type：Electric Stacker
• Certificate：Ce,ISO
• Legs Type：Narrow Legs
• Operating Type：Standing
• Transport Package：Container
• Specification：1875x720x1980mm
• Trademark：LTMG
• Origin：China
• HS Code：8428109000
• Production Capacity：1000sets,Year

The specification of 1.5 ton Electric Stacker Model ERC150 Type  Narrow legsMast type  2-Stage STDLoad capacitykg1500 Load centermm600Wheel basemm1325Operating type  Walkie/Stand onWheel type PUWheel quantity driving wheel/
Balance wheel/Bearing wheel 1/2/4 Standard lift heightmm3000 Lowered fork heightmm85 Fork size(length/width/thickness)mm1150(1200)/180/60 Overall lengthmm1940/2360 Overall widthmm850Outside with between legsmm570/600/650/685 Inside with between legsmm180/230/280/315 Min.turning radiusmm1630/1990Min.aisle width for pallets 800×1200mm2180/2580Min.aisle width for pallets 1000×1200mm2210/2600Min.groud clearancemm30Travel speed,laden/unladenkm/h5/6 Lift speed,laden/unladenmm/s95/130 Travel speed,laden/unladenmm/s110/100radeability,laden/unladen%5/8 Battery voltageVAC1.5/DC3.0/DC0.15 Battery capacityAh24 Brake 240Controller CURTIS Battery weightkg235 Service weight with batterykg1190
Product Features

1.Germany system technology of warehousing equipment and leading international level.

2. The product with the principle of human engineering, fully humanized design.

3. The equipment using the German imports of seal, bearing and electrical components,further to ensure the reliability of the vehicle.

4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.

5. With strict accordance of ISO9000 and CE standards for product development and production,ensure product quality.

6. Flexible and convenient operation, energy saving and environmental protection, vehicle low noise,stable operation, high safety coefficient.

7. Large capacity of traction battery for vehicles, and fully guarantee the continuous working time.

8. All sold products enjoy a high quality after sale service, ensure the spare parts supply timely,authenticity and continuity, to solve customer any worry from the later period.




Our electric pallet stacker Advantages:

1. Capacity from 1.0t-2.0t, lift height(1t-1.5t) 1.6m-5.0m, 2ton from 1.6m-3.0m.

2. Simple structure,easy to maintain and repair.

3. Long operation handle allows more light steering.

4. Horizontal driving wheel, electromagnetic brake.

5. CURTIS controller, MAHLE hydraulic motor.

6. Safety features include a horn and belly  reverse button.

7. Bias type, middle driving type, straddle leg can be optional per your request.

8. Automatic battery charger,battery voltage indicator.

9. Integral strong chassis with alloy steel insert legs.


Packing and shipping

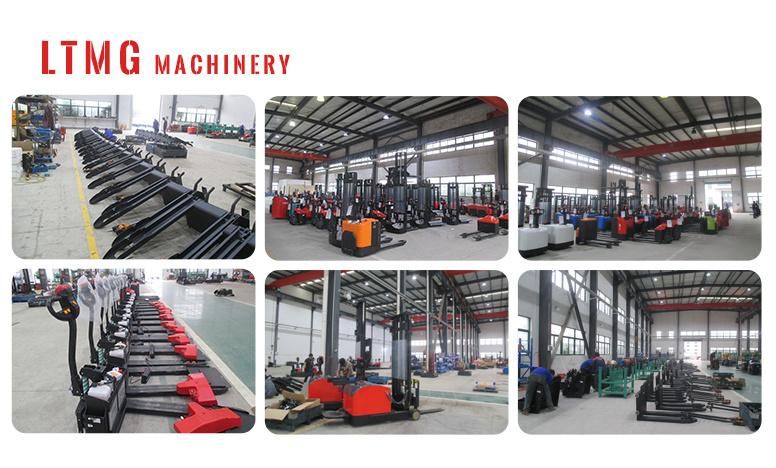

Our factory



After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
