• Model NO.：FD30
• Lift height：6m
• Condition：New
• Engine：Isuzu Engine or Chinese Engine
• Fork Size：1220mm*125mm*50mm
• Wheelbase：1700mm
• Tire Type：Pneumatic
• Warranty：1 Year,2000 Working Hours
• Item：Hydraulic Cylinder Forklift
• Max.Lifting Height：3000mm
• Truck Weight：4780kg
• Brand：Ltmg
• Transport Package：Container
• Specification：2760mm*1285mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer


LTMG
Model

FD30
Load capacity

kg
3000
Load center

mm
500
Power unit


Diesel
Operator type


Driver/seat
Tire type


Pneumatic
Wheel
Front/rear

2/2
Max. lifting height

mm
3000
Free lift

mm
150
Fork size
L*W*T
mm
1070*125*45
Tilt range
Mast forward/backward
deg
6/12
Overall length(without fork)

mm
2705
Total width

mm
1225
Mast height (fork lowering)

mm
2075
Overall height fork raised
With backrest
mm
4250
Height to head guard

mm
2140
Turning radius(outside)

mm
2445
Front face of fork to front axle

mm
480
Min. right angle stacking aisle
without load length&clearance
mm
2925
Speed
Max Travelling full/no load
km/h
18/19.5
Lifting full/no load
mm/s
450/500
Lowering full/no load
mm/s
450/450
Max.drawbar pull
Power shift T/M full/no load
kg
1500/1000
Manual shift T/M full/no load
kg
1550/1000
Gradeability at 1.6km/h
Power shift T/M full/no load
%
18/20
Manual shift T/M full/no load
%
18/20
Truck weight

kg
4380
Weight  distribution
Full load front/rear
kg
6490/890
No load front/rear
kg
1670/2700
Tires
Number
front/rear
2/2
Model
front axle
28x9-15-12PR
rear axle
6.50-10-10PR
Wheelbase

mm
1700
Tread
Front/rear
mm
1000/970
Ground clearance
At lowest point(mast)
mm
120
Frame
mm
135
Brake
Service  brake

Hydraulic-foot pedal
Parking brake

Mechanical-hand lever
Battery
Voltage/capacity
V/AH
12/80
Engine
Model

ISUZU C240
Rated power
kw/rpm
34.3/2500
Rated torque
N.m/rpm
138/1800
Number of cylinders

4
Placement
L
2.369
Fuel tank capacity
L
70
Transmission
Speed forward/backward
Power shift T/M
Manual shift T/M
1-1 power shift T/M
2-2 manual shift T/M

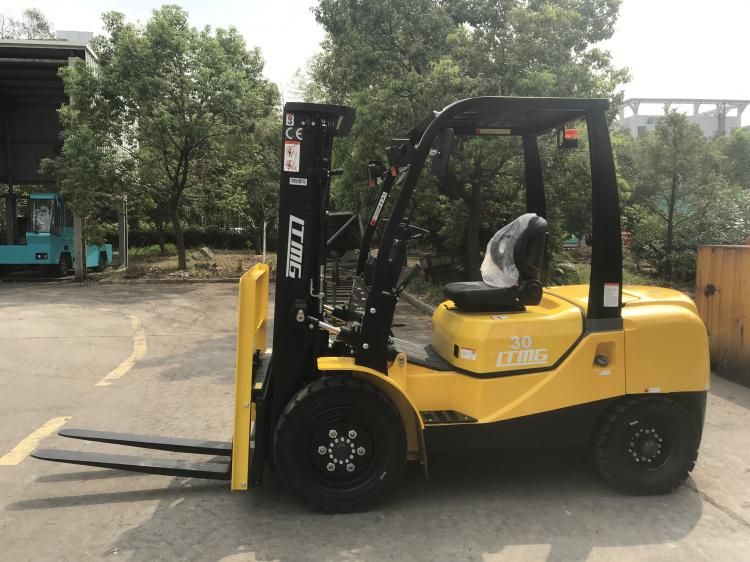

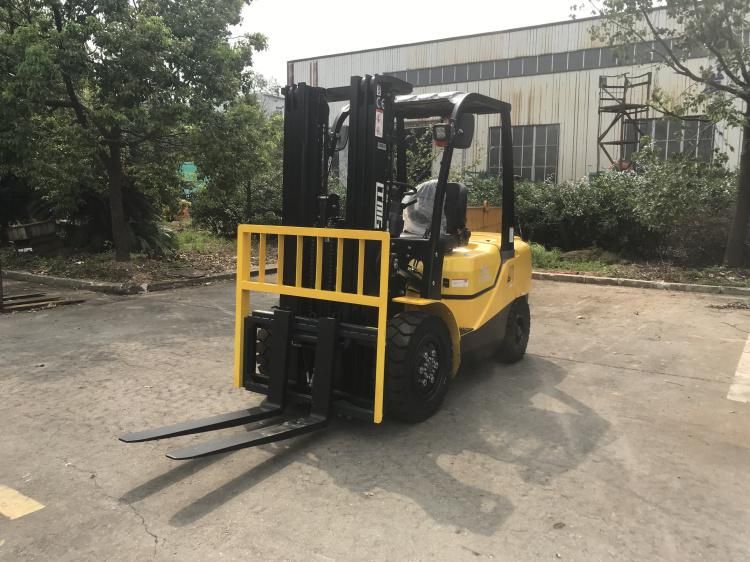

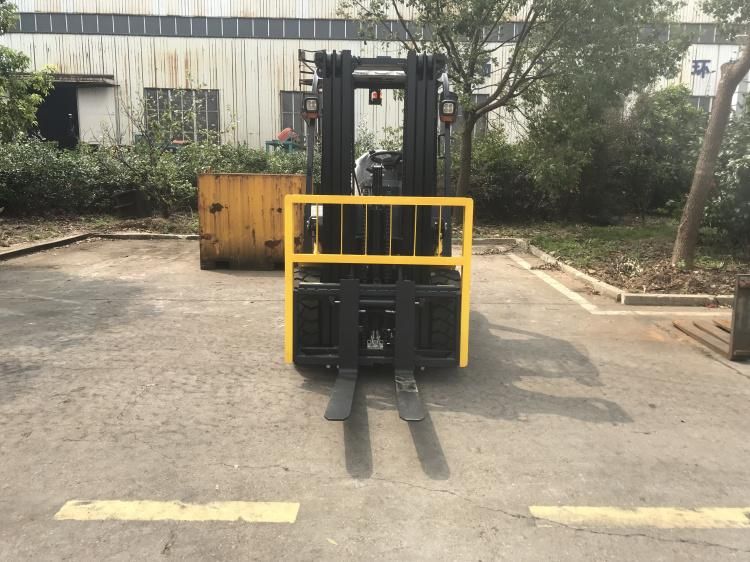

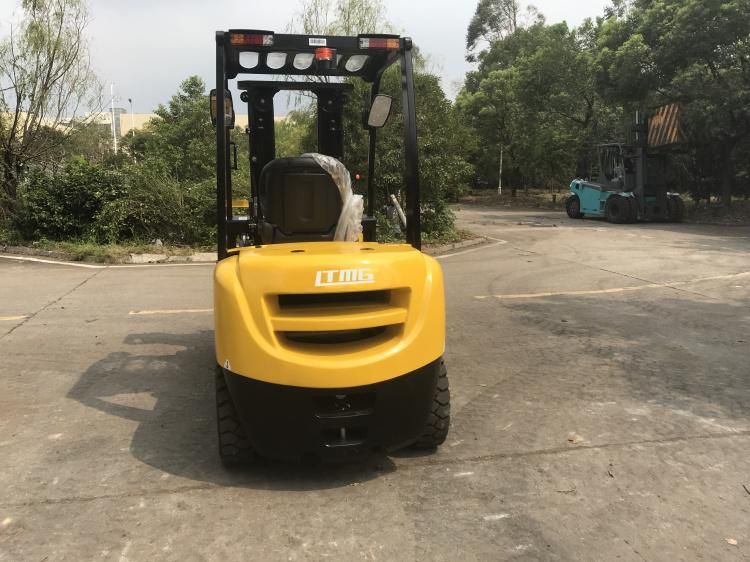

3ton diesel forklift

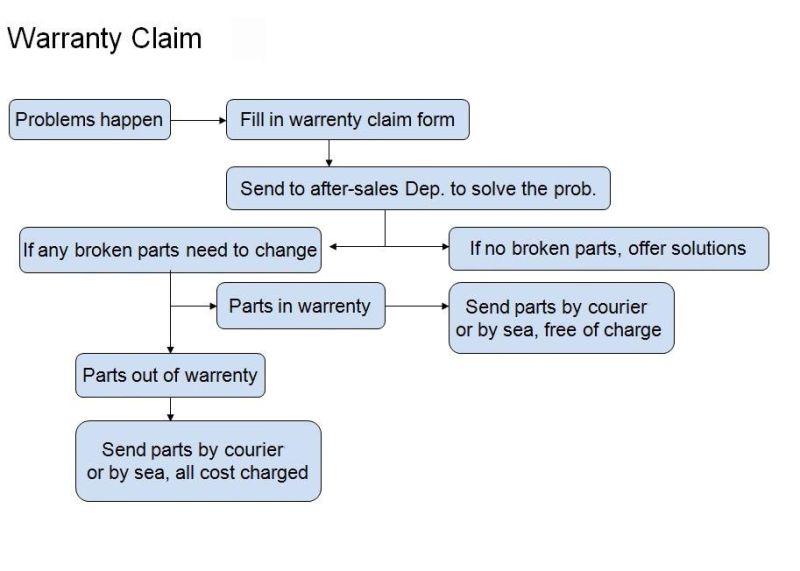

After sales service

Nowadays we have been sell more than 60 countries.

All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please see to our website and product's quality certificate.
