• Model NO.：FD70
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220*150*70mm
• Weight：10450kg
• Engine：Isuzu
• Wheel Base：2250mm
• Color：Decided by Buyer
• Service Brake：Hydraulic
• Rated Power：82.3kw,2000rpm
• Max. Lifting Height：3000mm
• Warranty：1 Year , 2000 Working Hours
• Ground Clearance：200mm
• Transport Package：Container
• Specification：3650mm*2010mm*2500mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Features    1Manufacturer                           LTMG2Model                                FD703Load capacity                         kg80004Load center                            mm6005Power unit                                Diesel   6Operator type                          Driver/seat  7Tire type                  Pnenumatic  8Wheel        Front/rear 4/2Dimension  9Max. lifting height                    mm300010Free lift      mm20511Fork size                                 L*W*Tmm1220*170*7512Tilt range                                Mast forward/backward          deg6/1213Overall length(without fork)     mm374014Total width                              mm199515Mast height (fork lowering)  mm262016Overall height fork raised    With backrest                           mm454017Height to head guard               mm245018Turning raduis(outside)           mm355019Front face of fork to front axle mm62020Min. right angle stacking aislepallet size :1100×1100 add clearence  mm5770Performance   21Speed  Max Travelling      full/no loadkm/h26/3022Lifting                    full/no loadmm/s450/55023Lowering               full/no load         mm/s450/50024Max.drawbar pull                   full/no load  kg5300/215025Gradeability at 1.6km/h         full load%24 Max. Gradeability  full/no load  %26/22Weight            26Truck weight                     kg1045027Weight  distribution     Full  load               front/rear     kg16370/208028No  load                front/rear kg4060/6390Frame           29Tires                                       Number front/rear4/230Model front axle 8.25x15-14PR31rear axle 8.25x15-14PR32Wheel base                               mm240033Tread                                               Front/rearmm1470/170034Ground clearence          At lowest point(mast) mm190Frame mm23035Brake                                            Service  brake power bakeParking brake  Mechanical-hand lever                                     Engine       36Battery                                          Voltage/capacityV/AH2x12V-80AH37Engine                                          Model  ISUZU 6BG1Rated power kw/rpm82.3/2000Rated torque N-m/rpm418/1500Number of cylinders 6Displacement L6.494Fuel tank capacity L14038Transmission                              shift stage(front/rear-type) 2-2 automatic                                       39Operating pressure                    Hydraulic system pressure    kg/cm²200
Our Customers

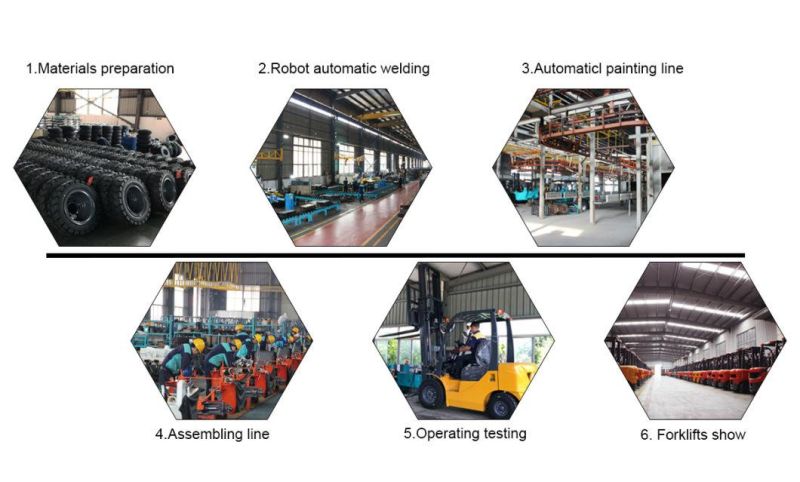

Production Line


Our Factory

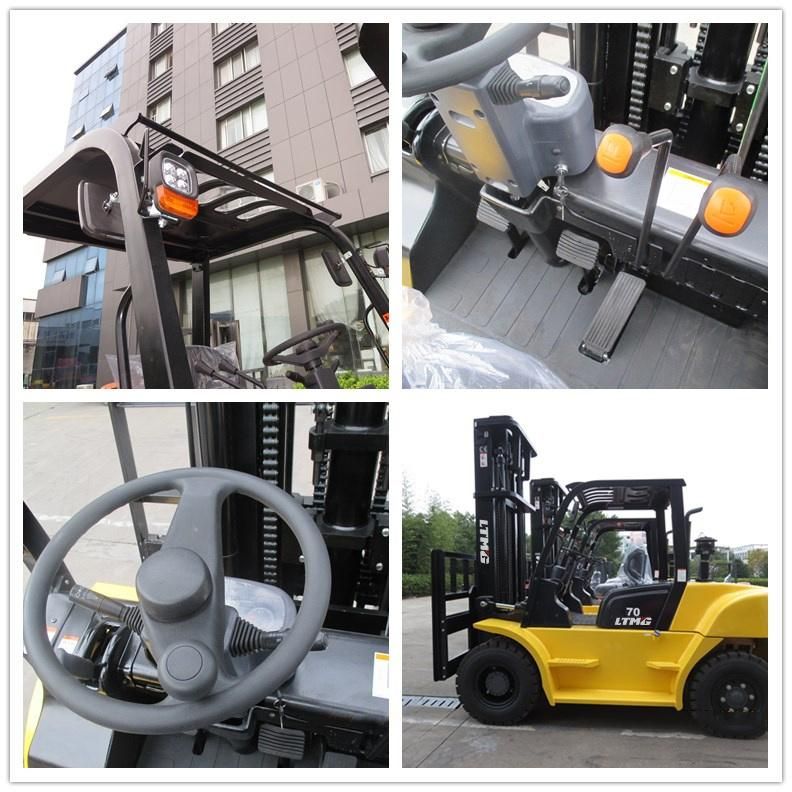

Product Features


1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Packaging & Shipping


After sales service

LTMG always treat after-sale service more important than sale.

Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


FAQ

1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics waysd we can work for shipment?
We can ship construction machinery by various transportation tools.
(1)For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
(2)For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
(3)For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7 days to 90 days.
