• Model NO.：FB20
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Weight：3440kg
• Wheelbase：1400mm
• Free Lift：160mm
• Color：Could Be Designed by Buyer
• Gradeability：12.5
• Battery：48V-450ah
• Certificate：CE,ISO
• Brand：Ltmg
• Warranty：1 Year or 2000 Working Hours
• Transport Package：Nude Packing, Fixed in Container
• Specification：2245mm*1150mm*2145mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer  LTMGModel   FB20Load capacity   kg2000Load center     mm500Power unit   BatteryOperator type  Driver/seatTire type  pneumaticWheel(x=driving)Front/rear        2X/2Max. lifting height   mm3000Free lift  mm160Fork size   L*W*Tmm1070*122*40Tilt range Mast forward/backwarddeg6/12Overall length(without fork)  mm2245Total width  mm1150Mast height (fork lowering)  mm1995Overall height fork raised With backrestmm4030Height to head guard mm2145Turning radius(outside) mm1980Front overhang ( face of fork to front axle) mm445Min. right angle stacking aislenot add load length&clearancemm2425Speed Max Travellingfull loadkm/h13.5Max Travellingno load km/h15Liftingfull loadmm/s240Liftingno load mm/s450Gradeability full load %12.5Truck weight(with standard battery) kg3440Weight  distribution  Fullloadfront/rearkg4565/875Noloadfront/rearkg1445/1995Tires  Number  front/rear2/2Model    front axle21*8-9-16PRrear axle18*7-8-14PRWheelbase  mm1400Tread Front/rear  mm955/950Ground clearanceAt lowest point(mast)  mm110Frame  mm115BrakeServicebrake  Hydraulic-foot pedal                                 Parking brake Mechanical-hand lever                               Battery  Voltage/capacity  V/AH/5hr48V-450Weight with box(standard) kg 825Electric motor AC Driving motor kw11DC Hydraulic driving motor  kw8.6 AC Hydraulic driving motor (as option)kw13Control type  Driving AC , lifting DC
Driving AC , lifting AC (as option ) Operating pressure    kg/cm²175
Product Features

1.Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2.Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.
3.Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.
4.Bigger and non-slip step make operating convenient and safe.
5.The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition

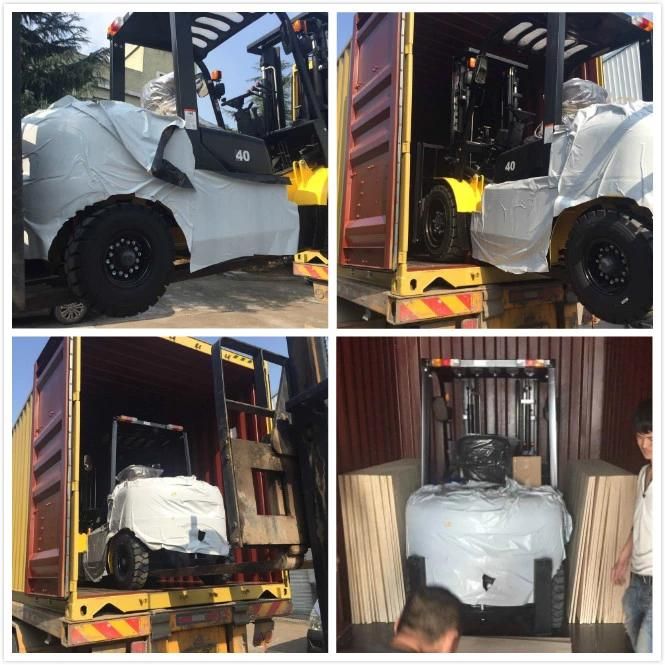

6.Lithium Battery is optional. Packing and Shipping

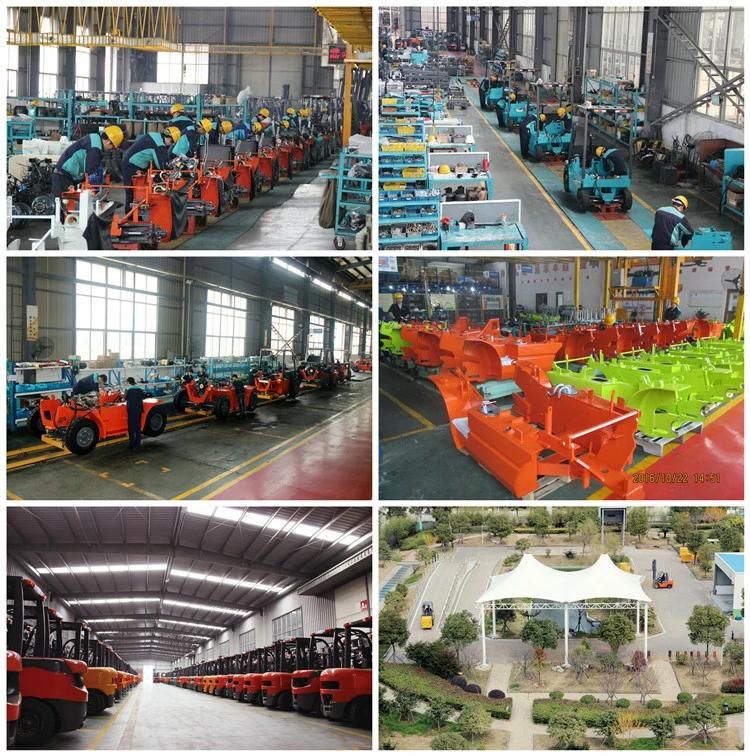

Our Factory

LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors.If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://Ltmgmachine.en.made-in-china.com (Group)
http://Ltmgmachine.en.made-in-china.com  (Forklift)
http://Ltmgmachine.en.made-in-china.com  (Loader)
http://Ltmgmachine.en.made-in-china.com (Airport GSE)



Our customers

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.



Welcome to contact us for further questions!

We have very stronger technique team to serve after sales service.

Any quality problem much welcome to contact us.
