• Model NO.：CPD*A
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：35,100,1070 mm
• Overall Width：850 mm
• Overall Length：1587 mm
• Drive Motor：AC 1.5kw
• Lifting Motor：DC 2.2kw
• Battery Capacity：24V,270ah
• Driving Style：Stand-on Driving
• Transport Package：Pallet
• Specification：Electric forklift
• Trademark：CHEESON
• Origin：China
• HS Code：8427109000
• Production Capacity：5000sets,Year

Basic Info.

Model NO. CPD*A Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Fork Size 35/100/1070 mm Overall Width 850 mm Overall Length 1587 mm Drive Motor AC 1.5kw Lifting Motor DC 2.2kw Battery Capacity 24V/270ah Driving Style Stand-on Driving Transport Package Pallet Specification Electric forklift Trademark CHEESON Origin China HS Code 8427109000 Production Capacity 5000sets/Year

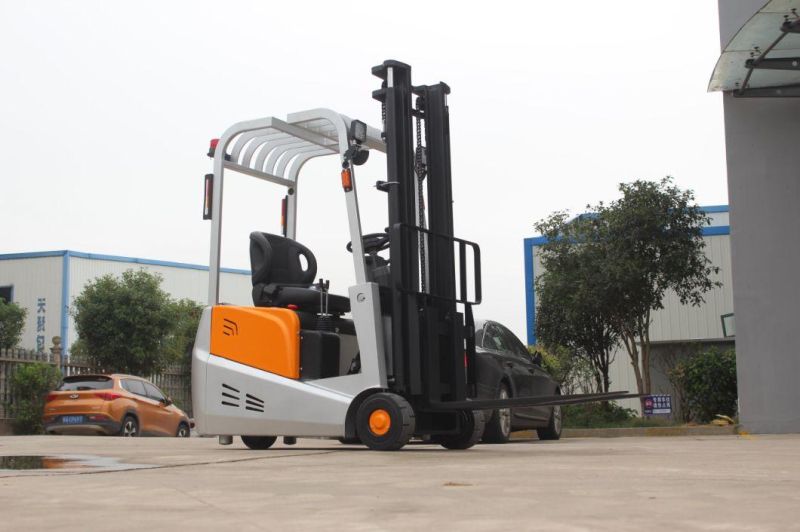

Product Description

01 Curtis electric control with controller multiple automatic protection system.
02 EPS steering energy consumption is reduced by ~ 20%, operation is accurate, steering is light and flexible, driver fatigue is reduced, and productivity is greatly improved.
03 Vertical AC drive, no carbon brush, maintenance free, efficient motor, precise control, strong power output.
04 Small volume, light weight, small transformation radius, easy access to the elevator, suitable for floor and car operation, improve the trafficability and space utilization.
05 The front wheel is rubber solid tire, with strong grip and stable operation.
06 The gantry is designed with buffer system and forward and backward functions.
07 The temporary parking of forklift on the ramp adopts the double insurance method of electric control, automatic and foot brake to provide the maximum safety guarantee for the vehicle parking on the ramp.
