• Model NO.：CQD*D
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Wheel Type：PU
• Reach Distance：555mm
• Minimum Turning Radius：1600mm
• Braking：Electromagnetic
• Drive Motor：2.5kw
• Lifting Motor：3kw
• Battery：Lead Acid
• Battery V/Ah：24V,280ah
• Drive Control Mode：AC
• Transport Package：Pallet
• Specification：Electric Reach Stacker
• Trademark：CHEESON
• Origin：China
• HS Code：8427109000
• Production Capacity：5000sets,Year

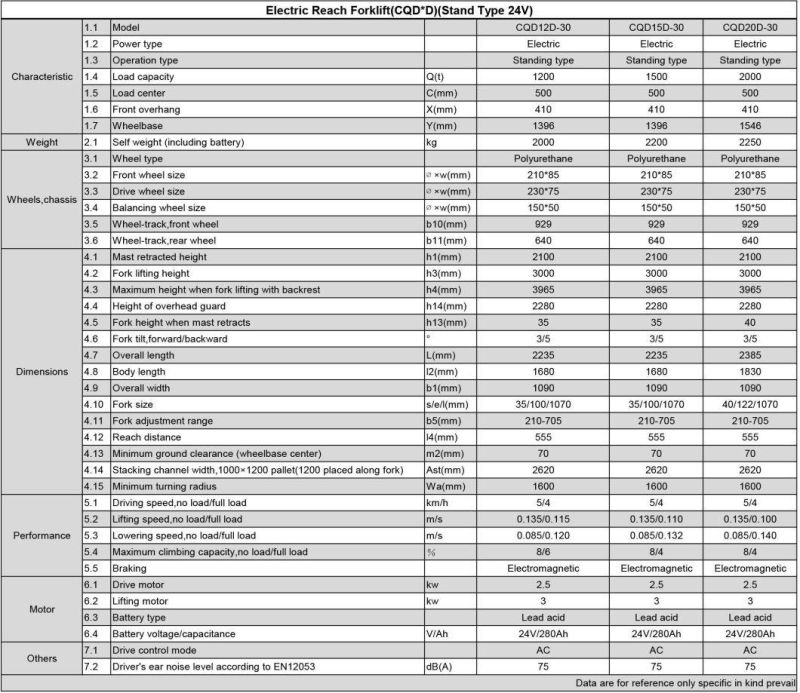

Basic Info.

Model NO. CQD*D Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Wheel Type PU Reach Distance 555mm Minimum Turning Radius 1600mm Braking Electromagnetic Drive Motor 2.5kw Lifting Motor 3kw Battery Lead Acid Battery V/Ah 24V/280ah Drive Control Mode AC Transport Package Pallet Specification Electric Reach Stacker Trademark CHEESON Origin China HS Code 8427109000 Production Capacity 5000sets/Year

Product Description

01 CURTIS electronic control, the controller is equipped multiple automatic protection system.

02 EPS steering energy consumption is reduced by 20%.It is precise to operate, which can reduce driver fatigue, and greatly improve the productivity.

03 Electric reach truck is suitable for large tonnage and high hoisting cargo storage. It applies to a variety of pallets. It has the characteristics of moving forward for the entire gantry, and the turning radius is small, which can neglect obstacles from the bottom of the shelf.

04  When the lifting control lever is in a safe lowering position, the lowering speed of the fork automatically slows down when it drops to 10cm from the ground, effectively preventing the goods from being damaged due to vibration.When the fork rises to the highest position, the buffer system reduces the gantry vibration and improves the operator's comfort.

05 The compact and powerful AC drive motor can start smoothly without complicated acceleration operation. The maintenance cost is greatly reduced by eliminating carbon brushes and contactors.
