• Model NO.：TRS10
• Load center：500mm
• Lift height：3000mm
• Condition：New
• Weight：1650kg
• Wheelbase：1580mm
• Control System：Curtis
• Front Overhang：160mm
• Standard Battery：24V,210ah
• Transport Package：Container
• Specification：1780mm*1020mm*2040mm
• Trademark：LTMG
• Origin：China
• HS Code：8428109000
• Production Capacity：8000sets,Year

  Model TRS10 Power   Battery  Operating type  Walkie/Stand onLoad capacityKg1000 Load centermm500 Front overhangmm160 Wheel basemm1580  Service weightKg1650 Bridge load when laden (Front/Rear)Kg2230/420  Bridge load when unladen(Front/Rear)Kg850/800tyre  PU Wheel size  front wheel mmφ210X85 Wheel size front wheelmmφ252X80Attach wheels(dimensions)mmφ130X55Front wheel tread(Front/Rear) 2/2 x=1Front wheel treadmm945 Rear wheel treadmm620 Mast lowered heightmm2040 Standard lift heightmm3000Max.extend heightmm3855 Mast reach distancemm450Fork angle(Front/Rear)°2/3 Height of Handles In Driving Position Min/Maxmm1160/1450 Lowered fork heightmm35 Overall lengthmm1780 Overall length(Including fork)mm2310 Overallwidthmm1020 Fork sizemm100/35/920 Fork outside distance mm220/660Min.aisle width for pallets1000×1200mm1500Min.aisle width for pallets 800×1200mm1400 Min.turning radiusmm1750 Travel speed,laden/unladenKm/h5.1/5.5 Lift speed,laden/unladenmm/s85/110 Travel speed,laden/unladenmm/s210/75 Gradeability,laden/unladen%6/8 Brake  Electromagnetic Drive motor powerKw1.5 Lift motor powerKw2 Control system CURTIS Standard batteryV/Ah24/210

Product Features
 1.Germany system technology of warehousing equipment and leading international level.
2. The product with the principle of human engineering, fully humanized design.

3. The equipment using the German imports of seal, bearing and electrical components,further to ensure the reliability of the vehicle.

4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.

5. With strict accordance of ISO9000 and CE standards for product development and production, ensure product quality.

6. Flexible and convenient operation, energy saving and environmental protection, vehicle low noise,stable operation, high safety coefficient.

7. Large capacity of traction battery for vehicles, and fully guarantee the continuous working time.

8. All sold products enjoy a high quality after sale service, ensure the spare parts supply timely,authenticity and continuity, to solve customer any worry from the later period.

Shipping&Packing

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

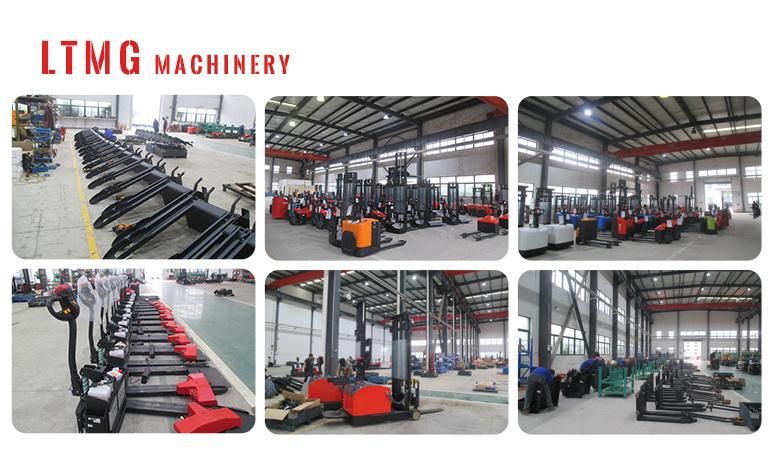

Factory
