• Model NO.：FD60
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：8750kg
• Engine：Isuzu
• Wheelbase：2250mm
• Color：Decided by Buyer
• Max. Lifting Height：3000mm
• Wheel：4,2
• Tire Type：Pnenumatic
• Free Lift：205mm
• Height to Head Guard：2450mm
• Transport Package：Container
• Specification：3530mm*1995mm*2450mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer                                                  LTMGModel                                                             FD60Load capacity                                                kg6000Load center                                                    mm600Power unit                                                       Diesel   Operator type                                                 Driver/seat  Tire type                                                       Pnenumatic  Wheel                                                          Front/rear 4/2Max. lifting height                                           mm3000Free lift                                                          mm205Fork size                                                      L*W*Tmm1220*150*60Tilt range                                                       Mast forward/backward                                     deg6/12Overall length(without fork)  mm3530Total width                                                    mm1995Mast height (fork lowering)                           mm2500Overall height fork raised                             With backrest  mm4420Height to head guard                                    mm2450Turning raduis(outside)                                  mm3300Front face of fork to front axle                        mm615Min. right angle stacking aisle                       pallet size :1100×1100 add clearence  mm5550Speed  Max Travelling      full/no load                           km/h26/30Lifting                     full/no loadmm/s500/550Lowering                full/no load mm/s450/500Max.drawbar pull                                        full/no load  kg5500/2250Gradeability at 1.6km/h                               full load%33Max. Gradeability  full/no load %38/19Truck weight kg8750Weight  distribution                                Full  load                front/rear                                   kg13090/1660No  load                 front/rear                                 kg3860/4890Tires  Numberfront/rear4/2Modelfront axle  8.25x15-14PRrear axle 8.25x15-14PRWheelbase    mm2250Tread  Front/rearmm1470/1700Ground clearence  At lowest point(mast)     mm190Framemm230BrakeService  brake power brakeParking brake  Mechanical-hand leverBattery  Voltage/capacityV/AH2x12V-80AHEngine  Model  ISUZU 6BG1Rated power kw/rpm82.3/2000Rated torqueN-m/rpm418/1500Number of cylinders 6Displacement L6.494Fuel tank capacity L140Transmission shift stage(front/rear-type) 2-2 automaticOperating pressure Hydraulic system pressure                                     kg/cm²200

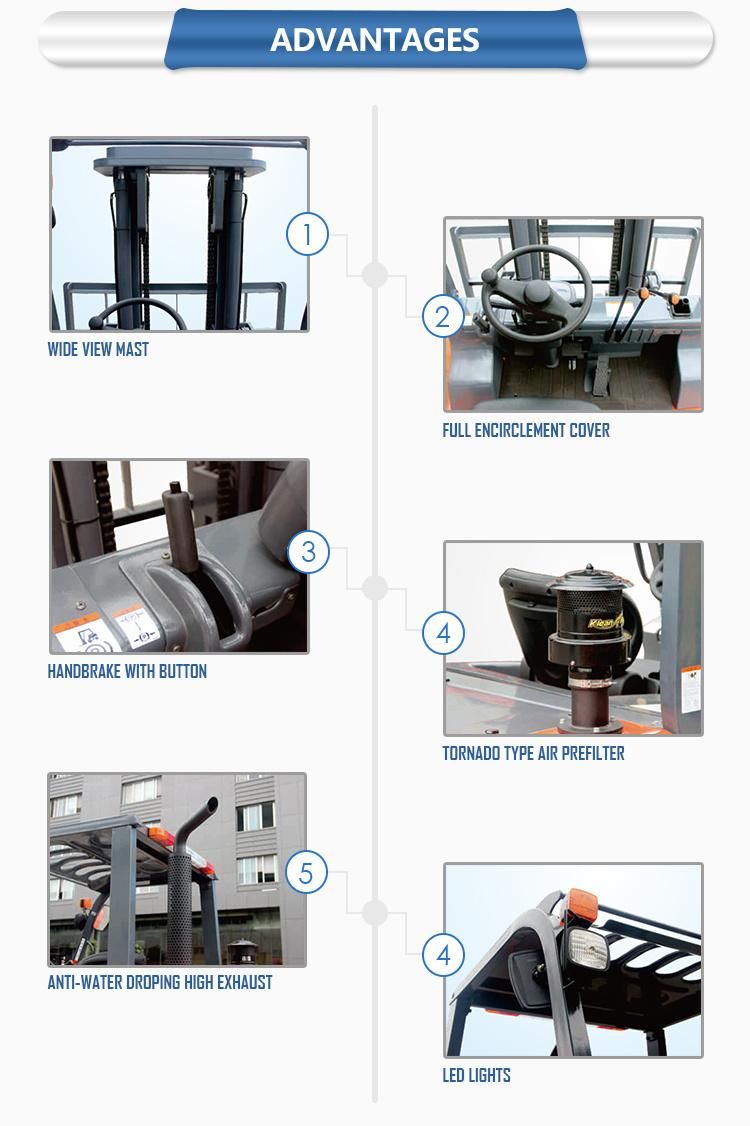

Product Features

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:Middle muffler, more environmental.
6.High technology:Maintenance free radiators adopt Germany technology.

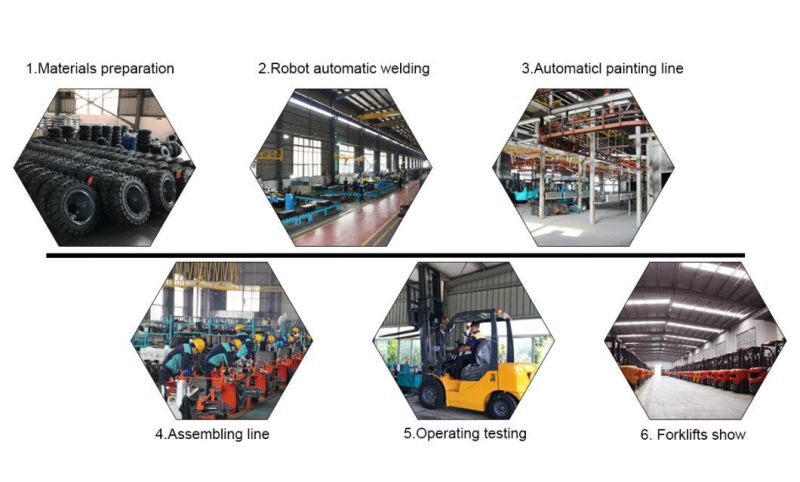

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)





Customers Show/Application Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After sales service

Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
