• Model NO.：FD60
• Load center：600mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：8750kg
• Engine：Isuzu
• Wheelbase：2250mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Overall Length(Without Fork) ：3530mm
• Tire Type：Pnenumatic
• Wheel：6
• Transport Package：Nude Packing, Fixed in Container
• Specification：3530mm*1995mm*2450mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000set,Years

Manufacturer  LTMGModel  FD60Load capacity Kg6000Load center Mm600Power unit  DieselOperator type  Driver/seatTire type  PnenumaticWheelFront/rear 4/2Max.Lifting height Mm3000Free lift Mm205Fork sizeL*W*TMm1220*150*60Tilt rangeMast forward/backwardDeg6/12Overall length(without fork) Mm3530Total width Mm1995Mast height (fork lowering) Mm2500Overall height fork raisedWith backrestMm4420Height to head guard Mm2450Turning raduis(outside) Mm3300Front face of fork to front axle Mm615Min.Right angle stacking aislePallet size :1100×1100 add clearenceMm5550SpeedMax Travelling      full/no loadKm/h26/30Lifting                     full/no loadMm/s500/550Lowering                full/no loadMm/s450/500Max.Drawbar pullFull/no loadKg5500/2250Gradeability at 1.6km/hFull load%33Max.GradeabilityFull/no load%38/19Truck weight Kg8750Weight  distributionFull  load                front/rearKg13090/1660No  load                 front/rearKg3860/4890TiresNumberFront/rear4/2ModelFront axle8.25x15-14PRRear axle8.25x15-14PRWheelbase Mm2250TreadFront/rearMm1470/1700Ground clearenceAt lowest point(mast)Mm190FrameMm230BrakeService  brake Power brakeParking brake Mechanical-hand leverBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Rated powerKw/rpm82.3/2000Rated torqueN-m/rpm418/1500Number of cylinders 6DisplacementL6.494Fuel tank capacityL140TransmissionShift stage(front/rear-type) 2-2 automaticOperating pressureHydraulic system pressureKg/cm²200

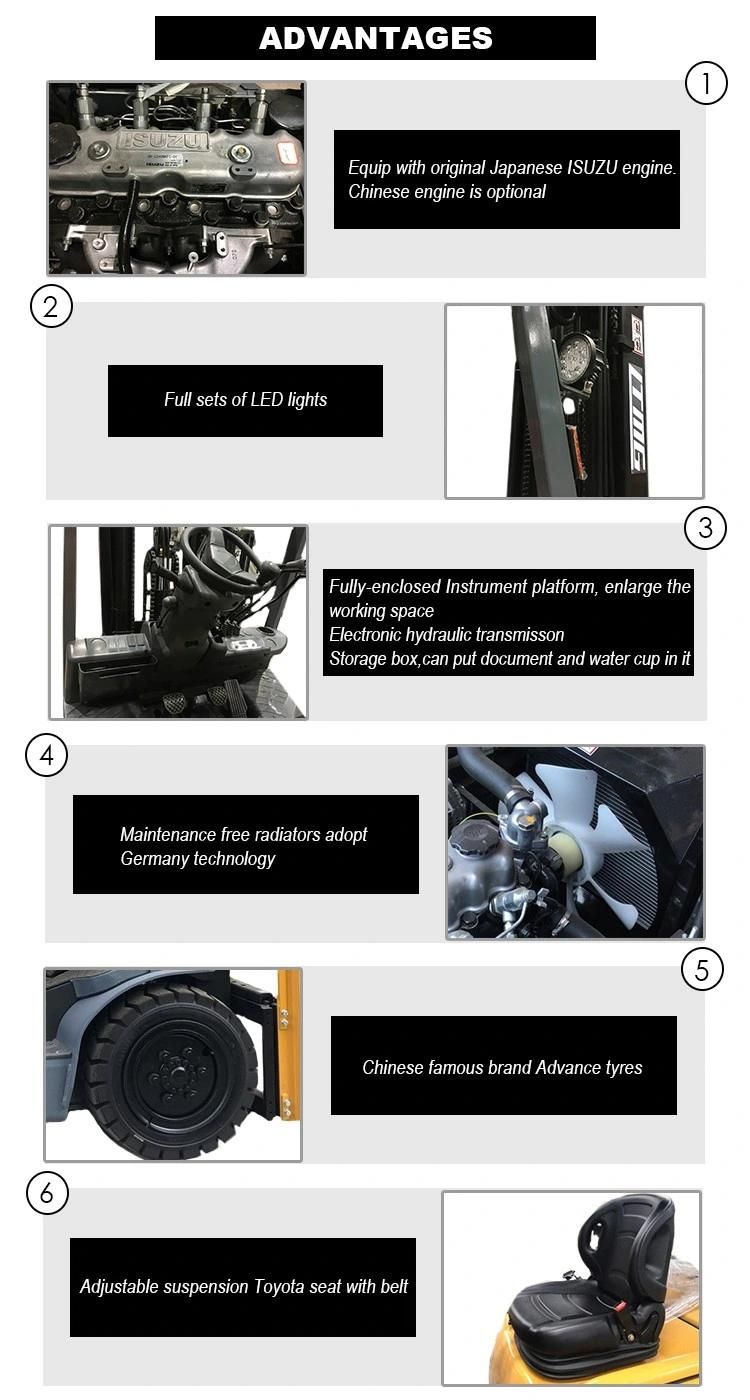

Product Features
1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:Middle muffler, more environmental.
6.High technology:Maintenance free radiators adopt Germany technology.

After sales service

LTMG always treat after-sale service as important as the product quality.

LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.

LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

FAQ


1.What the Certificate do you have?

LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

2.Can you customize and design as the clients' requirement?

LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.

3.How long is the warranty of your products?

Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?

With the authorization of the brand, we can OEM for our clients.

5.What's the payment terms do you accept?

On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics waysd we can work for shipment ?

We can ship construction machinery by various transportation tools.

1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.

2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.

3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:

Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
