• Model NO.：FEP20
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Weight：520kg
• Fork Size：1150mm*160mm*60mm
• Lifting Height：120mm
• Overall Length：1815mm,1885mm
• Color：Customize
• Operating Type：Walkle,Stand on
• Wheel Base：1480
• Max.Fork Lifting Height：205mm
• Max.Lifting Height：120mm
• Transport Package：Container
• Specification：1815mm*726mm*1323mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

FULL ELECTRIC PALLET TRUCKMODELItemSpecificationUnitFEP201GeneralRated capacityKg20002Load center mm6003Drive type Standed4Motor brake  Electromagnetic5Load distance (centerline of front axle to front face of forks)mm963/10336Battery weightKg1857Self weight (with battery)Kg5208Full Load per Axle - Driving side / bearing sideKg1040/14809Empty Load per Axle -  Driving side / bearing sideKg405/11510DimensionsLifting Height (standard)mm12011Fork min. ground clearancemm8512Adjust width of fork (standard)mm540/68513Fork sizemm60/160/115014Minimum ground clearancemm2515Overall lengthmm1815/188516Overall widthmm72617Overall height (including handle )mm132318Bodywork heightmm74519Wheel tread (front/rear)mm540/38020Supporting wheel treadmm136821Minimum turning radiusmm164022Stacking right angle aisle width (1200mm pallet)mm210523PerformanceMax. driving speed (full)Km/h524Max. driving speed (empty)Km/h5.225Max. lifting speed (full)mm/s2726Max. lifting speed (empty)mm/s3527Max. declining speed (full)mm/s4228Max. declining speed (empty)mm/s2729Gradeability  full/empty%10/1630Steering angle°18031Sound level at the driver's eardB(A)<7032WheelWheels material Polyurethane33Wheel number (front/rear) 4/334Drive wheel (mm)mmφ230X7535Load wheel (mm)mmφ74X7036Balance wheel (mm)mmφ100X4037Power and ControlTravel motorKW1.538Lift motorKW0.839VoltageV2440Battery capacityAh21041Power Electric
Product Features
 1.Germany system technology of warehousing equipment and leading international level.
2. The product with the principle of human engineering, fully humanized design.

3. The equipment using the German imports of seal, bearing and electrical components,further to ensure the reliability of the vehicle.

4. Using USA or Italy electronic assembly control, the German import control handle and Italy Metalrota driving wheel,and fully guarantee the stability of vehicle.

5. With strict accordance of ISO9000 and CE standards for product development and production,ensure product quality.

6. Flexible and convenient operation, energy saving and environmental protection, vehicle low noise,stable operation, high safety coefficient.

7. Large capacity of traction battery for vehicles, and fully guarantee the continuous working time.

8. All sold products enjoy a high quality after sale service, ensure the spare parts supply timely,authenticity and continuity, to solve customer any worry from the later period.


After sales service

Nowadays more than 100 agents around the world can supply Ltmg professional after-sale service.
All the product of Ltmg supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

Shipping & Package

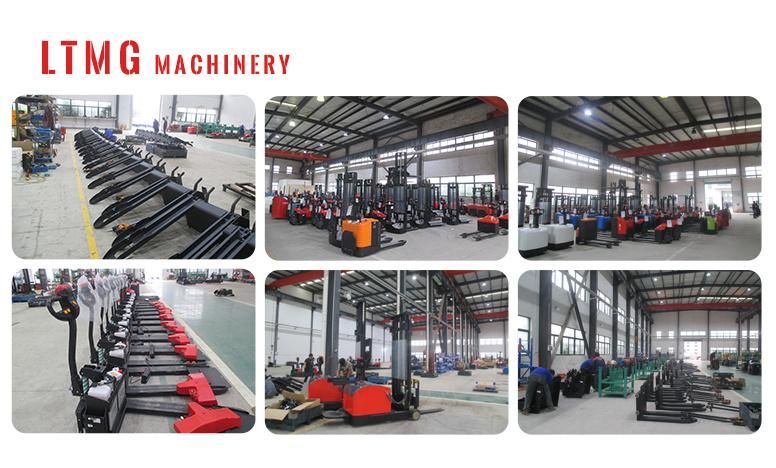

Factory

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
