Ltmg 1.5 Ton Mini Hydraulic Manual Forklift with Diesel Engine

XIAMEN LTMG CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：>500mm

Base Info

  • Model NO.：FD15
  • Lift height：3000~5000mm
  • Condition：New
  • Product Name：Ltmg 1.5 Ton New Mini Diesel Truck Forklift
  • Fork Size：1220*150*60mm
  • Engine：Isuzu 6bg1 or Mitsubishi S6s
  • Tire：Pneumatic
  • Turning Radius：2865mm
  • Service Weight：2490kg
  • Wheelbase：1400mm
  • Gradeability：25%
  • Speed：15km,H
  • Min.Ground Clear：100mm
  • Turning Radius(Outside)：2865mm
  • Load Centre：500mm
  • Rated Power：52kw,2300rpm
  • Transport Package：Container
  • Specification：3183mm*1485mm*2390mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：800sets,Year

Description

Manufacturer   LTMGModel Power shift T/M                      FD15Manual shift T/M                      FD15Load capacity  kg1500Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm920*100*35Tilt range  Mast forward/backwarddeg6/12Overall length(without fork)                   mm2705Total width  mm1225Mast height (fork lowering)                  mm2075Overall height fork raised                    With backrest  mm4250Height to head guard                           mm2140Turning radius(outside)                            mm2445Front face of fork to front axle                 mm480Min. right angle stacking aisle               without load length&clearance mm2925Speed Max Travelling full/no load km/h18/19.5Lifting full/no load mm/s450/500Lowering full/no load  mm/s450/450Max.drawbar pull                                   Power shift T/M full/no load    kg1500/1000Manual shift T/M full/no load       kg1550/1000Gradeability at 1.6km/hPower shift T/M full/no load                    %18/20Manual shift T/M full/no load           %18/20Truck weight kg4380Weight  distribution                             Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 6.50-10-10PRrear axle5.00-8-10PRWheelbase  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast) mm120Framemm135Brake Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backwardPower shift T/M                1-1 power shift T/M

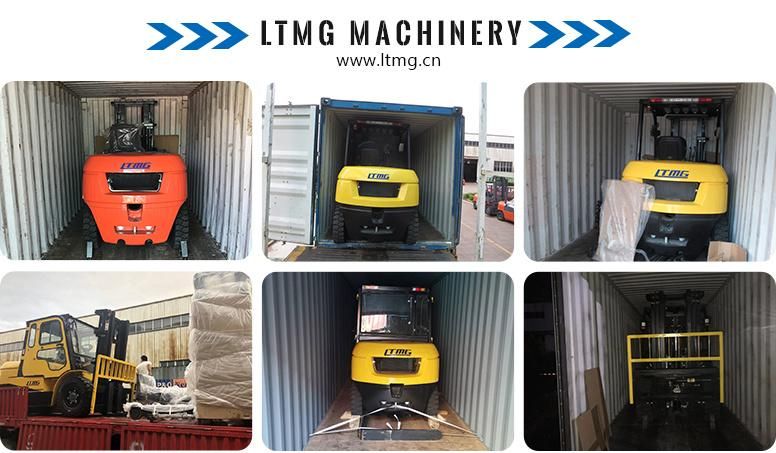

Packing and Shipping:

Ltmg 1.5 Ton Mini Hydraulic Manual Forklift with Diesel Engine

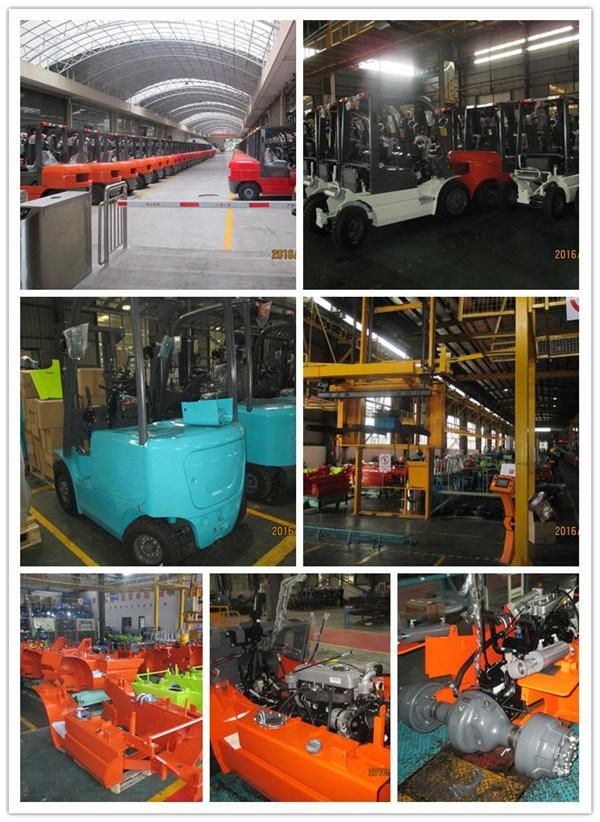

Our Factory:

Ltmg 1.5 Ton Mini Hydraulic Manual Forklift with Diesel Engine

Our customers:

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

Ltmg 1.5 Ton Mini Hydraulic Manual Forklift with Diesel Engine


After sales service:



Ltmg 1.5 Ton Mini Hydraulic Manual Forklift with Diesel Engine


FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time?
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
